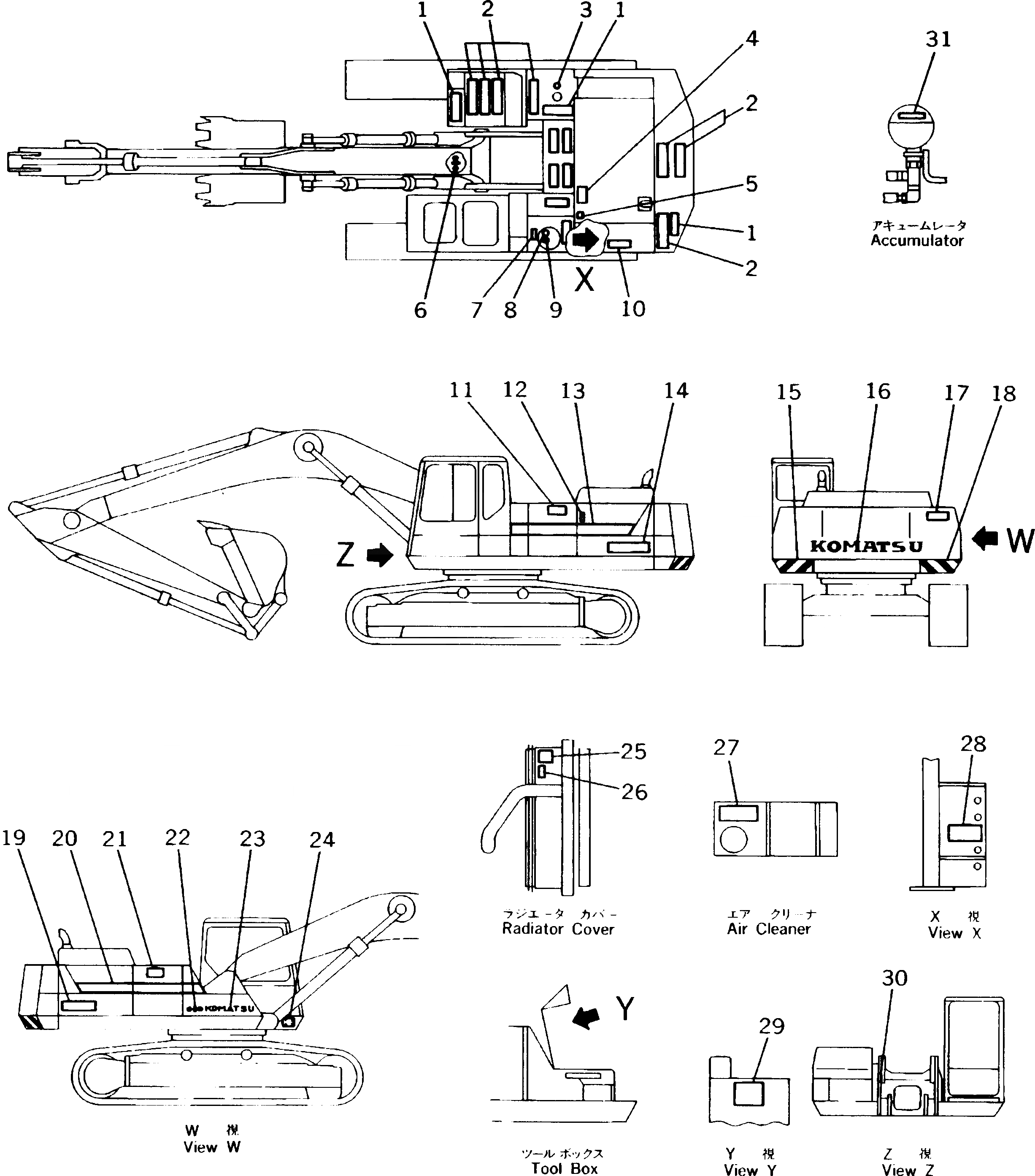

Запчасти Komatsu PC300LC-5K МАРКИРОВКА (ШАССИ) (ПОРТУГАЛ.) (СПЕЦ-Я TBG)(№K-K) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

205-54-76511

SEAT

2

21T-54-11620

SEAT

3

09652-30121

PLATE¤ CAUTION

4

207-00-K1120

STRIPE

5

09667-03000

PLATE¤ SAFETY

6

207-00-31630

PLATE¤ MARK

7

09653-03000

PLATE¤ SAFETY

8

09669-00003

PLATE¤ CAUTION

9

20X-98-19130

PLATE¤ CAUTION

10

154-54-23260

SEAT

11

205-00-K1160

PLATE¤ SAFETY

12

205-00-73360

PLATE¤ OPERATING

13

20Y-00-K1770

PLATE¤ MARK

14

207-00-51110

PLATE¤ MARK,PC300

|14

207-00-51120

PLATE¤ MARK,PC300LC

|14

207-00-58120

PLATE¤ MARK,PC300NLC

15

207-00-K1110

STRIPE,L.H.

16

205-00-K1310

PLATE¤ MARK,KOMATSU

17

20Y-00-K1530

PLATE¤ CAUTION

18

207-00-K1120

STRIPE,R.H.

19

207-00-51110

PLATE¤ MARK,PC300

|19

207-00-51120

PLATE¤ MARK,PC300LC

|19

207-00-58120

PLATE¤ MARK,PC300NLC

20

20Y-00-K1760

PLATE¤ MARK

21

205-00-K1160

PLATE¤ SAFETY

22

09694-50160

PLATE¤ MARK

23

09690-50500

PLATE¤ MARK

24

205-00-K1110

PLATE¤ NAME

|24

205-00-72430

RIVET

25

09650-30104

PLATE¤ INSTRUCTION

26

09668-03000

PLATE¤ SAFETY

27

09637-30661

PLATE¤ INSTRUCTION

28

208-00-11840

PLATE¤ CAUTION

29

207-00-K1130

CHART¤ OIL

30

09685-00002

PLATE¤ OPERATING,OVERLOAD

31

205-00-71441

PLATE¤ SAFETY
