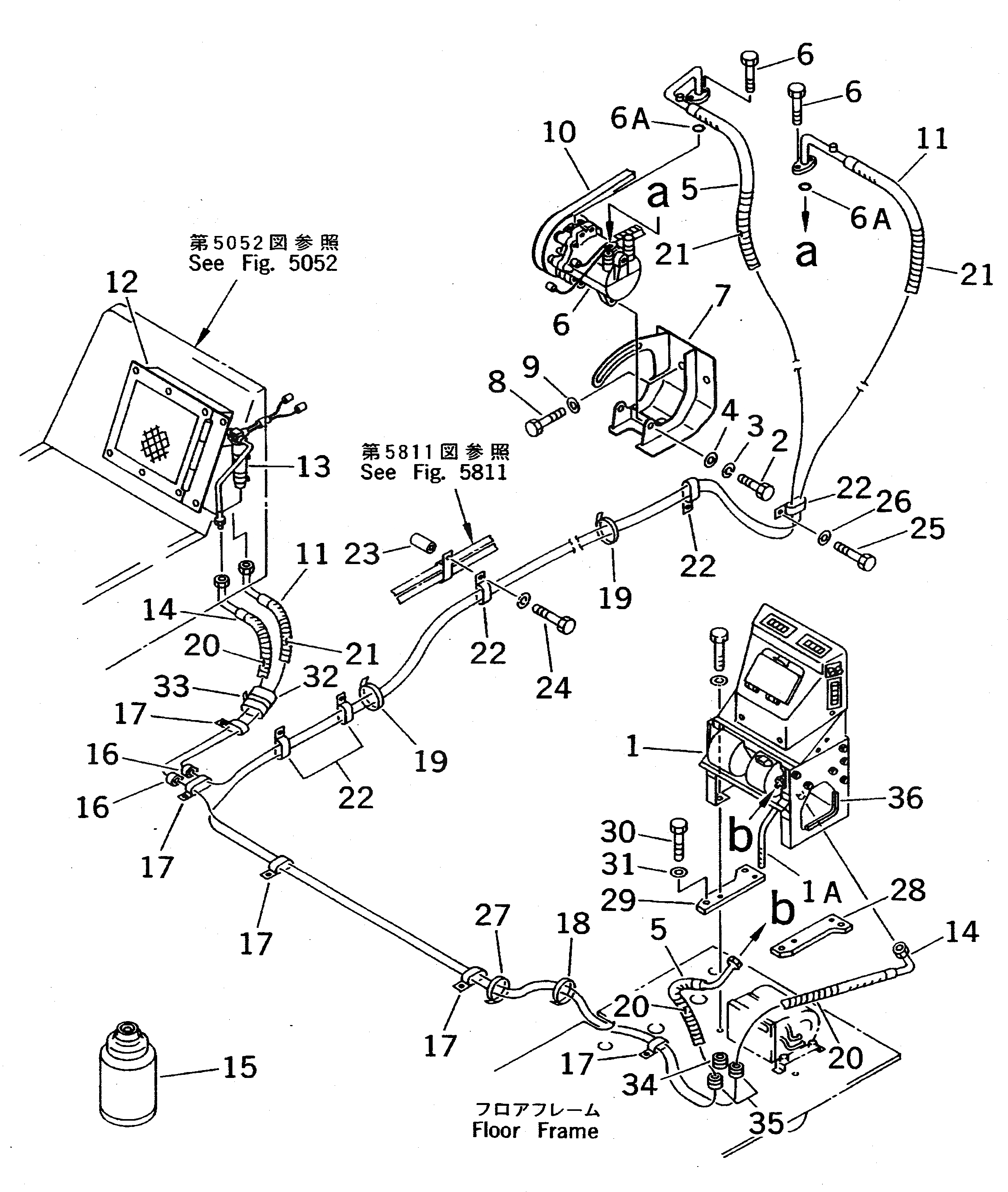

Запчасти Komatsu PC300LC-5 CAR ОХЛАДИТЕЛЬ И ТРУБЫ(№-9) ЧАСТИ КОРПУСА

1

20Y-978-1101

COOLER ASS'Y

1A

20Y-978-1240

HOSE ASS'Y

2

01010-51030

BOLT

3

01602-21030

WASHER,SPRING

4

01643-31232

WASHER

5

207-978-5171

HOSE

6

20Y-978-1120

COMPRESSOR

|6

TW7041-0180

SWITCH

6A

07000-02016

O-RING

7

207-978-5140

BRACKET

8

01010-51230

BOLT

9

01643-31232

WASHER

10

207-978-5150

V-BELT

11

207-978-5161

HOSE

12

207-978-5201

CONDENSER ASS'Y

13

20Y-978-1111

RECEIVER

14

207-978-5181

HOSE

15

202-981-1370

DRUM

|16

20Y-978-1190

PIPING KIT

16

CJPC58113

BUSHING

17

CJ033-3726

CLAMP

18

CJPC09114B

BAND

19

CJPC09114C

BAND

20

CJPC58224

TUBE

21

CJPC58360

TUBE

22

141-06-11220

CLIP

23

11T-27-11180

SPACER

24

01010-51270

BOLT

25

01010-51225

BOLT

26

01643-31232

WASHER

27

08034-00519

BAND

28

207-978-5230

PLATE

29

207-978-5240

PLATE

30

01010-51235

BOLT

31

01643-31232

WASHER

32

205-62-53780

COVER

33

08034-00834

BAND

34

20Y-977-1130

GROMMET

35

207-978-5190

GROMMET

36

20Y-06-11580

SEAL (BONDED)
