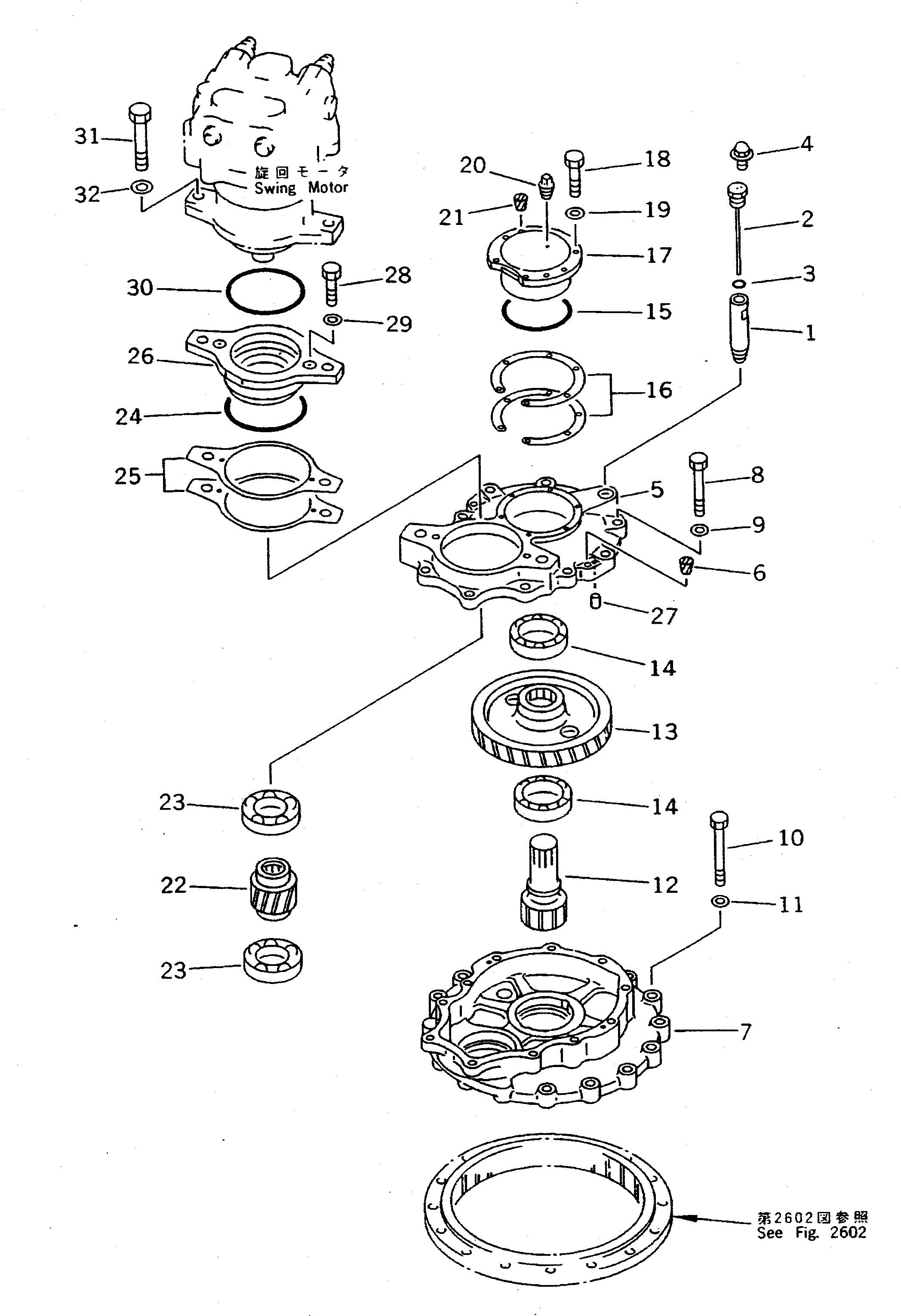

Запчасти Komatsu PC300LC-5 МЕХАНИЗМ ПОВОРОТА (/) ПОВОРОТН. СИСТЕМА

1

207-26-54270

FILLER

2

207-26-54431

GAUGE

2

207-26-54430

GAUGE

3

07000-03025

O-RING

4

205-26-71680

BREATHER

|$5

207-26-00100

SWING MACHINERY A.

5

207-26-54111

COVER

6

07049-01620

PLUG

7

207-26-54121

COVER

8

01010-51660

BOLT

9

01643-31645

WASHER

10

01011-51605

BOLT

11

01643-31645

WASHER

12

207-26-54280

GEAR

13

207-26-54151

GEAR

14

06002-32919

BEARING,ROLLER

15

07000-05145

O-RING

16

207-26-00120

SHIM ASS'Y

16

SHIM, 0.4MM

16

SHIM, 0.5MM

16

SHIM, 0.6MM

16

SHIM, 0.7MM

16

SHIM, 0.8MM

17

207-26-54310

CAGE

18

01010-51035

BOLT

19

01643-31032

WASHER

20

07042-30108

PLUG

21

07049-01012

PLUG

22

207-26-54141

GEAR

23

06002-30214

BEARING,ROLLER

24

07000-05175

O-RING

25

207-26-00110

SHIM ASS'Y

25

SHIM, 0.4MM

25

SHIM, 0.5MM

25

SHIM, 0.6MM

25

SHIM, 0.7MM

25

SHIM, 0.8MM

26

207-26-54290

CAGE

27

04020-01228

PIN,DOWEL

28

01010-51035

BOLT

29

01643-31032

WASHER

30

07000-05150

O-RING

31

01010-52495

BOLT

32

01643-32460

WASHER
