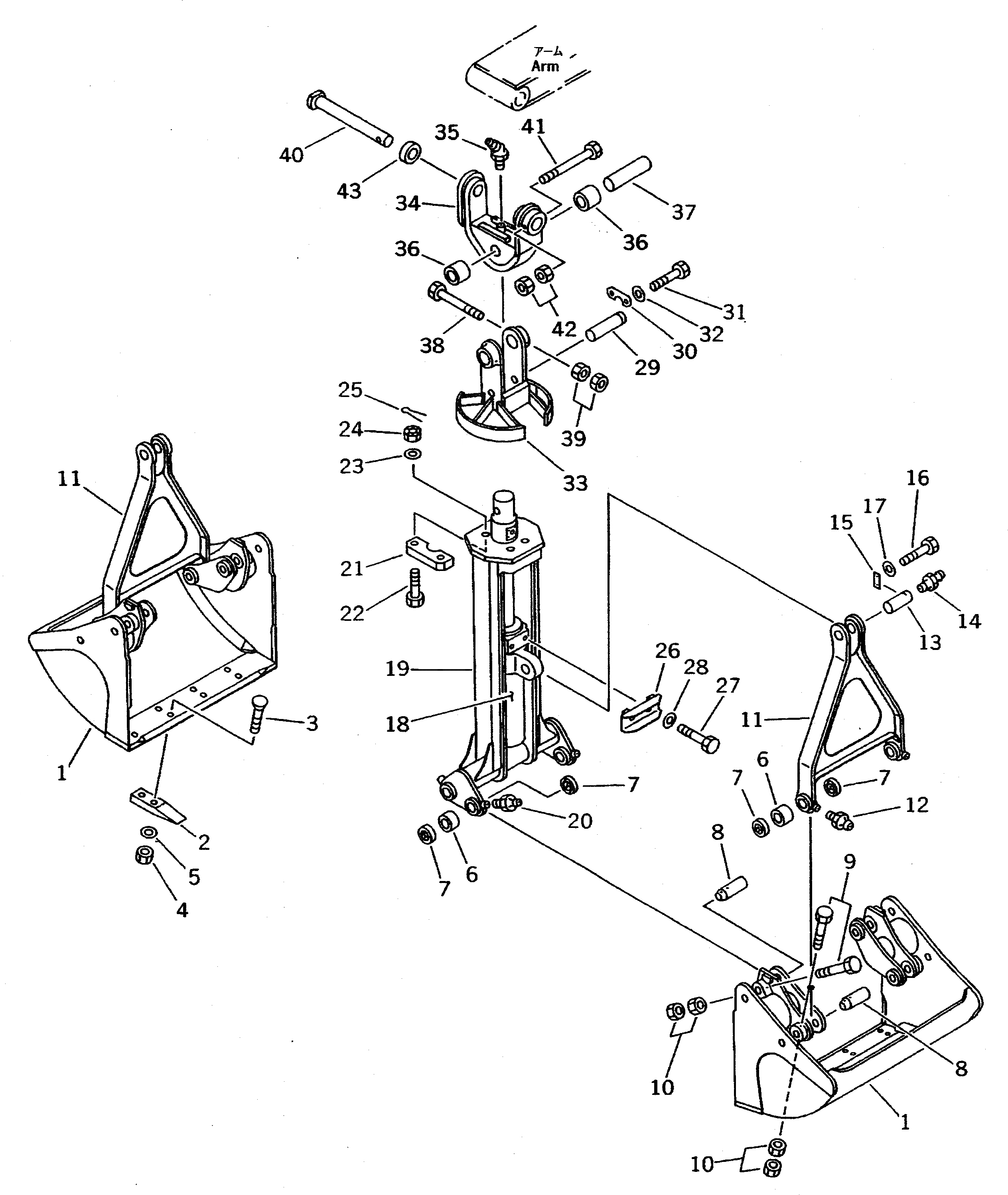

Запчасти Komatsu PC300LC-5 ГРЕЙФЕРН. КОВШ¤ .8M¤ DIGGING ТИП РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

207-931-X110

BUCKET GROUP

1

207-931-1110

BUCKET

2

202-931-1180

TOOTH

3

02090-11285

BOLT

4

02290-11219

NUT

5

01643-32060

WASHER

6

07144-10505

BUSHING

7

07145-00050

SEAL,DUST

8

206-931-1191

PIN

9

01011-51425

BOLT

10

01580-11411

NUT

11

206-931-1151

LINK

12

07020-00000

FITTING,GREASE

13

09241-60150

PIN

14

07020-00000

FITTING,GREASE

15

04082-00212

LOCK

16

01010-51225

BOLT

17

01643-31232

WASHER

18

206-63-96101

CYLINDER ASS'Y

19

206-931-1131

FRAME

20

07020-00000

FITTING,GREASE

21

206-931-1140

PLATE

22

01013-83020

BOLT

23

01643-33080

WASHER

24

01590-13033

NUT

25

04050-16055

PIN,COTTER

26

206-931-1171

SUPPORT

27

01010-51430

BOLT

28

01643-31445

WASHER

29

154-70-16270

PIN

30

154-70-16290

LOCK

31

01010-51435

BOLT

32

01643-31445

WASHER

33

206-931-1120

HANGER

34

207-931-1120

BRACKET

35

07020-00675

FITTING,GREASE

36

205-931-6150

BUSHING

37

205-931-1130

PIN

38

01011-51650

BOLT

39

01580-11613

NUT

40

207-70-33130

PIN

41

207-70-13340

BOLT

42

01580-12419

NUT

43

207-70-34310

COLLAR
