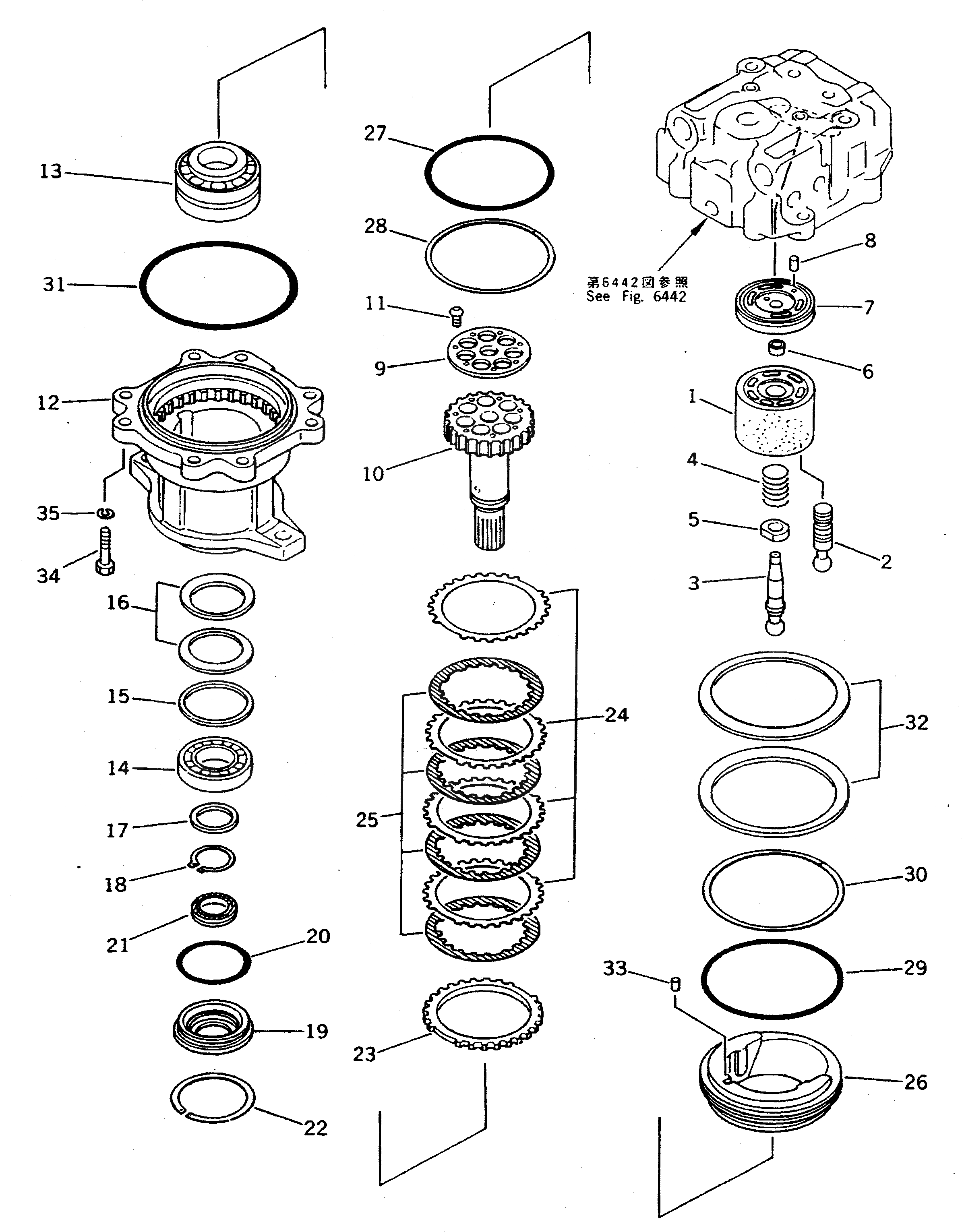

Запчасти Komatsu PC300LC-5 МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

207-60-X1120

SWING MOTOR GROUP

|$2

706-77-01150

SWING MOTOR ASS'Y

1

706-77-43191

BLOCK,CYLINDER

2

706-77-42160

PISTON SUB ASS'Y

3

706-77-42081

SHAFT,CENTER

4

706-77-42110

SPRING

5

706-77-43130

RING,CENTER

6

706-77-42071

BUSHING

7

706-77-43850

PLATE,VALVE

8

04020-01024

PIN,DOWEL

9

706-77-42260

RETAINER

10

706-77-42861

SHAFT

11

706-75-41271

SCREW

12

706-77-42022

CASE,BRAKE

13

706-77-42881

BEARING

14

706-77-42890

BEARING

15

706-77-42041

SEAT

16

706-77-42051

SPRING

17

706-77-42440

SPACER, 2.3MM

17

706-77-42450

SPACER, 2.5MM

17

706-77-42460

SPACER, 2.7MM

18

04064-06525

RING,SNAP

19

706-77-42060

COVER

20

07000-02115

O-RING

21

706-77-43950

SEAL,OIL

22

04071-00130

RING,SNAP

23

706-77-91331

PLATE

24

706-77-91341

PLATE

25

706-77-91350

DISC

26

706-77-91490

PISTON,BRAKE

27

07000-15200

O-RING

28

07001-05200

RING,BACK-UP

29

07000-15220

O-RING

30

07001-05220

RING,BACK-UP

31

07000-05250

O-RING

32

706-77-91410

SPRING

33

706-75-42830

PIN,DOWEL

34

01010-51860

BOLT

35

01602-21854

WASHER,SPRING
