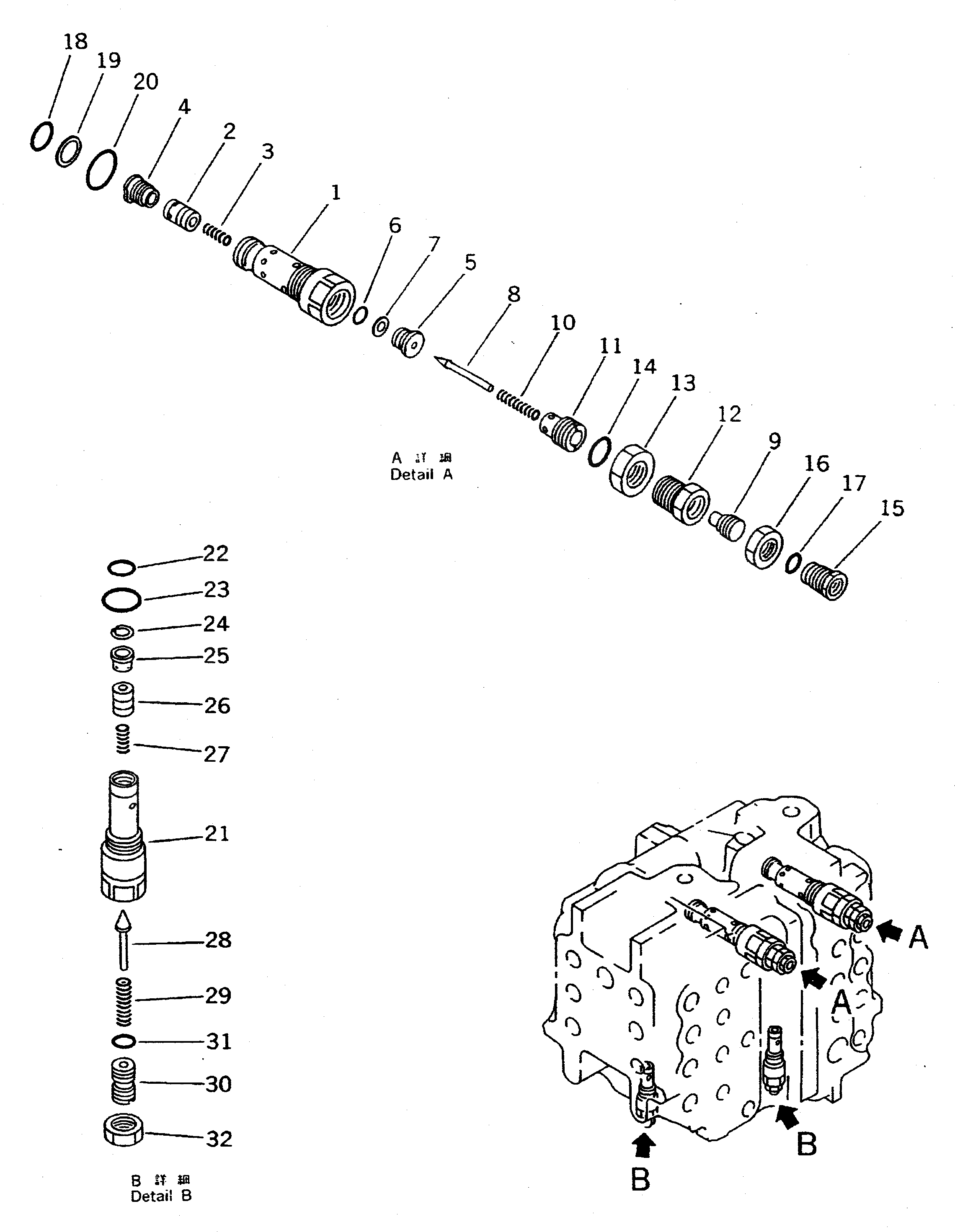

Запчасти Komatsu PC300LC-5 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-99-13104

CONTROL VALVE ASS'Y

|$1

709-99-13103

CONTROL VALVE ASS'Y

|$2

709-99-13102

CONTROL VALVE ASS'Y

|$4

709-90-52202

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

SPRING

4

PLUG

5

SEAT

6

O-RING

7

RING,BACK-UP

8

700-80-61190

POPPET

9

RETAINER

10

709-20-51231

SPRING

11

SLEEVE

12

HOLDER

13

700-90-51190

NUT

14

07002-03034

O-RING

15

709-70-51150

PLUG

16

07239-12410

NUT

17

07000-02018

O-RING

18

700-93-11320

O-RING

19

700-93-11330

RING,BACK-UP

20

07002-03634

O-RING

|$25

709-90-59400

VALVE ASS'Y

21

SLEEVE

22

700-22-11410

O-RING

23

07002-02434

O-RING

24

700-20-51550

RING,SNAP

25

700-20-51540

RETAINER

26

VALVE

27

709-70-51210

SPRING

28

709-70-51420

POPPET

29

700-20-51620

SPRING

30

700-20-51340

SCREW

31

07000-02011

O-RING

32

01582-11411

NUT
