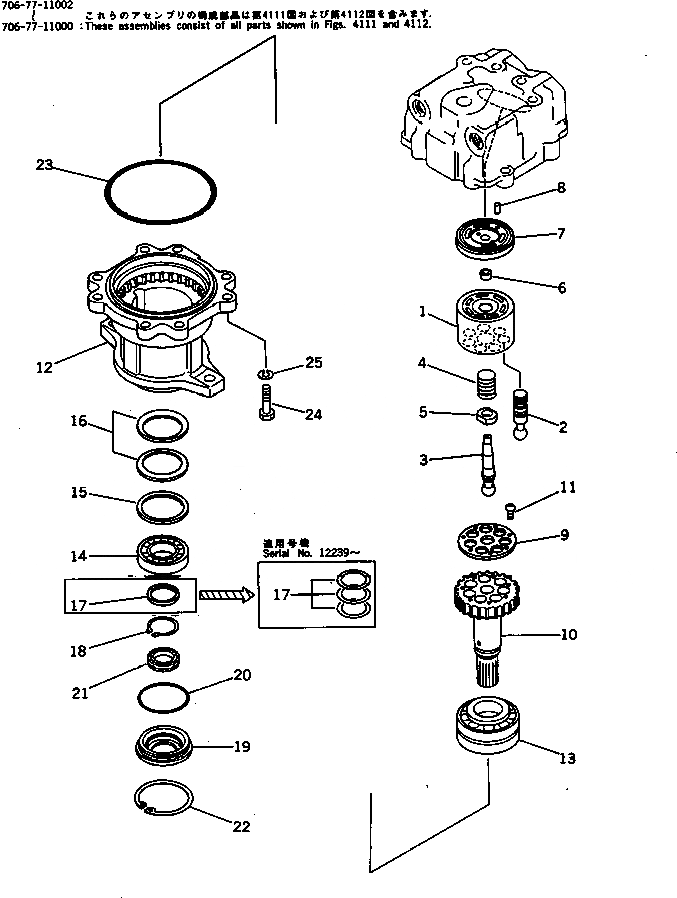

Запчасти Komatsu PC300LC-3 МОТОР ПОВОРОТА (/) (БЕЗ ПОВОРОТН. МЕХАНИЧ. ТОРМОЗ.) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|$0

706-77-11002

MOTOR ASS'Y

|$1

706-77-11001

MOTOR ASS'Y

|$2

706-77-11000

MOTOR ASS'Y

|$3

706-77-42190

BLOCK,CYLINDER

1

706-87-40091

BLOCK,CYLINDER

2

706-77-42160

PISTON SUB ASS'Y

3

706-77-42081

SHAFT,CENTER

4

706-77-42110

SPRING

5

706-77-43130

RING,CENTER

6

706-77-42071

BUSHING

7

706-77-42830

PLATE,VALVE

7

706-77-42851

PLATE,VALVE

8

04020-01024

PIN,DOWEL

9

706-77-42260

RETAINER

10

706-77-42861

SHAFT,DRIVE

10

706-77-42860

SHAFT,DRIVE

11

706-75-41271

SCREW

12

706-77-43021

CASE,BRAKE

12

706-77-43020

CASE,BRAKE

13

706-77-42881

BEARING

13

706-77-42880

BEARING

14

706-77-42890

BEARING

15

706-77-42041

SEAT

15

706-77-42040

SEAT

16

706-77-42051

SPRING

16

706-77-42050

SPRING

17

706-77-05010

SPACER KIT

17

SPACER, 2.3MM

17

SPACER, 2.5MM

17

SPACER, 2.7MM

17

706-77-42030

SPACER

18

04064-06525

RING,SNAP

19

706-77-42060

COVER

20

07000-02115

O-RING

21

706-77-42920

SEAL,OIL

22

04071-00130

RING,SNAP

23

07000-05250

O-RING

24

01010-51860

BOLT

25

01602-21852

WASHER,SPRING
