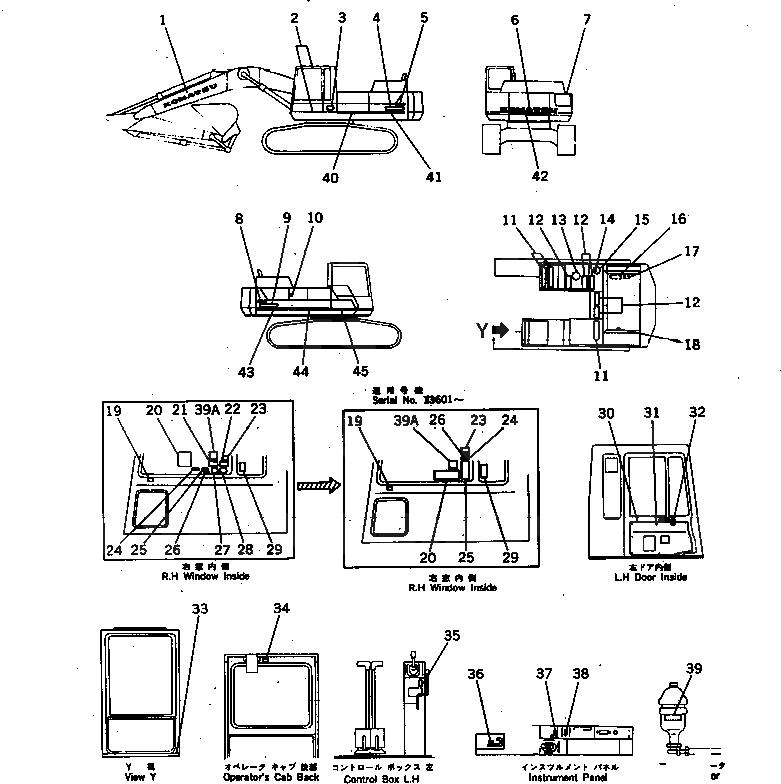

Запчасти Komatsu PC300LC-3 МАРКИРОВКА(ДЛЯ WRIST УПРАВЛ-Е)(АНГЛ.)(KSP СПЕЦ-Я.)(W/O АВТОМАТИЧ. DECEL.¤ПОВОРОТН. MECHA.ТОРМОЗ.¤W/-STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

207-00-31320

PLATE, MARK,KOMATSU

2

205-00-63770

PLATE

3

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

3

205-00-72430

RIVET

3

205-00-71540

SCREW

4

207-00-34120

PLATE, MARK,PC300LC

5

205-00-71240

PLATE, MARK,SYMBOL

6

207-00-31111

PLATE, MARK,KOMATSU

7

09133-03000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

8

205-00-71240

PLATE, MARK,SYMBOL

9

207-00-34120

PLATE, MARK,PC300LC

10

205-00-73360

PLATE, OPERATING,HYDRAULIC OIL TANK

11

21T-54-11620

SEAT,NONSKID

12

154-54-23260

SEAT,NONSKID

13

09669-00002

PLATE, CAUTION,FUEL TANK

14

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

15

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

16

09650-30103

PLATE, INSTRUCTION,RADIATOR

17

09668-03000

PLATE, SAFETY,RADIATOR CAP

18

09667-02000

PLATE, SAFETY

19

205-00-63360

PLATE, CAUTION

20

205-00-66110

PLATE, OPERATING

21

205-00-65280

PLATE

22

205-00-65260

PLATE

23

207-00-31340

PLATE, CAUTION

24

205-00-76230

PLATE

25

205-00-73380

PLATE, SAFETY

25

09651-03000

PLATE, SAFETY,BEFORE OPERATING

26

09131-03000

PLATE, SAFETY,SWING LOCK LEVER

27

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

28

205-00-63390

PLATE, CAUTION

29

205-00-71570

PLATE, CAUTION

30

207-54-33150

COVER

31

205-54-72350

CLIP ASS'Y

32

205-00-71340

PLATE, OPERATING

33

205-54-76480

PLATE

34

205-00-63350

PLATE, CAUTION

35

09685-00002

PLATE, OPERATING,SAFETY LOCK LEVER

36

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

37

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

38

09683-30060

PLATE, OPERATING,STARTING SWITCH

39

205-00-71441

PLATE, SAFETY

39

205-00-71440

PLATE

39A

205-00-71940

PLATE

40

207-00-31150

LINE, STRIPE, 1054MM,(SERVICE PARTS)

41

207-00-31160

LINE, STRIPE, 1294MM,(SERVICE PARTS)

42

207-00-31210

LINE, STRIPE, 4200MM,(SERVICE PARTS)

43

207-00-31170

LINE, STRIPE, 1109MM,(SERVICE PARTS)

44

207-00-31180

LINE, STRIPE, 1406MM,(SERVICE PARTS)

45

207-00-31190

LINE, STRIPE, 831MM,(SERVICE PARTS)
