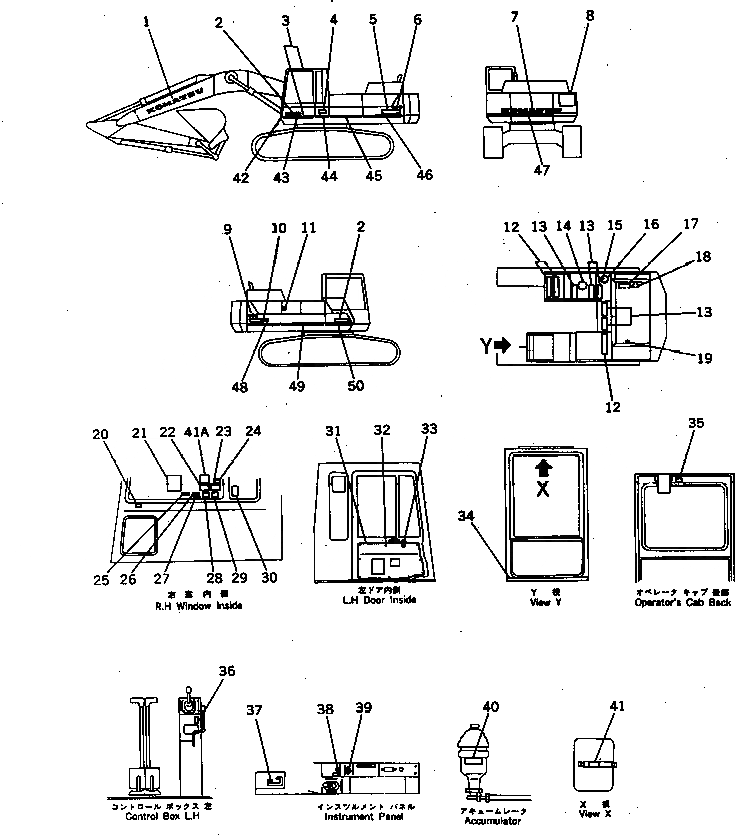

Запчасти Komatsu PC300LC-3 МАРКИРОВКА(КИТАЙ)(ДЛЯ WRIST УПРАВЛ-Е)(БЕЗ АВТОМАТИЧ. DECEL.¤ ПОВОРОТН. MECHA.ТОРМОЗ.)(С -STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

207-00-31320

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-91643

PLATE, NAME,(LIMITED SUPPLY)

4

205-00-72430

RIVET

4

205-00-71540

SCREW

5

207-00-31230

PLATE, MARK,PC300LC

6

205-00-71240

PLATE, MARK,SYMBOL

7

207-00-31111

PLATE, MARK,KOMATSU

8

09133-09000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

205-00-71240

PLATE, MARK,SYMBOL

10

207-00-31230

PLATE, MARK,PC300LC

11

205-00-73360

PLATE, OPERATING,HYDRAULIC OIL TANK

12

21T-54-11620

SEAT,NONSKID

13

154-54-23260

SEAT,NONSKID

14

09669-00002

PLATE, CAUTION,FUEL TANK

15

09653-09000

PLATE, SAFETY,HYDRAULIC TANK CAP

16

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

17

09650-90103

PLATE, INSTRUCTION,RADIATOR

18

09668-09000

PLATE, SAFETY,RADIATOR CAP

19

09667-09000

PLATE, SAFETY

20

20D-00-12540

PLATE

21

205-00-66110

PLATE, OPERATING

22

09649-09001

PLATE, INSTRUCTION

23

20D-00-12660

PLATE

24

207-00-31430

PLATE

25

205-00-71970

PLATE

26

09651-09000

PLATE, SAFETY,BEFORE OPERATING

27

09131-09000

PLATE, SAFETY,SWING LOCK LEVER

28

09173-09000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

29

20D-00-12590

PLATE, CAUTION

30

205-00-71980

PLATE, CAUTION

31

207-54-33260

COVER

32

205-54-72350

CLIP ASS'Y

33

205-00-71340

PLATE, OPERATING

34

205-54-76480

PLATE

35

20D-00-12530

PLATE

36

09685-00002

PLATE, OPERATING,SAFETY LOCK LEVER

37

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

38

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

39

09683-90060

PLATE, OPERATING,STARTING SWITCH

40

205-00-71990

PLATE

41

203-00-31410

PLATE, SAFETY

41A

205-00-71930

PLATE

42

205-00-71530

LINE, STRIPE, 50M

42

205-00-73270

LINE, STRIPE, 46MM,(SERVICE PARTS)

43

205-00-71120

LINE, STRIPE, 1030MM,(SERVICE PARTS)

44

205-00-71130

LINE, STRIPE, 476MM,(SERVICE PARTS)

45

207-00-31150

LINE, STRIPE, 1054MM,(SERVICE PARTS)

46

207-00-31160

LINE, STRIPE, 1294MM,(SERVICE PARTS)

47

207-00-31210

LINE, STRIPE, 4200MM,(SERVICE PARTS)

48

207-00-31170

LINE, STRIPE, 1109MM,(SERVICE PARTS)

49

207-00-31180

LINE, STRIPE, 1406MM,(SERVICE PARTS)

50

207-00-31190

LINE, STRIPE, 831MM,(SERVICE PARTS)
