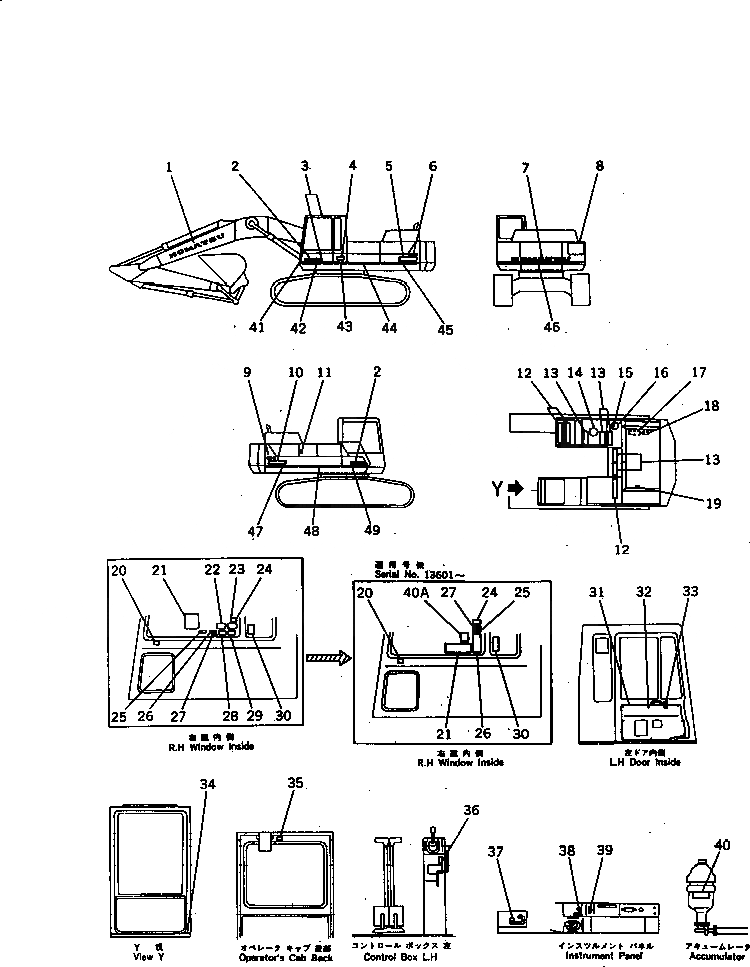

Запчасти Komatsu PC300LC-3 МАРКИРОВКА(АНГЛ.)(ДЛЯ WRIST УПРАВЛ-Е)(БЕЗ DECEL.¤ПОВОРОТН. MECHA.BEAKE)(С -STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

207-00-31320

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

4

205-00-72430

RIVET

4

205-00-71540

SCREW

5

207-00-31230

PLATE, MARK,PC300LC

6

205-00-71240

PLATE, MARK,SYMBOL

7

207-00-31111

PLATE, MARK,KOMATSU

8

09133-03000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

205-00-71240

PLATE, MARK,SYMBOL

10

207-00-31230

PLATE, MARK,PC300LC

11

205-00-73360

PLATE, OPERATING,HYDRAULIC OIL TANK

12

21T-54-11620

SEAT,NONSKID

13

154-54-23260

SEAT,NONSKID

14

09669-00002

PLATE, CAUTION,FUEL TANK

15

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

16

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

17

09650-30103

PLATE, INSTRUCTION,RADIATOR

18

09668-03000

PLATE, SAFETY,RADIATOR CAP

19

09667-03000

PLATE, SAFETY

20

205-00-63360

PLATE, CAUTION

21

205-00-66110

PLATE, OPERATING

22

205-00-65280

PLATE

23

205-00-65260

PLATE

24

207-00-31340

PLATE, CAUTION

25

205-00-76230

PLATE

26

205-00-73380

PLATE, SAFETY

26

09651-03000

PLATE, SAFETY,BEFORE OPERATING

27

09131-03000

PLATE, SAFETY,SWING LOCK LEVER

28

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

29

205-00-63390

PLATE, CAUTION

30

205-00-71570

PLATE, CAUTION

31

207-54-33150

COVER

32

205-54-72350

CLIP ASS'Y

33

205-00-71340

PLATE, OPERATING

34

205-54-76480

PLATE

35

205-00-63350

PLATE, CAUTION

36

09685-00002

PLATE, OPERATING,SAFETY LOCK LEVER

37

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

38

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

39

09683-30060

PLATE, OPERATING,STARTING SWITCH

40

205-00-71441

PLATE, SAFETY

40

205-00-71440

PLATE

40A

205-00-71940

PLATE

41

205-00-71530

LINE, STRIPE, 50M

41

205-00-73270

LINE, STRIPE, 46MM,(SERVICE PARTS)

42

205-00-71120

LINE, STRIPE, 1030MM,(SERVICE PARTS)

43

205-00-71130

LINE, STRIPE, 476MM,(SERVICE PARTS)

44

207-00-31150

LINE, STRIPE, 1054MM,(SERVICE PARTS)

45

207-00-31160

LINE, STRIPE, 1294MM,(SERVICE PARTS)

46

207-00-31210

LINE, STRIPE, 4200MM,(SERVICE PARTS)

47

207-00-31170

LINE, STRIPE, 1109MM,(SERVICE PARTS)

48

207-00-31180

LINE, STRIPE, 1406MM,(SERVICE PARTS)

49

207-00-31190

LINE, STRIPE, 831MM,(SERVICE PARTS)
