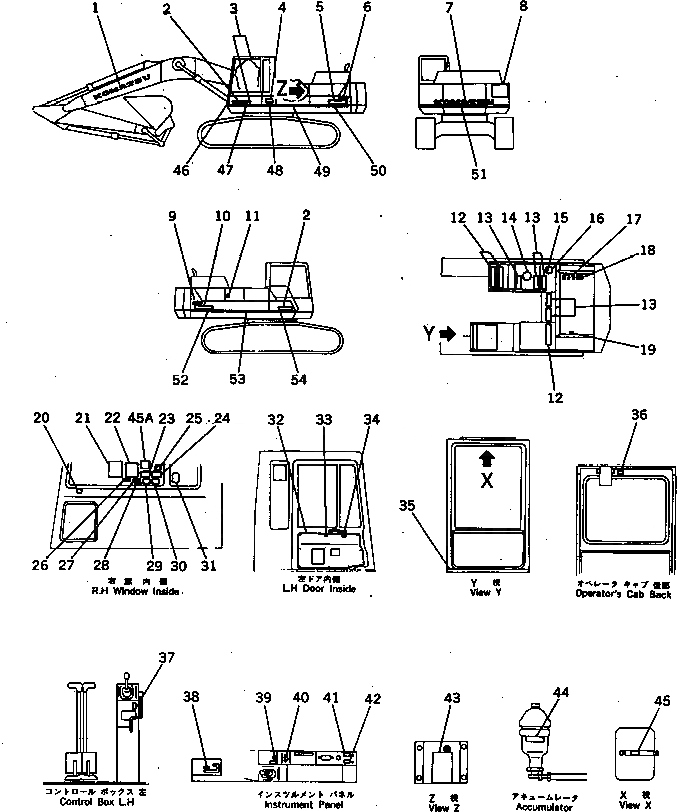

Запчасти Komatsu PC300LC-3 МАРКИРОВКА(ПОРТУГАЛ.-АНГЛ.)(ДЛЯ WRIST УПРАВЛ-Е)(С АВТОМАТИЧ. DECEL.¤ ПОВОРОТН. MECHA. ТОРМОЗ.¤ -STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

207-00-31320

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-22643

PLATE, NAME,(LIMITED SUPPLY)

4

205-00-72430

RIVET

4

205-00-71540

SCREW

5

207-00-31230

PLATE, MARK,PC300LC

6

205-00-71240

PLATE, MARK,SYMBOL

7

207-00-31111

PLATE, MARK,KOMATSU

8

09133-02000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

205-00-71240

PLATE, MARK,SYMBOL

10

207-00-31230

PLATE, MARK,PC300LC

11

205-00-73360

PLATE, OPERATING,HYDRAULIC OIL TANK

12

21T-54-11620

SEAT,NONSKID

13

154-54-23260

SEAT,NONSKID

14

09669-00002

PLATE, CAUTION,FUEL TANK

15

09653-02000

PLATE, SAFETY,HYDRAULIC TANK CAP

16

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

17

09650-21103

PLATE, INSTRUCTION,RADIATOR

18

09668-02000

PLATE, SAFETY,RADIATOR CAP

19

09667-02000

PLATE, SAFETY

20

207-00-13460

PLATE, CAUTION

21

205-00-66110

PLATE, OPERATING

22

205-00-75490

PLATE

23

205-00-65160

PLATE

24

205-00-64230

PLATE

25

207-00-31350

PLATE, CAUTION

26

205-00-71790

PLATE

27

09651-02000

PLATE, SAFETY,BEFORE OPERATING

28

09131-02000

PLATE, SAFETY,SWING LOCK LEVER

29

09173-02000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

30

207-00-13480

PLATE, CAUTION

31

205-00-71650

PLATE, CAUTION

32

207-54-33160

COVER

33

205-54-72350

CLIP ASS'Y

34

205-00-71340

PLATE, OPERATING

35

205-54-76480

PLATE

36

207-00-13450

PLATE

37

09685-00002

PLATE, OPERATING,SAFETY LOCK LEVER

38

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

39

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

40

09683-21060

PLATE, OPERATING,STARTING SWITCH

41

205-00-74240

PLATE, OPERATING,SWING MECHANICAL BRAKE

42

205-00-74250

PLATE, OPERATING,AUTO DECELERATION

43

205-00-75530

PLATE, OPERATING

44

205-00-75540

PLATE

45

207-00-13510

PLATE, SAFETY

45A

205-00-71830

PLATE

|$48

205-00-71530

LINE, STRIPE, 50M

46

205-00-73270

LINE, STRIPE, 46MM,(SERVICE PARTS)

47

205-00-71120

LINE, STRIPE, 1030MM,(SERVICE PARTS)

48

205-00-71130

LINE, STRIPE, 476MM,(SERVICE PARTS)

49

207-00-31150

LINE, STRIPE, 1054MM,(SERVICE PARTS)

50

207-00-31160

LINE, STRIPE, 1294MM,(SERVICE PARTS)

51

207-00-31210

LINE, STRIPE, 4200MM,(SERVICE PARTS)

52

207-00-31170

LINE, STRIPE, 1109MM,(SERVICE PARTS)

53

207-00-31180

LINE, STRIPE, 1406MM,(SERVICE PARTS)

54

207-00-31190

LINE, STRIPE, 831MM,(SERVICE PARTS)
