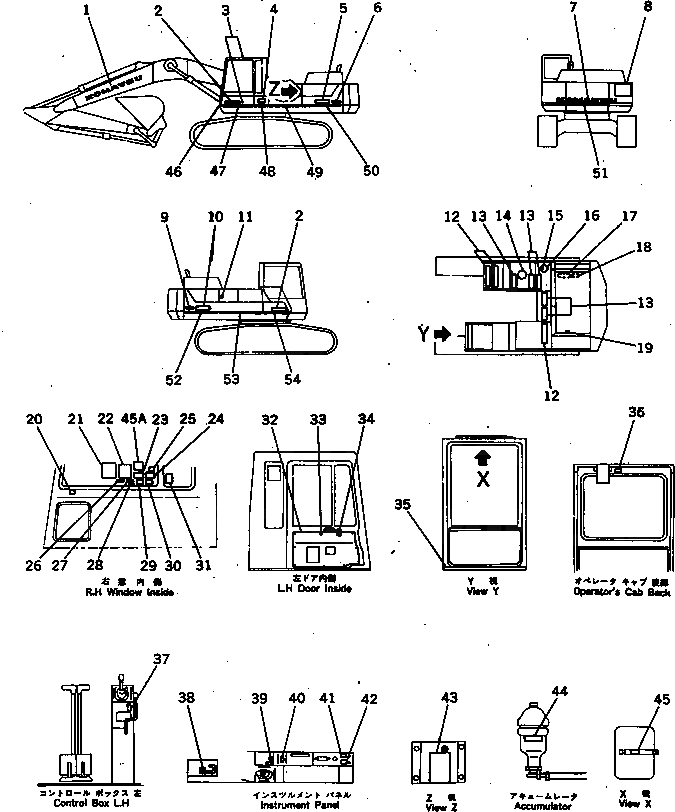

Запчасти Komatsu PC300LC-3 МАРКИРОВКА (АНГЛ.) (ДЛЯ WRIST УПРАВЛ-Е) (С АВТОМАТИЧ. DECEL.¤ ПОВОРОТН. MECHA. ТОРМОЗ.¤ -STAGE)(№9-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
207-00-31320
PLATE, MARK,KOMATSU
2
09690-50500
PLATE, MARK,KOMATSU
3
205-00-63770
PLATE
4
09602-01643
PLATE, NAME,(LIMITED SUPPLY)
4
205-00-72430
RIVET
5
207-00-31230
PLATE, MARK,PC300LC
6
205-00-71240
PLATE, MARK,SYMBOL
7
205-00-73270
LINE, STRIPE, 46MM
8
205-00-71120
LINE, STRIPE, 1030MM
9
205-00-71130
LINE, STRIPE, 476MM
10
207-00-31150
LINE, STRIPE, 1054MM
11
207-00-31160
LINE, STRIPE, 1294MM
12
207-00-31111
PLATE, MARK,KOMATSU
13
09133-03000
PLATE, SAFETY,KEEP OUT OF TURNING AREA
14
207-00-31210
LINE, STRIPE, 4200MM
15
205-00-71240
PLATE, MARK,SYMBOL
16
207-00-31230
PLATE, MARK,PC300LC
17
205-00-73360
PLATE, OPERATING,HYDRAULIC OIL TANK
18
207-00-31170
LINE, STRIPE, 1109MM
19
207-00-31180
LINE, STRIPE, 1406MM
20
207-00-31190
LINE, STRIPE, 831MM
21
21T-54-11620
SEAT,NONSKID
22
154-54-23260
SEAT,NONSKID
23
09669-00002
PLATE, CAUTION,FUEL TANK
24
09653-03000
PLATE, SAFETY,HYDRAULIC TANK CAP
25
09669-00003
PLATE, CAUTION,HYDRAULIC TANK
26
09650-30103
PLATE, INSTRUCTION,RADIATOR
27
09668-03000
PLATE, SAFETY,RADIATOR CAP
28
09667-03000
PLATE, SAFETY
29
205-00-63360
PLATE, CAUTION
30
205-00-66110
PLATE, OPERATING
31
205-00-75340
PLATE
32
207-00-31340
PLATE, CAUTION
33
205-00-76230
PLATE
34
205-00-73380
PLATE, SAFETY,BEFORE OPERATING
35
205-00-71570
PLATE, CAUTION
36
207-54-33150
COVER
37
205-54-72350
CLIP ASS'Y
38
205-00-71340
PLATE, OPERATING
39
205-54-76480
PLATE
40
205-00-63350
PLATE, CAUTION
41
09685-00002
PLATE, OPERATING,SAFETY LOCK LEVER
42
09685-00001
PLATE, OPERATING,SAFETY LOCK LEVER
43
09683-30060
PLATE, OPERATING,STARTING SWITCH
44
207-00-31760
PLATE, OPERATING,SWING MECHANICAL BRAKE
45
207-00-31780
PLATE, OPERATING,AUTO DECELERATION
46
207-00-31390
PLATE
47
205-00-71441
PLATE, SAFETY
47
205-00-71440
PLATE
48
205-00-71820
PLATE
Выбрано товаров: 50
