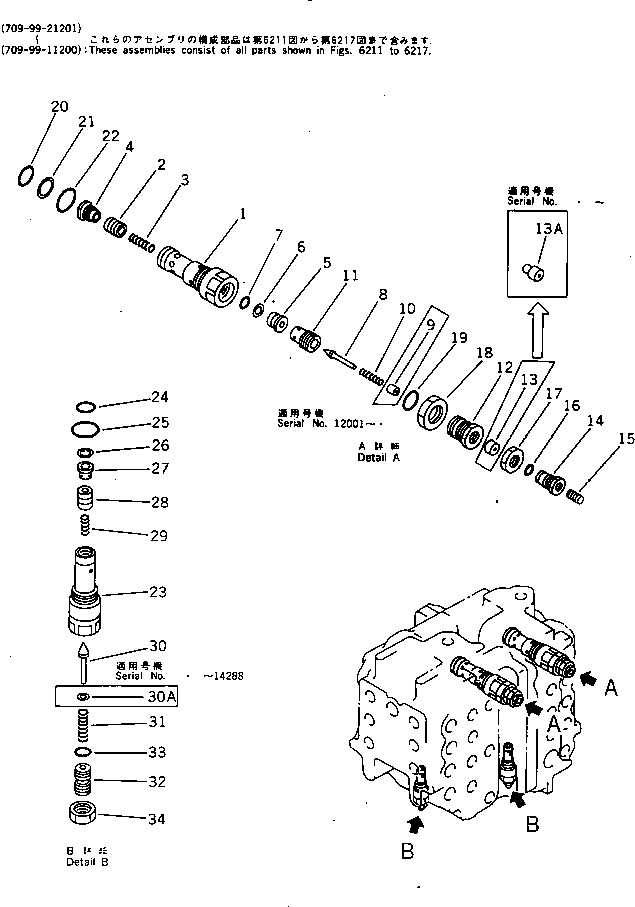

Запчасти Komatsu PC300LC-3 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-99-21201

CONTROL VALVE ASS'Y

|$1

709-99-21200

CONTROL VALVE ASS'Y

|$2

709-99-11209

CONTROL VALVE ASS'Y

|$3

709-99-11208

CONTROL VALVE ASS'Y

|$4

709-99-11207

CONTROL VALVE ASS'Y

|$5

709-99-11205

CONTROL VALVE ASS'Y

|$6

709-99-11204

CONTROL VALVE ASS'Y

|$7

709-99-11203

CONTROL VALVE ASS'Y

|$8

709-99-11202

CONTROL VALVE ASS'Y

|$9

709-99-11201

CONTROL VALVE ASS'Y

|$10

709-99-11200

CONTROL VALVE ASS'Y

|$11

709-90-52100

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

SPRING

4

PLUG

5

SEAT

6

O-RING

7

RING,BACK-UP

8

700-80-61190

POPPET

9

700-80-51240

SPACER

10

709-20-51231

SPRING

10

720-68-15560

SPRING

11

SLEEVE

12

HOLDER

13

709-90-51220

RETAINER

13A

709-90-51270

RETAINER

14

PLUG

15

PISTON

16

07000-02014

O-RING

17

07239-12009

NUT

18

700-90-51190

NUT

19

07002-03034

O-RING

20

700-93-11320

O-RING

21

700-93-11330

RING,BACK-UP

22

07002-03634

O-RING

|$36

709-90-59103

RELIEF VALVE ASS'Y

|$37

709-90-59102

RELIEF VALVE ASS'Y

|$38

709-90-59101

RELIEF VALVE ASS'Y

|$39

709-90-59100

RELIEF VALVE ASS'Y

23

SLEEVE

23

SLEEVE

23

SLEEVE

23

SLEEVE

24

700-22-11410

O-RING

25

07002-02434

O-RING

26

700-20-51550

RING,SNAP

27

700-20-51540

RETAINER

28

VALVE

28

VALVE

29

709-70-51210

SPRING

29

700-20-51610

SPRING

30

709-70-51420

POPPET

30

709-70-51220

POPPET

30

700-80-61190

POPPET

30A

700-80-51240

SPACER

31

700-20-51580

SPRING

31

709-70-51310

SPRING

31

700-20-51580

SPRING

32

700-20-51340

SCREW

32

709-70-51320

SCREW

32

700-20-51340

SCREW

32

700-20-51370

SCREW

32

700-20-51340

SCREW

33

07000-02011

O-RING

34

01582-11411

NUT
