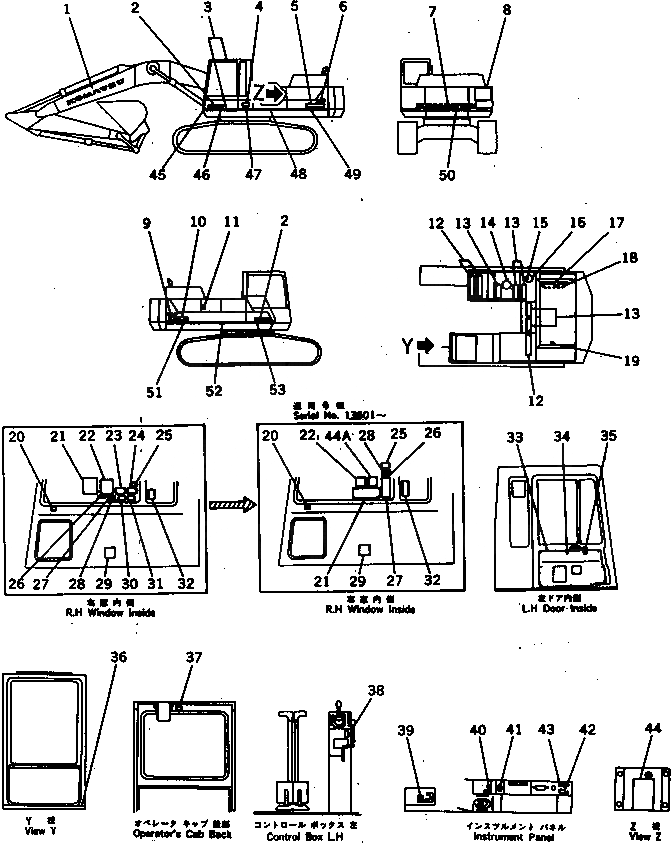

Запчасти Komatsu PC300LC-3 МАРКИРОВКА (ДЛЯ ЯПОН.) (ДЛЯ WRIST УПРАВЛ-Е) (С АВТОМАТИЧ. DECEL.¤ ПОВОРОТН. MECHA. ТОРМОЗ.¤-STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

207-00-31320

PLATE¤ MARK,KOMATSU

2

09690-50500

PLATE¤ MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-01643

PLATE¤ NAME,(LIMITED SUPPLY)

|4

205-00-72430

RIVET

|4

205-00-71540

SCREW

5

207-00-31230

PLATE¤ MARK,PC300LC

6

205-00-71240

PLATE¤ MARK,SYMBOL

7

207-00-31111

PLATE¤ MARK,KOMATSU

8

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

9

205-00-71240

PLATE¤ MARK,SYMBOL

10

207-00-31230

PLATE¤ MARK,PC300LC

11

205-00-73360

PLATE¤ OPERATING,HYDRAULIC OIL TANK

12

21T-54-11620

SEAT,NONSKID

13

154-54-23260

SEAT,NONSKID

14

09669-00002

PLATE¤ CAUTION,FUEL TANK

15

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

16

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

17

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

18

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

19

09667-00100

PLATE¤ SAFETY

20

205-00-52192

PLATE¤ CAUTION

21

205-00-71291

PLATE¤ OPERATING

22

205-00-71350

PLATE¤ OPERATING

23

205-00-65120

PLATE¤ CAUTION

24

205-00-65190

PLATE¤ CAUTION

25

207-00-31330

PLATE¤ CAUTION

26

205-00-71780

PLATE¤ CAUTION

27

205-00-73370

PLATE¤ CAUTION

|27

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

28

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

29

207-00-31241

PLATE¤ DATA

30

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

31

205-00-63250

PLATE¤ CAUTION

32

205-00-71560

PLATE¤ CAUTION

33

207-54-33111

COVER

34

205-54-72350

CLIP ASS'Y

35

205-00-71340

PLATE¤ OPERATING

36

205-54-76480

PLATE

37

205-00-63230

PLATE¤ CAUTION

38

09685-00002

PLATE¤ OPERATING,SAFETY LOCK LEVER

39

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

40

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

41

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

42

205-00-71470

PLATE¤ OPERATING,AUTO DECEL

43

205-00-71480

PLATE¤ OPERATING,SWING MECHANICAL BRAKE

44

207-00-31380

PLATE¤ OPERATING

44A

205-00-71810

PLATE

45

205-00-71530

LINE¤ STRIPE¤ 50M

45

205-00-73270

LINE¤ STRIPE¤ 46MM,(SERVICE PARTS)

46

205-00-71120

LINE¤ STRIPE¤ 1030MM,(SERVICE PARTS)

47

205-00-71130

LINE¤ STRIPE¤ 476MM,(SERVICE PARTS)

48

207-00-31150

LINE¤ STRIPE¤ 1054MM,(SERVICE PARTS)

49

207-00-31160

LINE¤ STRIPE¤ 1294MM,(SERVICE PARTS)

50

207-00-31210

LINE¤ STRIPE¤ 4200MM,(SERVICE PARTS)

51

207-00-31170

LINE¤ STRIPE¤ 1109MM,(SERVICE PARTS)

52

207-00-31180

LINE¤ STRIPE¤ 1406MM,(SERVICE PARTS)

53

207-00-31190

LINE¤ STRIPE¤ 831MM,(SERVICE PARTS)
