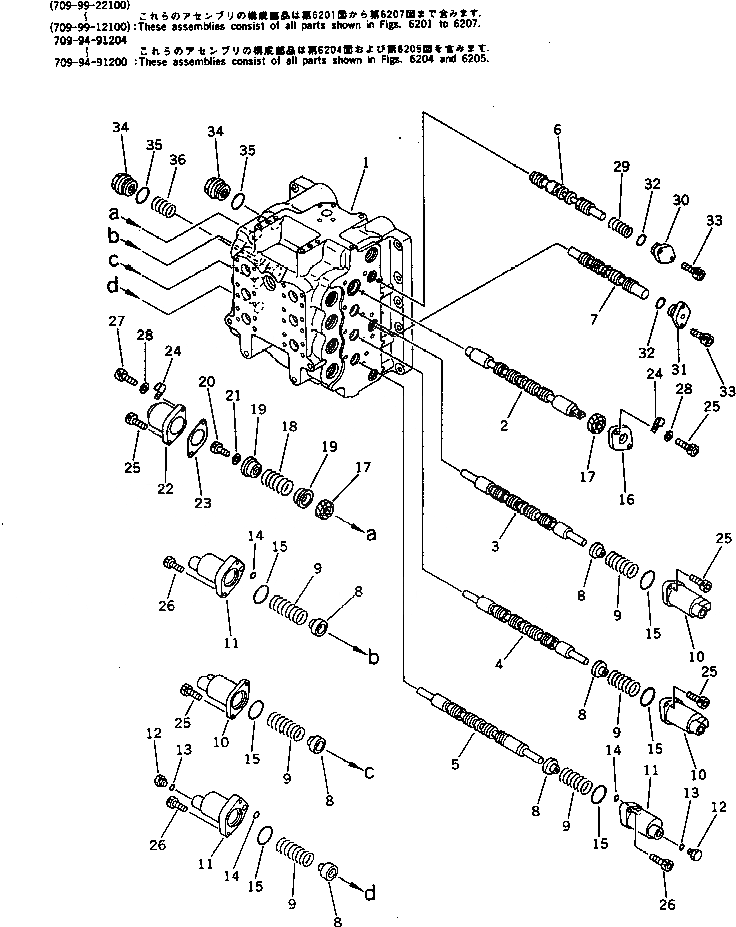

Запчасти Komatsu PC300LC-3 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-99-21201
CONTROL VALVE ASS'Y
|1
709-99-21200
CONTROL VALVE ASS'Y
|1
709-99-11209
CONTROL VALVE ASS'Y
|1
709-99-11208
CONTROL VALVE ASS'Y
|1
709-99-11207
CONTROL VALVE ASS'Y
|1
709-99-11205
CONTROL VALVE ASS'Y
|1
709-99-11204
CONTROL VALVE ASS'Y
|1
709-99-11203
CONTROL VALVE ASS'Y
|1
709-99-11202
CONTROL VALVE ASS'Y
|1
709-99-11201
CONTROL VALVE ASS'Y
|1
709-99-11200
CONTROL VALVE ASS'Y
|1
709-94-91104
VALVE ASS'Y
|1
709-94-91103
VALVE ASS'Y
|1
709-94-91102
VALVE ASS'Y
|1
709-94-00010
VALVE ASS'Y
|1
709-94-91100
VALVE ASS'Y
1
BODY
|1
BODY
|1
BODY,VALVE
|1
BODY,VALVE
2
SPOOL
|2
SPOOL,R.H. TRAVEL
|2
SPOOL,R.H. TRAVEL
3
SPOOL,BOOM
4
SPOOL,BUCKET
5
SPOOL,ARM HIGH
6
SPOOL
7
SPOOL
8
709-94-91130
RETAINER
9
709-94-91120
SPRING
10
709-94-91210
CASE
11
709-94-91220
CASE
12
07040-12012
PLUG
|12
701-30-63130
PLUG
13
07002-02034
O-RING
14
07000-02010
O-RING
15
07430-71380
O-RING
16
709-94-91460
PLATE
17
700-94-11710
SEAL
18
709-94-91910
SPRING
19
700-93-11870
RETAINER
20
01252-31016
BOLT
21
01643-31032
WASHER
22
700-93-11220
CASE
23
709-94-91470
PLATE
24
08036-31210
CLIP
25
01252-30820
BOLT
26
01252-30830
BOLT
27
01252-30835
BOLT
28
01643-30823
WASHER
29
709-94-91150
SPRING
30
709-94-91490
PLATE
31
709-94-91140
PLATE
32
700-13-31161
O-RING
33
01252-30820
BOLT
34
709-74-92220
PLUG
35
07002-03034
O-RING
36
709-94-91880
SPRING
|36
709-94-91880
SPRING
Выбрано товаров: 59
