Запчасти Komatsu PC300LC-3 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

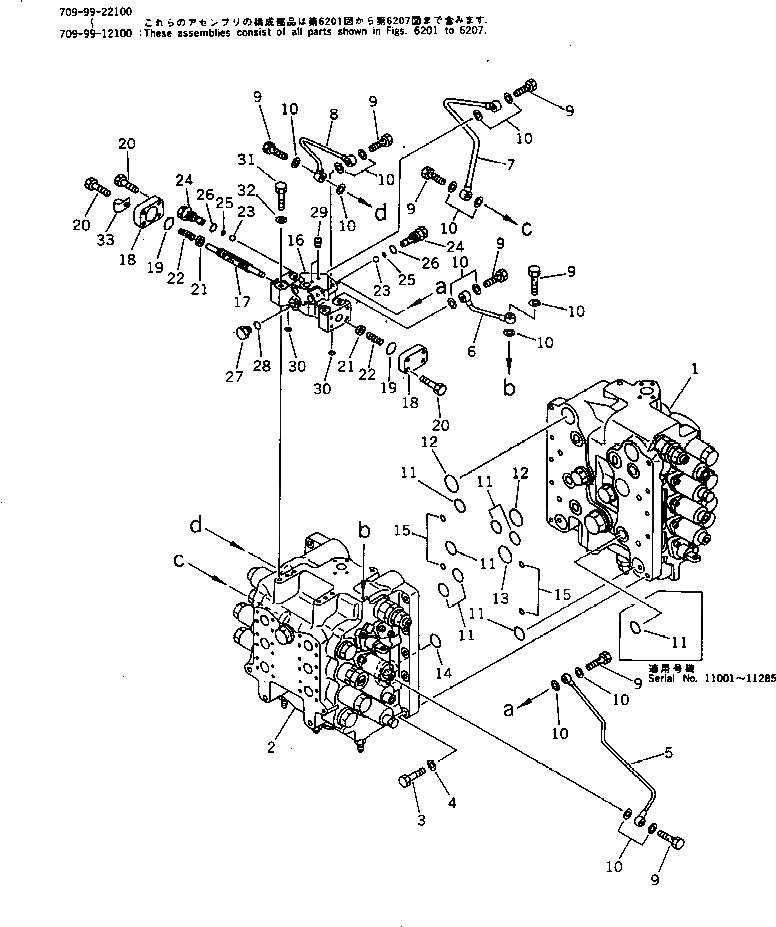

Схема запчастей Komatsu PC300LC-3 - УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-99-21201

CONTROL VALVE ASS'Y

|1

709-99-21200

CONTROL VALVE ASS'Y

|1

709-99-11209

CONTROL VALVE ASS'Y

|1

709-99-11208

CONTROL VALVE ASS'Y

|1

709-99-11207

CONTROL VALVE ASS'Y

|1

709-99-11205

CONTROL VALVE ASS'Y

|1

709-99-11204

CONTROL VALVE ASS'Y

|1

709-99-11203

CONTROL VALVE ASS'Y

|1

709-99-11202

CONTROL VALVE ASS'Y

|1

709-99-11201

CONTROL VALVE ASS'Y

|1

709-99-11200

CONTROL VALVE ASS'Y

1

709-95-91105

VALVE ASS'Y

|1

709-95-91104

VALVE ASS'Y

|1

709-95-91102

VALVE ASS'Y

|1

709-95-00011

VALVE ASS'Y

|1

709-95-91101

VALVE ASS'Y

|1

709-95-91100

VALVE ASS'Y

2

709-94-91104

VALVE ASS'Y

|2

709-94-91103

VALVE ASS'Y

|2

709-94-91102

VALVE ASS'Y

|2

709-94-00010

VALVE ASS'Y

|2

709-94-91100

VALVE ASS'Y

3

01010-51250

BOLT

4

01643-31232

WASHER

5

709-99-11130

TUBE

6

709-99-11110

TUBE

7

709-99-11140

TUBE

8

709-99-11120

TUBE

9

07206-30508

BOLT,JOINT

10

07005-00812

GASKET

11

07000-13032

O-RING

|11

07000-13032

O-RING

12

07000-13040

O-RING

|12

07000-03040

O-RING

13

07000-13040

O-RING

14

07000-13040

O-RING

15

07000-02010

O-RING

|16

709-70-91102

SHUTTLE VALVE ASS'Y

|16

709-70-91101

SHUTTLE VALVE ASS'Y

16

BODY

|16

BODY

17

SPOOL

18

709-70-91150

PLATE

19

07000-13025

O-RING

20

01010-50825

BOLT

21

706-73-77140

PLATE

22

709-70-91130

SPRING

23

04260-00793

BALL

24

709-70-91170

PLUG

25

07000-01007

O-RING

26

07002-01423

O-RING

27

07040-11409

PLUG

28

07002-01423

O-RING

29

07043-70108

PLUG

30

07000-11009

O-RING

31

01010-50855

BOLT

32

01643-30823

WASHER

33

08036-30810

CLIP

Выбрано товаров: 58
