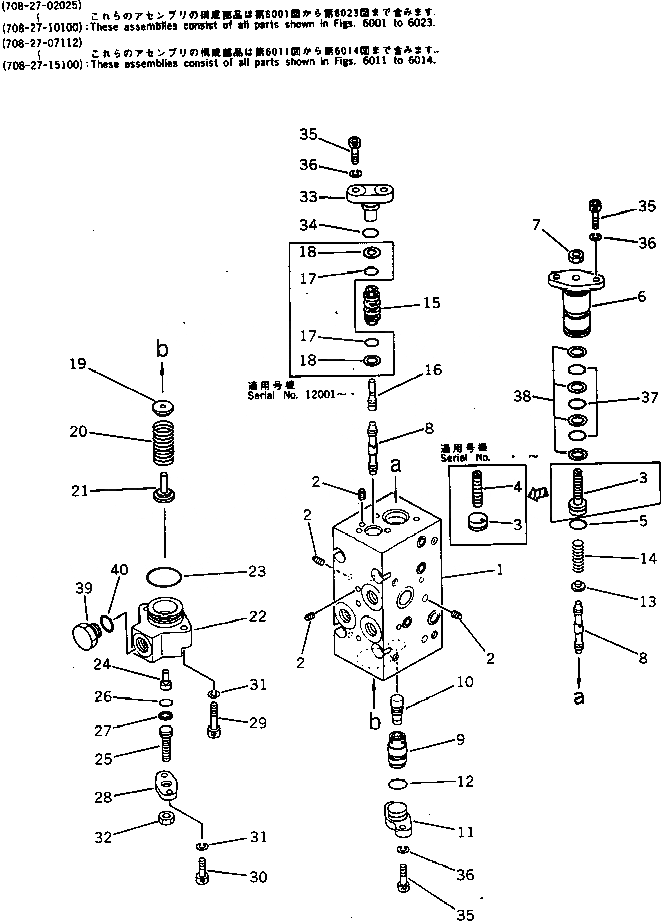

Запчасти Komatsu PC300LC-3 СЕРВОКЛАПАН¤ ПЕРЕДН. (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-27-02015
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02014
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02013
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02012
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02011
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02010
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-10100
PUMP ASS'Y,(HPV 160+160)
|1
708-27-07112
SERVO VALVE ASS'Y,FRONT
|1
708-27-07111
SERVO VALVE ASS'Y,FRONT
|1
708-27-07110
SERVO VALVE ASS'Y,FRONT
|1
708-27-15100
SERVO VALVE ASS'Y,FRONT
|1
708-27-07511
VALVE ASS'Y
|1
708-27-07510
VALVE ASS'Y
|1
708-27-17100
VALVE ASS'Y
|1
708-23-07042
BODY ASS'Y
|1
4708-23-07041
BODY ASS'Y
|1
4708-23-07040
BODY ASS'Y
1
BODY
|1
BODY
|1
BODY
2
EXPANDER
|2
PLUG
3
708-25-17420
PLUG
|3
708-25-17122
PLUG
|3
708-25-17120
PLUG
4
708-25-17430
SCREW
5
07000-02010
O-RING
|5
07000-02012
O-RING
6
708-25-17131
COVER
|6
708-25-17130
COVER
7
01580-10806
NUT
8
708-25-17141
SPOOL
|8
708-25-17140
SPOOL
9
708-25-17150
SLEEVE
10
708-25-17160
PISTON
11
708-25-17170
COVER
12
07000-02014
O-RING
13
708-25-17180
SEAT
14
708-25-17190
SPRING
15
708-25-17211
SLEEVE
|15
4708-25-17210
SLEEVE
16
708-25-17220
PISTON
17
07000-12012
O-RING
18
07001-02012
RING
19
708-25-17370
SEAT
|19
708-25-17240
SEAT
20
708-25-17250
SPRING
21
708-25-17260
SEAT
22
708-25-17280
COVER
23
07000-03028
O-RING
24
708-25-17270
PISTON
25
708-25-17290
PLUG
26
07000-11009
O-RING
27
07001-01009
RING
28
708-25-17310
COVER
29
706-75-40310
BOLT
|29
01252-30630
BOLT
30
708-25-15320
BOLT
|30
01252-30616
BOLT
31
01602-20619
WASHER
32
01580-10806
NUT
33
708-25-17230
COVER
34
07000-02012
O-RING
35
708-25-15320
BOLT
|35
01252-30616
BOLT
36
01602-20619
WASHER
37
07000-12021
O-RING
|37
07000-02021
O-RING
38
07001-02021
RING
39
07040-11409
PLUG
40
07002-01423
O-RING
Выбрано товаров: 71
