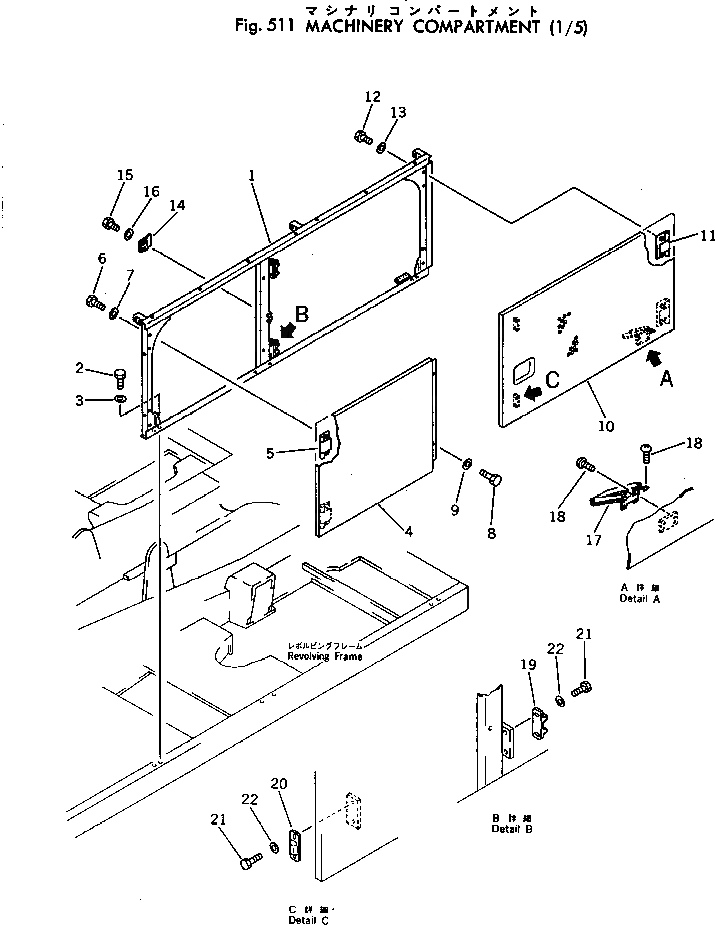

Запчасти Komatsu PC300LC-2 MACHINERY ОБСТАНОВКА (/) ОСНОВНАЯ РАМА И КАБИНА

1

207-54-16113

FRAME

2

01010-51230

BOLT

3

01643-31232

WASHER

4

207-54-16122

COVER

5

205-54-64160

HINGE (WELDED)

6

01010-51225

BOLT

7

01643-31232

WASHER

8

01010-51225

BOLT

9

01643-31232

WASHER

10

207-54-16212

COVER

|10

205-54-65910

LOCK (WELDED)

|10

208-54-12140

SHEET (4 HOLES) (BONDED)

|10

205-54-64150

SHEET (2 HOLES) (BONDED)

11

205-54-64160

HINGE (WELDED)

12

01010-51225

BOLT

13

01643-31232

WASHER

14

207-54-16471

STRIKER

15

01010-51025

BOLT

16

01643-31032

WASHER

17

208-54-12450

STAY

18

01225-40510

SCREW

19

205-54-51970

DOVE TAIL

20

205-54-53550

DOVE TAIL

21

01010-50616

BOLT

22

01643-30623

WASHER
