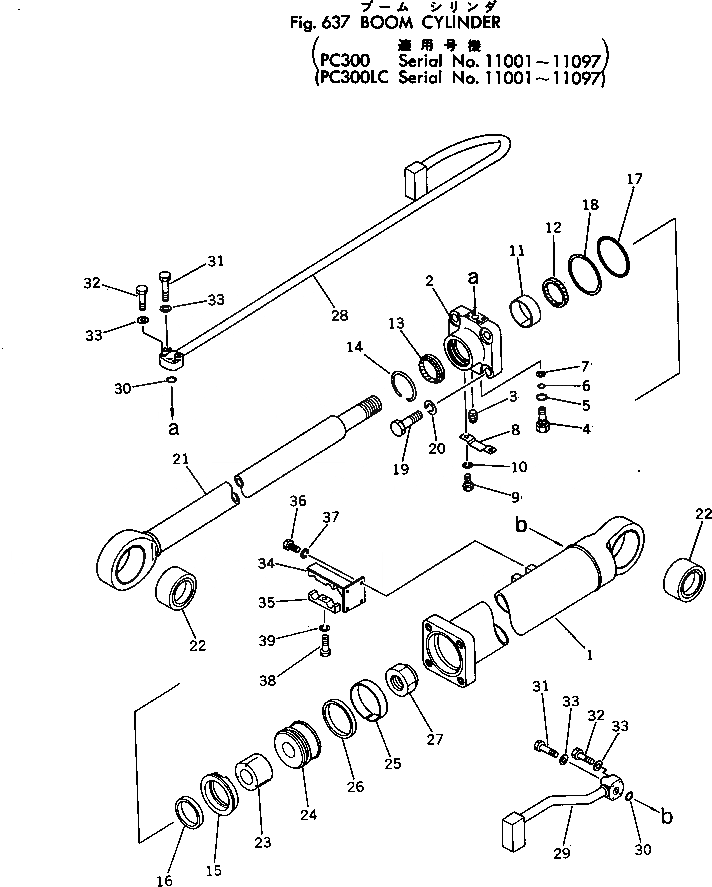

Запчасти Komatsu PC300LC-2 ЦИЛИНДР СТРЕЛЫ(№-97) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

207-63-56103

CYLINDER ASS'Y,L.H.

|1

207-63-56102

CYLINDER ASS'Y,L.H.

|1

207-63-56203

CYLINDER ASS'Y,R.H.

|1

207-63-56202

CYLINDER ASS'Y,R.H.

1

207-63-56140

CYLINDER

2

207-63-56130

HEAD

3

07042-20108

PLUG

4

207-63-56160

CAPILLARY

5

07002-11823

O-RING

6

07000-11009

O-RING

7

07001-01009

RING,BACK-UP

8

206-63-56770

COVER

9

01010-51420

BOLT

10

01602-21442

WASHER,SPRING

11

07177-01040

BUSHING

12

707-51-10211

PACKING

13

176-63-56170

SEAL

14

07179-00123

RING

15

207-63-56270

COLLAR

16

207-63-56180

RING

17

07000-15150

O-RING

18

07146-05152

RING,BACK-UP

19

01011-83000

BOLT

20

01601-23075

WASHER,SPRING

21

207-63-56121

ROD,PISTON

22

207-63-56190

BUSHING

23

206-63-56260

PLUNGER

24

205-63-65171

PISTON

25

07155-01535

RING,WEAR

26

707-44-15080

RING,PISTON

27

07165-16870

NUT

28

207-63-56381

TUBE,L.H.

|28

207-63-56481

TUBE,R.H.

29

207-63-56391

TUBE,L.H.

|29

207-63-56491

TUBE,R.H.

30

07000-13035

O-RING

31

01010-51060

BOLT

32

01010-51055

BOLT

33

01643-31032

WASHER

34

207-62-11182

BRACKET

35

205-62-52530

CLAMP

36

01010-51025

BOLT

37

01602-21030

WASHER,SPRING

38

01010-51250

BOLT

39

01602-21236

WASHER,SPRING
