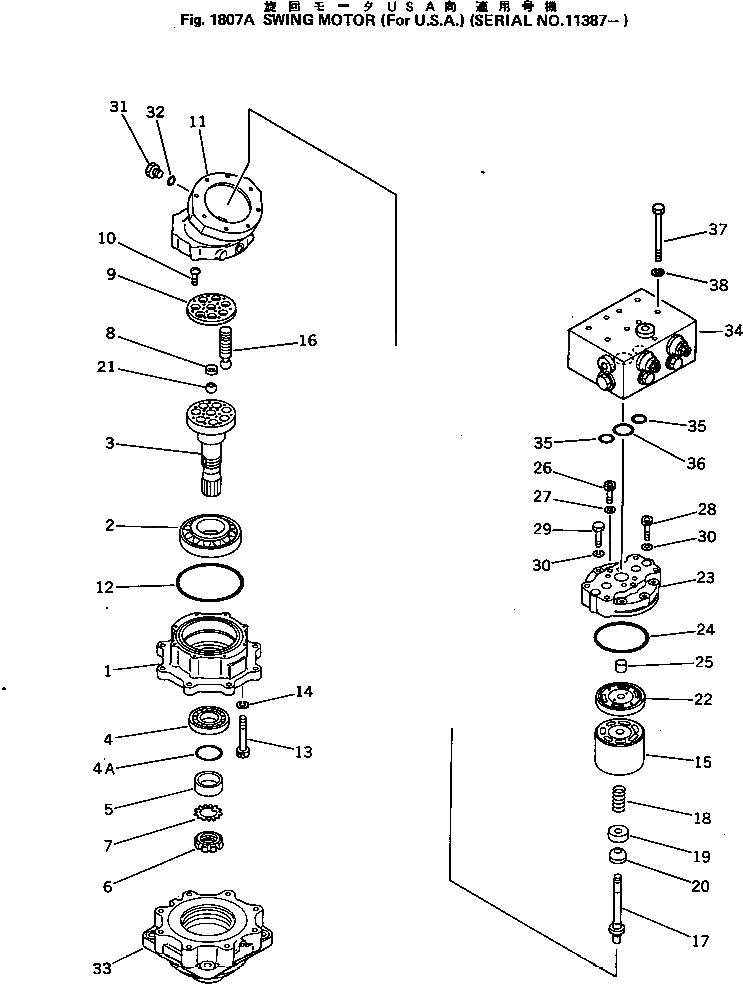

Запчасти Komatsu PC300LC-2 МОТОР ПОВОРОТА (ДЛЯ США)(№87-) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

706-77-04502

MOTOR ASS'Y

|$1

706-77-04501

MOTOR ASS'Y

|$2

706-77-04500

MOTOR ASS'Y

|$3

706-77-42001

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING

3

SHAFT,DRIVE

4

BEARING

4A

O-RING

5

RING

6

NUT

7

WASHER,LOCK

8

HOLDER

9

RETAINER

10

SCREW

11

CASE,PUMP

12

O-RING

13

BOLT

14

WASHER,SPRING

15

BLOCK,CYLINDER

16

PISTON SUB ASS'Y

17

SHAFT,CENTER

18

SPRING

19

PLATE,THRUST

20

SEAT,BALL

21

BALL,CENTER

22

PLATE,VALVE

23

COVER,END

24

O-RING

25

BEARING

26

BOLT

27

GASKET,SEAL

28

BOLT

29

BOLT

30

WASHER,SPRING

31

07040-12012

PLUG

32

07002-02034

O-RING

33

706-77-92001

PARKING BRAKE ASS'Y

33

706-77-92000

PARKING BRAKE A.

34

706-77-73600

VALVE ASS'Y

35

07000-13035

O-RING

36

07000-02055

O-RING

37

01011-51445

BOLT

38

01602-21442

WASHER,SPRING
