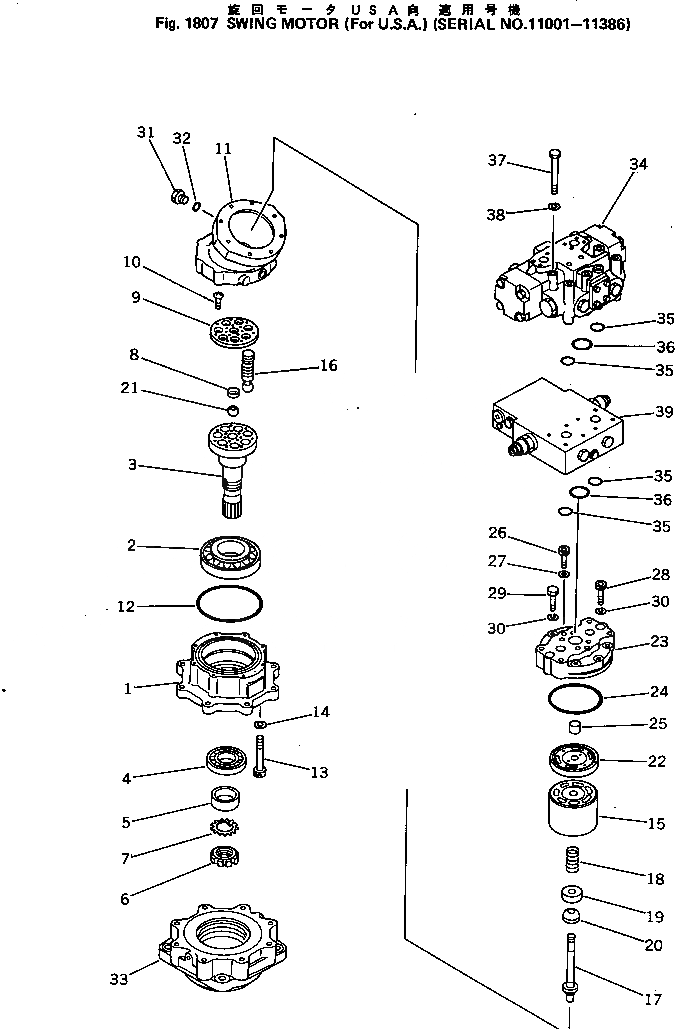

Запчасти Komatsu PC300LC-2 МОТОР ПОВОРОТА (ДЛЯ США)(№-8) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

706-77-00901

MOTOR ASS'Y

|$1

706-77-42001

MOTOR ASS'Y

1

COVER

2

BEARING

3

SHAFT

4

BEARING

5

RING

6

NUT

7

WASHER

8

HOLDER

9

RETAINER

10

SCREW

11

CASE

12

O-RING

13

BOLT

14

WASHER,SPRING

15

BLOCK

16

PISTON SUB ASS'Y

17

SHAFT

18

SPRING

19

PLATE

20

SEAT

21

BALL

22

PLATE

23

COVER

24

O-RING

25

BEARING

26

BOLT

27

GASKET

28

BOLT

29

BOLT

30

WASHER

31

07040-12012

PLUG

32

07002-02034

O-RING

33

706-77-92000

PARKING BRAKE A.

34

706-77-72400

BRAKE VALVE ASS'Y

35

07000-13035

O-RING

36

07000-02055

O-RING

37

706-77-71540

BOLT

38

01602-21442

WASHER,SPRING

39

706-77-79301

VALVE ASS'Y
