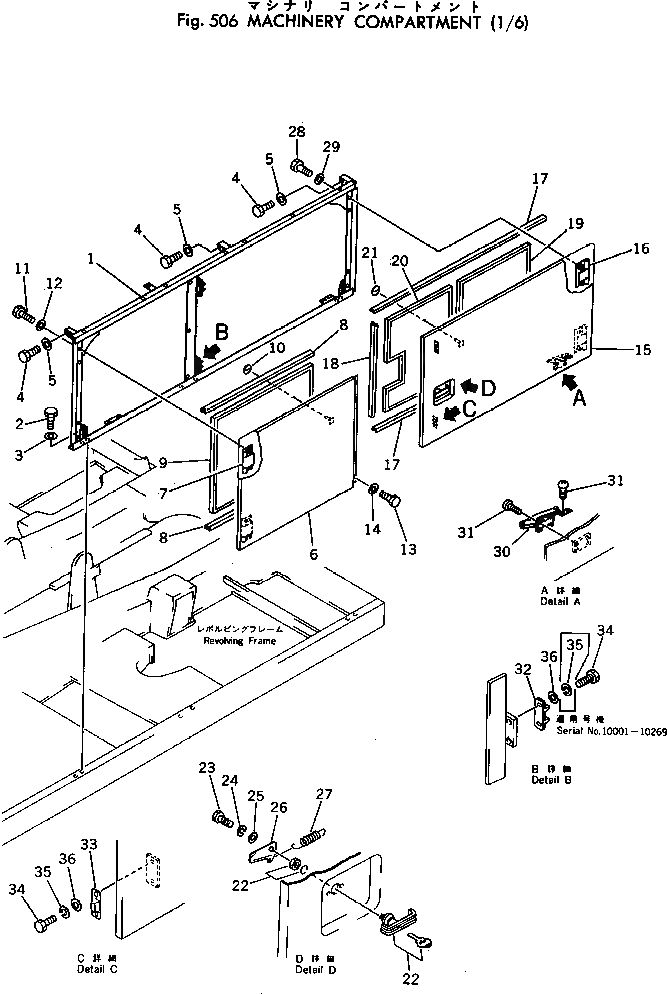

Запчасти Komatsu PC300LC-1 MACHINERY ОБСТАНОВКА (/) ОСНОВНАЯ РАМА И КАБИНА

1

207-54-16111

FRAME

2

01010-31225

BOLT

3

01643-31232

WASHER

4

01010-31225

BOLT

5

01643-31232

WASHER

6

207-54-16121

COVER

7

205-54-64160

HINGE (WELDED)

8

207-54-16131

SEAL

9

207-54-16351

WOOL,GLASS

10

04431-30000

PLATE

11

01010-31225

BOLT

12

01643-31232

WASHER

13

01010-31225

BOLT

14

01643-31232

WASHER

15

207-54-16211

COVER

16

205-54-64160

HINGE (WELDED)

17

207-54-16261

SEAL

18

207-54-16140

SEAL

19

207-54-16151

WOOL,GLASS

20

207-54-17430

WOOL,GLASS

21

04431-30000

PLATE

21

04431-30000

PLATE

22

21T-54-12310

HANDLE,LOCK

23

01010-30820

BOLT

24

01602-00825

WASHER,SPRING

25

01643-30823

WASHER

26

21T-54-12320

PLATE

27

135-43-14520

SPRING

28

01010-31225

BOLT

29

01643-31232

WASHER

30

208-54-12450

STAY

31

01225-30510

SCREW

32

205-54-51970

DOVE TAIL

33

205-54-53550

DOVE TAIL

34

01010-30620

BOLT

35

01602-00619

WASHER,SPRING

36

01643-30623

WASHER
