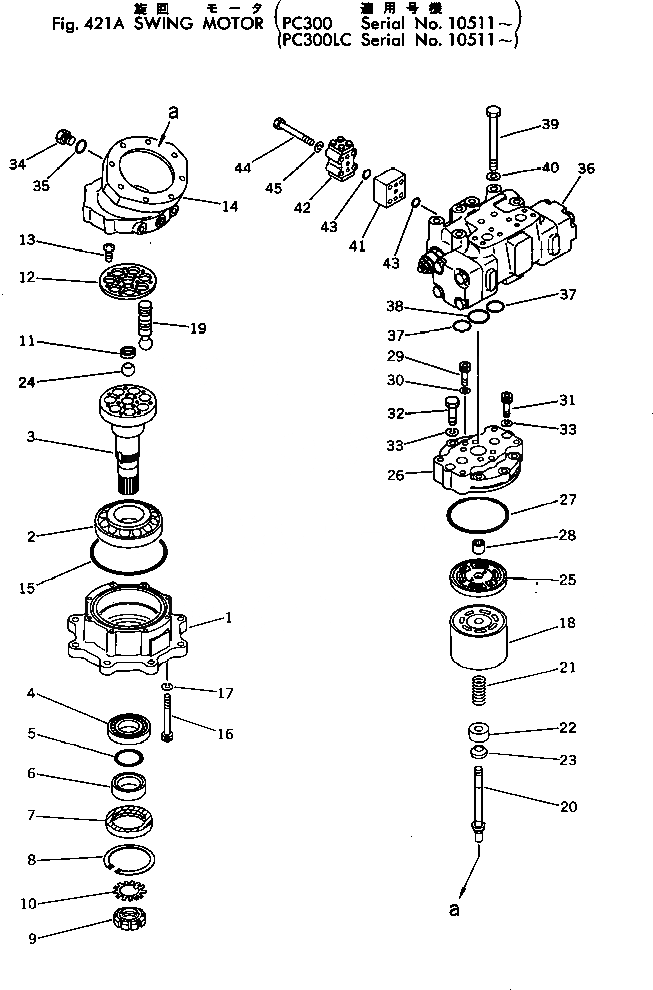

Запчасти Komatsu PC300LC-1 МОТОР ПОВОРОТА(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-77-00703

MOTOR ASS'Y

|$1

706-77-41001

MOTOR ASS'Y

1

COVER

2

BEARING

3

SHAFT

4

BEARING

5

O-RING

6

RING

7

SEAL

8

RING,SNAP

9

NUT

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

14

CASE

15

O-RING

16

BOLT

17

WASHER

18

BLOCK

19

PISTON SUB ASS'Y

20

SHAFT

21

SPRING

22

PLATE

23

SEAT

24

BALL

25

PLATE

26

COVER

27

O-RING

28

BEARING

29

BOLT

30

GASKET

31

BOLT

32

BOLT

33

WASHER,SPRING

34

07040-12012

PLUG

35

07002-02034

O-RING

36

706-77-71203

BRAKE VALVE ASS'Y

37

07000-13035

O-RING

38

07000-02055

O-RING

39

01011-51455

BOLT

40

01602-21442

WASHER

41

706-77-77140

PLATE

42

706-77-77100

SHUTTLE VALVE A.

43

07000-12011

O-RING

44

706-77-77150

BOLT

45

01602-20825

WASHER,SPRING

1K

706-98-05010

DRIVE SHAFT KIT,(EXCEPT JAPAN)

2

BEARING

3

SHAFT

5

O-RING

7

SEAL

10

WASHER

11

HOLDER

12

RETAINER

13

SCREW

15

O-RING

18

BLOCK

19

PISTON SUB ASS'Y

20

SHAFT

21

SPRING

22

PLATE

23

SEAT

24

BALL

27

O-RING

29

BOLT

30

GASKET
