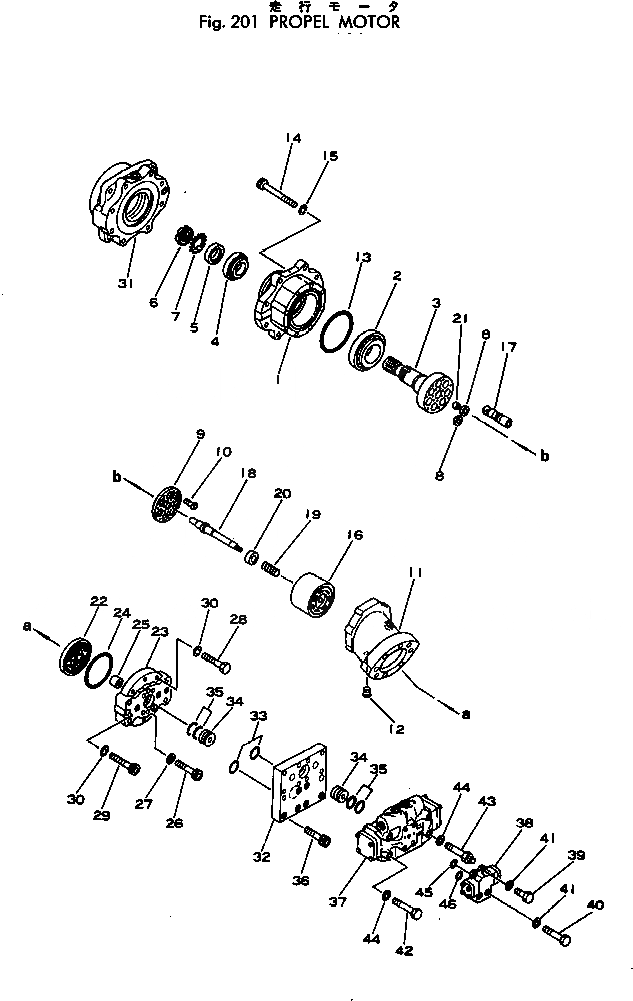

Запчасти Komatsu PC300LC-1 PКАНАТL МОТОР ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

706-75-35901

PROPEL MOTOR ASS'Y

|$1

706-75-35900

PROPEL MOTOR ASS'Y

|$2

706-75-43004

MOTOR ASS'Y

1

COVER

2

BEARING

3

SHAFT

4

BEARING

5

RING

5

RING

6

NUT

7

WASHER,LOCK

8

HOLDER

9

RETAINER

10

SCREW

11

PLATE

12

706-73-40360

PLUG

13

O-RING

14

BOLT

15

WASHER

16

BLOCK

17

PISTON ASS'Y

18

SHAFT

19

SPRING

20

RING

21

BALL

22

PLATE

22

PLATE

23

COVER

24

O-RING

25

BEARING

26

BOLT

27

GASKET

28

BOLT

29

BOLT

30

WASHER

31

706-75-92001

PARKING BRAKE A.

32

205-62-53662

BLOCK

32

205-62-53661

BLOCK

33

07000-13032

O-RING

34

706-75-90190

RING

35

07000-03035

O-RING

36

01252-31235

BOLT

37

706-75-72400

BRAKE VALVE ASS'Y

38

706-75-77301

SHUTTLE VALVE A.

39

01011-51215

BOLT

40

01011-51245

BOLT

41

01643-31232

WASHER

42

01011-51205

BOLT

43

706-75-72950

BOLT

44

01643-31232

WASHER

45

07000-02011

O-RING

46

07000-12010

O-RING

1K

706-98-05030

DRIVE SHAFT KIT

2

BEARING

3

SHAFT

7

WASHER

8

HOLDER

9

RETAINER

10

SCREW

13

O-RING

16

BLOCK

17

PISTON ASS'Y

18

SHAFT

19

SPRING

20

RING

21

BALL

24

O-RING

26

BOLT

27

GASKET

47

O-RING,(NOT SHOWN)

48

SEAL,(NOT SHOWN)
