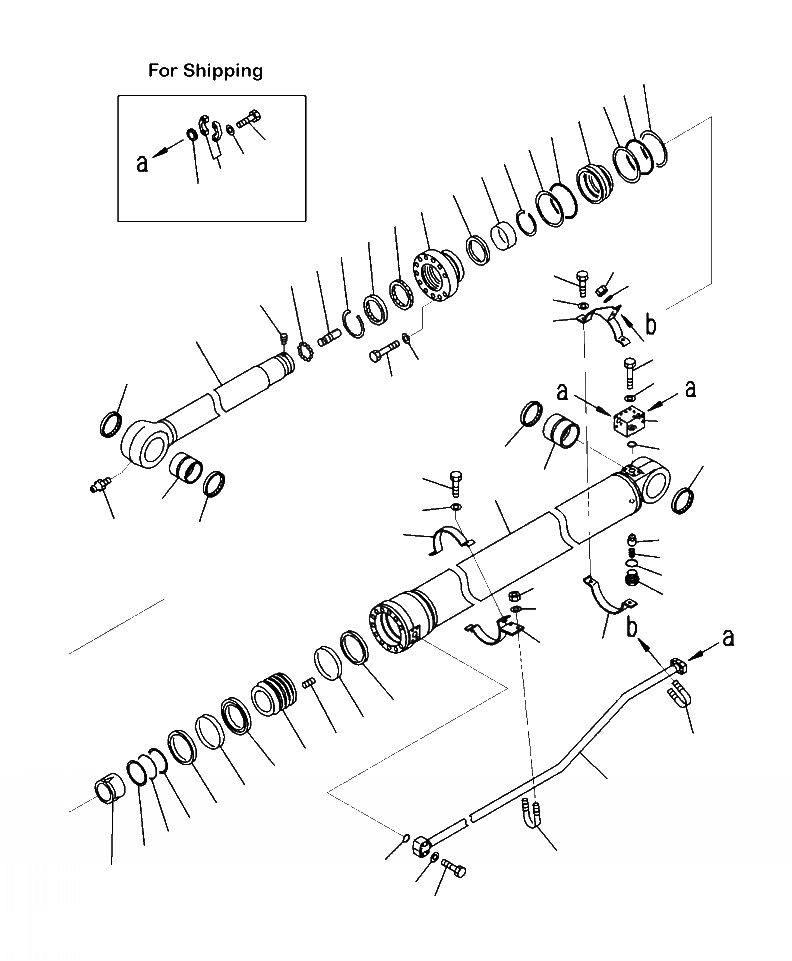

Запчасти Komatsu PC300HD-8 T-A ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-01-0A452

ARM CYLINDER ASSEMBLY

1

707-13-16710

CYLINDER

2

707-76-10290

BUSHING

3

07145-00100

SEAL, DUST (KIT)

4

707-58-11360

ROD

5

707-76-10290

BUSHING

6

07145-00100

SEAL, DUST (KIT)

7

707-71-32800

COLLAR

8

707-35-91640

RING, BACK-UP (KIT)

9

07000-15150

O-RING (KIT)

10

707-71-61130

PLUNGER

11

707-71-70290

PLUNGER

12

04260-00635

BALL

13

707-71-91270

CAP

14

07020-00000

FITTING, GREASE

15

707-27-16571

HEAD

16

198-63-94170

SEAL, DUST (KIT)

17

07179-13126

RING, SNAP

18

707-52-90850

BUSHING

19

707-75-11040

RING, SNAP

20

707-51-11030

PACKING, ROD (KIT)

21

707-51-11640

RING, BUFFER (KIT)

22

707-35-91640

RING, BACK-UP (KIT)

23

07000-15150

O-RING (KIT)

24

01010-82085

BOLT

25

707-88-75310

WASHER

26

707-36-16580

PISTON

27

01310-01216

SCREW

28

707-44-16180

RING, PISTON (KIT)

29

707-39-16120

RING, WEAR (KIT)

30

707-44-16910

RING

31

07001-05100

RING, BACK-UP (KIT)

32

07000-15100

O-RING (KIT)

33

707-83-13010

VALVE

34

07750-01628

SPRING

35

707-87-14070

PLUG

36

07002-12034

O-RING (KIT)

37

707-86-11600

TUBE

38

707-86-11610

BLOCK

39

07372-21060

BOLT

40

01643-51032

WASHER

41

01010-81095

BOLT

42

01643-31032

WASHER

43

07000-13035

O-RING (KIT)

44

707-88-22740

BRACKET

45

707-88-21380

BAND

46

207-63-64190

BRACKET

47

707-88-21390

BAND

48

07372-21240

BOLT

49

01643-51232

WASHER

50

07283-33442

CLIP

51

01643-31032

WASHER

52

01597-01009

NUT

53

707-88-33040

CAP

54

07371-31049

FLANGE, SPLIT

55

07372-21035

BOLT

56

01643-51032

WASHER

|$57

707-99-72300

SERVICE KIT
