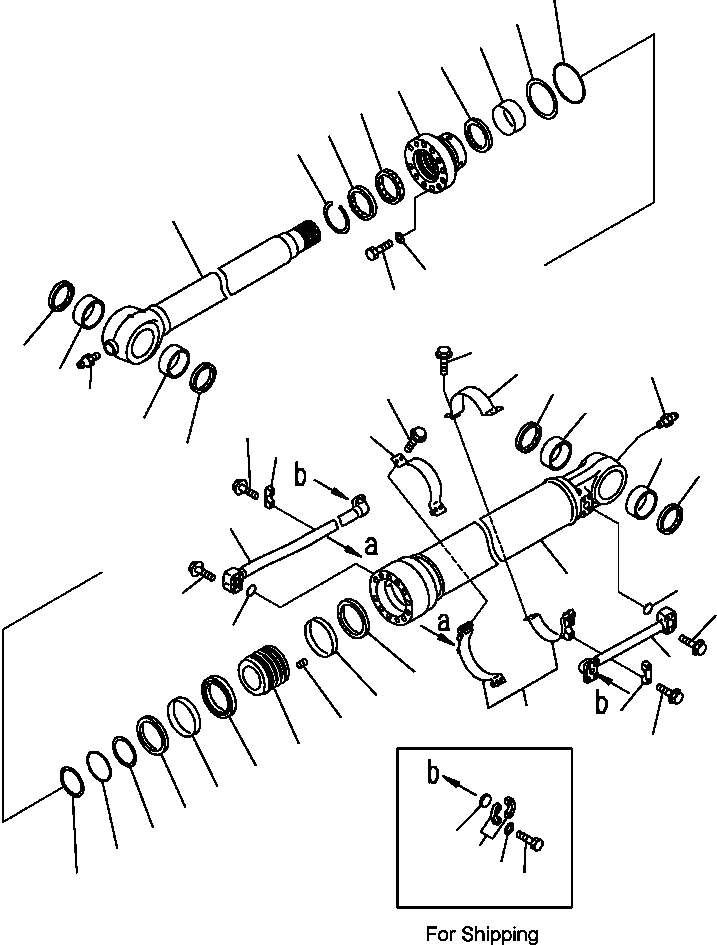

Запчасти Komatsu PC300HD-7L T-A ЦИЛИНДР КОВША . M РУКОЯТЬ И . M РУКОЯТЬ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-01-0A461

CYLINDER ASSEMBLY

1

707-13-14591

CYLINDER

2

207-70-73240

BUSHING

3

07145-00090

SEAL, DUST

4

07020-00000

FITTING, GREASE

5

707-58-10730

ROD

6

207-70-73240

BUSHING

7

207-70-72120

SEAL, DUST

8

07020-00000

FITTING, GREASE

9

707-27-14931

HEAD

10

176-63-56170

SEAL, DUST

11

07179-13114

RING, SNAP

12

707-52-90780

BUSHING

13

707-51-10030

PACKING, ROD

14

707-51-10640

RING, BUFFER

15

707-35-91420

RING, BACK-UP

16

07000-15130

O-RING

17

01010-81875

BOLT

18

707-41-11840

WASHER

19

707-36-14650

PISTON

20

01310-01216

SCREW

21

707-44-14181

RING, PISTON

22

707-39-14110

RING, WEAR

23

707-44-14910

RING

24

07001-05090

RING, BACK-UP

25

07000-15090

O-RING

26

707-86-11620

TUBE

27

207-63-73180

TUBE

28

01435-01055

BOLT

29

07000-13035

O-RING

30

207-63-73790

BRACKET

31

707-88-21410

BAND

32

01435-01235

BOLT

33

707-88-10150

CLAMP

34

01435-01240

BOLT

35

707-88-33040

CAP

36

07371-31049

FLANGE, SPLIT

37

07372-21035

BOLT

38

01643-51032

WASHER

|$39

707-99-58090

SERVICE KIT
