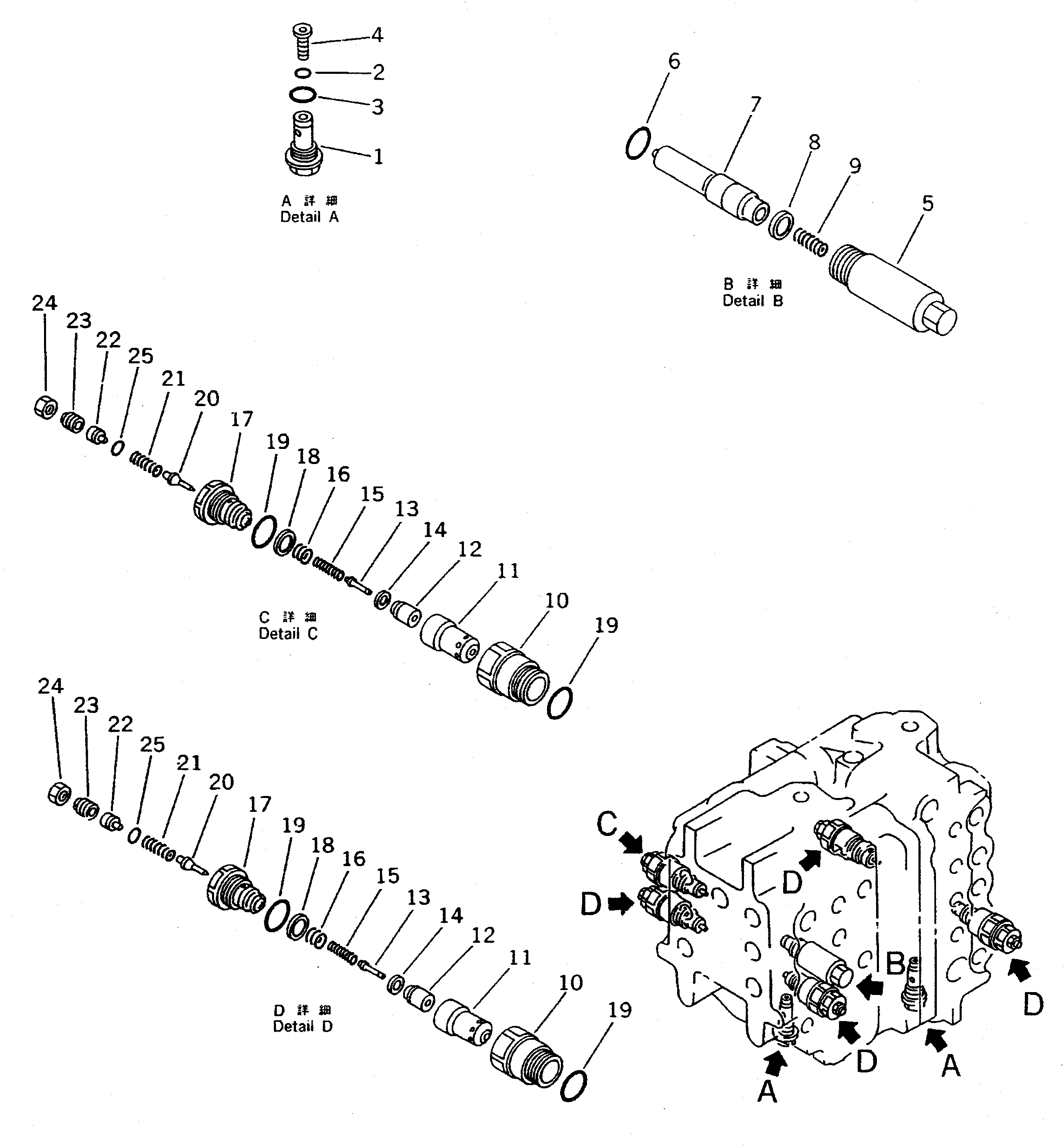

Запчасти Komatsu PC300HD-5K УПРАВЛЯЮЩ. КЛАПАН (7/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-99-13104

CONTROL VALVE ASS'Y

|1

709-99-13103

CONTROL VALVE ASS'Y

|1

709-90-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|5

709-90-64100

VALVE ASS'Y

5

SLEEVE

6

07002-03634

O-RING

7

VALVE

8

SEAL

9

SPRING

|10

709-90-71300

VALVE ASS'Y,SUCTION AND SAFETY 320KG/CM2

|10

709-90-71100

VALVE ASS'Y,SUCTION AND SAFETY 395KG/CM2

10

SLEEVE

11

SLEEVE

12

POPPET

13

PISTON

14

SEAL

15

SPRING

16

SPRING

17

PLUG

18

SEAL

19

07002-03634

O-RING

20

POPPET

21

SPRING

22

SPACER

23

SCREW

24

NUT

25

O-RING
