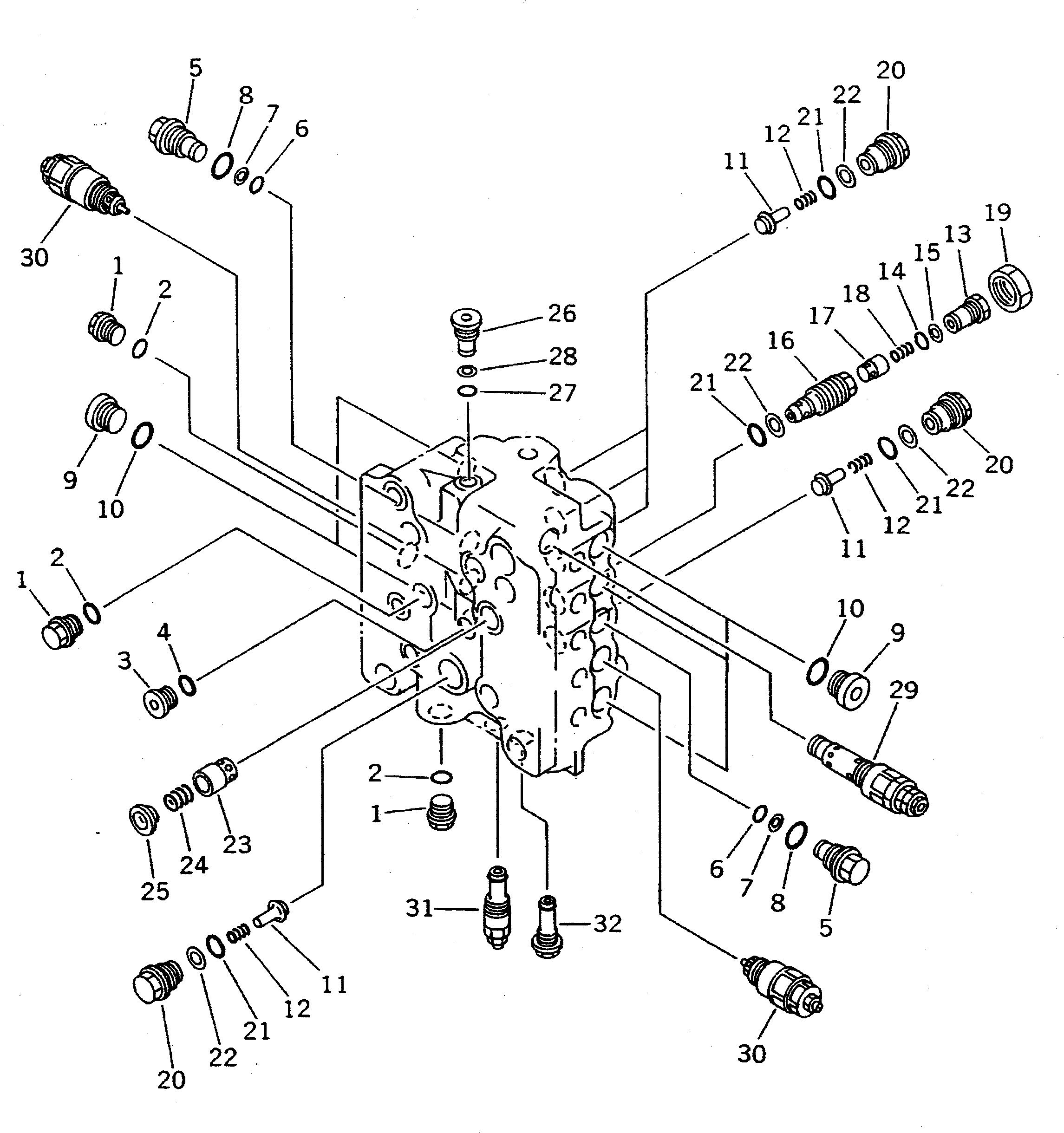

Запчасти Komatsu PC300 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-99-13104

CONTROL VALVE ASS'Y

|$1

709-99-13103

CONTROL VALVE ASS'Y

|$2

709-99-13102

CONTROL VALVE ASS'Y

|$4

709-95-93104

VALVE ASS'Y

|$5

709-95-93103

VALVE ASS'Y

|$6

709-95-93102

VALVE ASS'Y

1

709-74-91860

PLUG

2

07002-12434

O-RING

3

709-95-91150

PLUG

4

07002-12434

O-RING

5

700-94-11260

PLUG

6

07000-12018

O-RING

7

07001-02018

RING,BACK-UP

8

07002-03634

O-RING

9

07040-13618

PLUG

10

07002-03634

O-RING

11

709-94-92811

VALVE

11

4709-94-92810

VALVE

12

709-94-91751

SPRING

12

4709-94-91750

SPRING

13

709-74-92450

PLUG

14

07000-12010

O-RING

15

07001-02010

RING,BACK-UP

16

709-94-91730

PLUG

17

706-73-70140

VALVE,CHECK

18

706-73-70150

SPRING

19

709-74-92460

NUT

20

709-74-92821

PLUG

21

700-93-11320

O-RING

22

700-93-11330

RING,BACK-UP

23

709-94-91261

VALVE

24

709-94-91270

SPRING

25

709-94-91280

SEAT

26

709-74-91850

PLUG

27

07000-12018

O-RING

28

07001-02018

RING,BACK-UP

29

709-90-52202

RELIEF VALVE ASS'Y

30

709-90-71100

VALVE ASS'Y,SUCTION AND SAFETY

31

709-90-59400

VALVE ASS'Y

32

709-90-91300

ORIFICE ASS'Y
