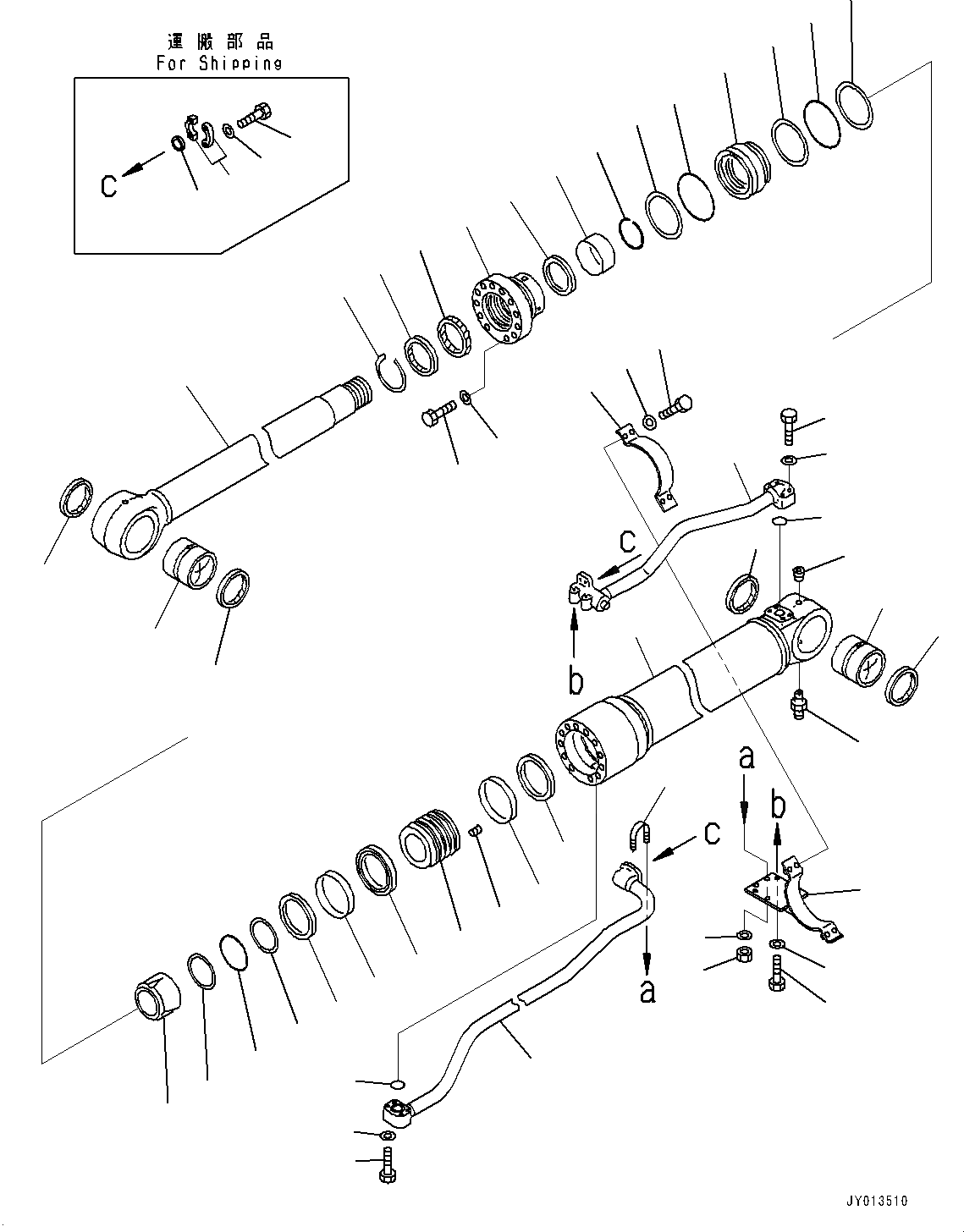

Запчасти Komatsu PC300-8 ЦИЛИНДР СТРЕЛЫ, ЧАС. СИСТ. СМАЗКИ ТИП ВНУТР. ЧАСТИ, LHS (№C-) ЦИЛИНДР СТРЕЛЫ, ЧАС. СИСТ. СМАЗКИ ТИП

|$0

707-01-0F441

Cylinder Assembly

1

707-13-14580

Cylinder

2

707-58-10720

Rod

3

707-76-90390

Bushing

4

07145-00090

Seal, Dust, (Kit : K13)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-10130

Bushing

8

07145-00100

Seal, Dust, (Kit : K13)

9

707-71-34800

Collar

10

707-35-91420

Ring, Back-up, (Kit : K13)

11

07000-15130

O-ring, (Kit : K13)

12

707-71-61090

Plunger

13

707-27-14890

Head

14

176-63-56170

Seal, Dust, (Kit : K13)

15

07179-13114

Ring, Snap

16

707-51-10030

Packing, Rod, (Kit : K13)

17

707-51-10640

Ring, Buffer, (Kit : K13)

18

707-52-90781

Bushing

19

07000-15130

O-ring, (Kit : K13)

20

707-35-91420

Ring, Back-up, (Kit : K13)

21

01010-81875

Bolt

22

707-41-11840

Washer

23

707-75-10160

Ring, Snap

24

707-36-14650

Piston

25

707-44-14150

Ring, Piston, (Kit : K13)

26

707-39-14110

Ring, Wear, (Kit : K13)

27

707-44-14910

Ring

28

07000-B5090

O-ring, (Kit : K13)

29

07001-05090

Ring, Back-up, (Kit : K13)

30

01310-01216

Screw

31

707-86-11580

Tube

32

207-63-54580

Tube

33

207-63-54590

Bracket

34

07372-21060

Bolt

35

01643-51032

Washer

36

07000-13035

O-ring, (Kit : K13)

37

707-88-21370

Band

38

07372-21240

Bolt

39

01643-51232

Washer

40

07283-33442

Clip

41

01597-01009

Nut

42

01643-31032

Washer

43

01010-81025

Bolt

44

01643-31032

Washer

45

07371-31049

Flange

46

707-88-33040

Cap

47

07372-21035

Bolt

48

01643-51032

Washer
