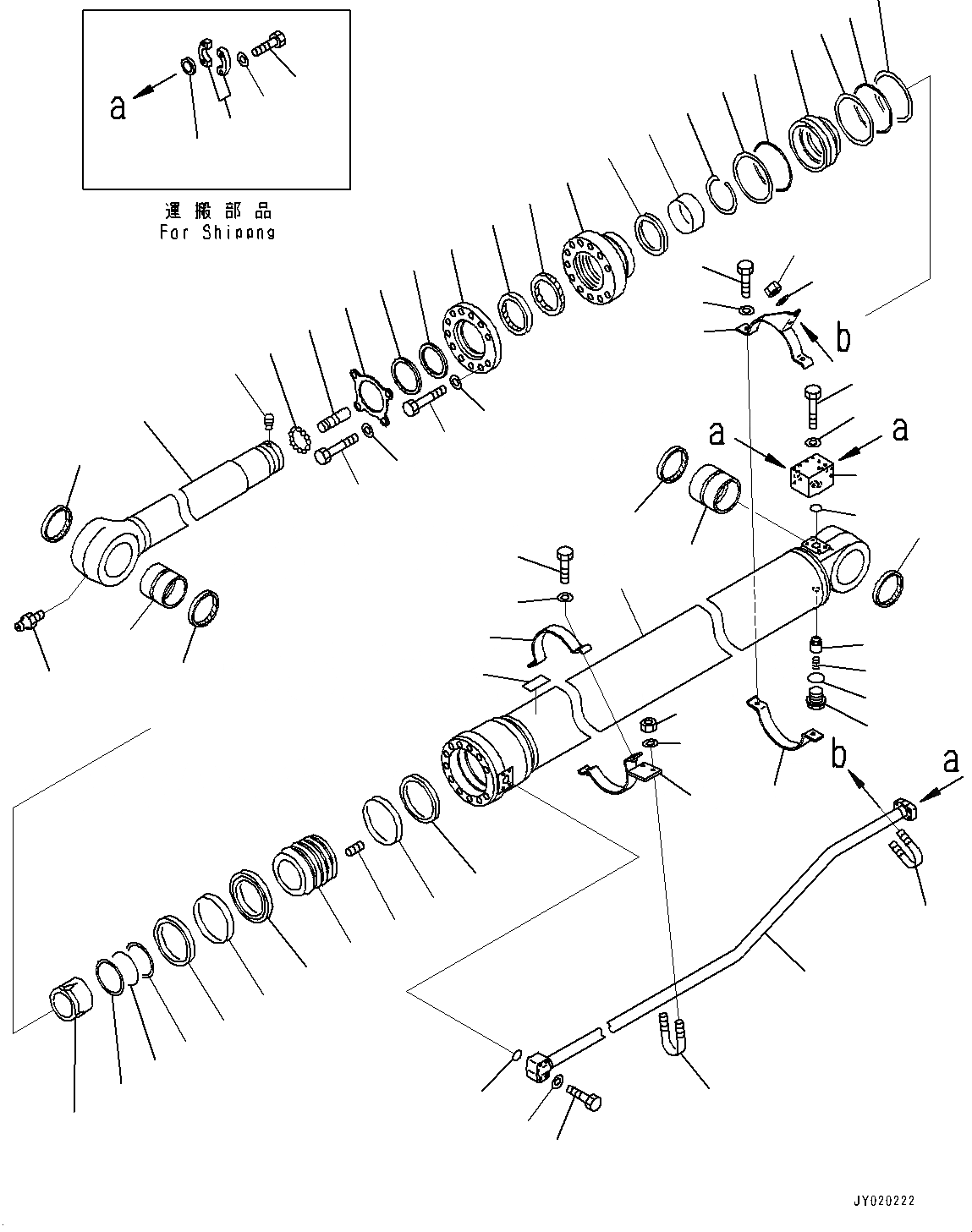

Запчасти Komatsu PC300-8 ЦИЛИНДР РУКОЯТИ, ВНУТР. ЧАСТИ (№77-) ЦИЛИНДР РУКОЯТИ, ЧАС. СИСТ. СМАЗКИ ТИП, EXTREME МОРОЗОУСТОЙЧИВ. СПЕЦИФ-Я (-DEG C)

|$0

707-01-0H121

Cylinder Assembly

1

707-13-16710

Cylinder

2

707-58-11680

Rod

3

707-76-10130

Bushing

4

07145-10100

Seal, Dust, (Kit : K14)

5

707-76-10130

Bushing

6

07145-10100

Seal, Dust, (Kit : K14)

7

07020-00000

Fitting, Grease

8

707-71-32800

Collar

9

707-35-91640

Ring, Back-up, (Kit : K14)

10

07000-55150

O-ring, (Kit : K14)

11

707-71-61130

Plunger

12

707-71-70290

Plunger

13

04260-00635

Ball, Steel

14

707-71-91270

Cap

15

707-27-16571

Head, Cylinder

16

707-56-11740

Seal, Dust, (Kit : K14)

17

707-51-11730

Packing, Rod, (Kit : K14)

18

707-51-11640

Ring, Buffer, (Kit : K14)

19

707-52-90850

Bushing

20

07000-55150

O-ring, (Kit : K14)

21

707-35-91640

Ring, Back-up, (Kit : K14)

22

01011-82010

Bolt

23

01011-82015

Bolt

24

707-88-75310

Washer

25

707-88-05210

Collar

26

707-56-11820

Seal, Dust, (Kit : K14)

27

707-88-36541

Ring

28

707-88-05220

Plate

29

700-11-31980

Plate, Name (Limited Supply)

30

707-75-11040

Ring, Snap

31

707-36-16580

Piston

32

707-44-16180

Ring, Piston, (Kit : K14)

33

707-39-16120

Ring, Wear, (Kit : K14)

34

707-44-16910

Ring

35

07000-55100

O-ring, (Kit : K14)

36

07001-05100

Ring, Back-up, (Kit : K14)

37

01310-01216

Screw

38

707-83-13010

Valve

39

07750-01628

Spring

40

707-87-14070

Plug

41

07002-52034

O-ring, (Kit : K14)

42

707-86-11600

Tube

43

707-86-11610

Block

44

01010-81095

Bolt

45

01643-31032

Washer

46

07372-21060

Bolt

47

01643-51032

Washer

48

07000-53035

O-ring, (Kit : K14)

49

207-63-64190

Bracket

50

707-88-21380

Band

51

07372-21240

Bolt

52

01643-51232

Washer

53

07283-33442

Clip, Pipe

54

01597-01009

Nut

55

01643-31032

Washer

56

707-88-22740

Bracket

57

707-88-21380

Band

58

07371-31049

Flange, Split

59

707-88-33040

Cap

60

07372-21035

Bolt

61

01643-51032

Washer
