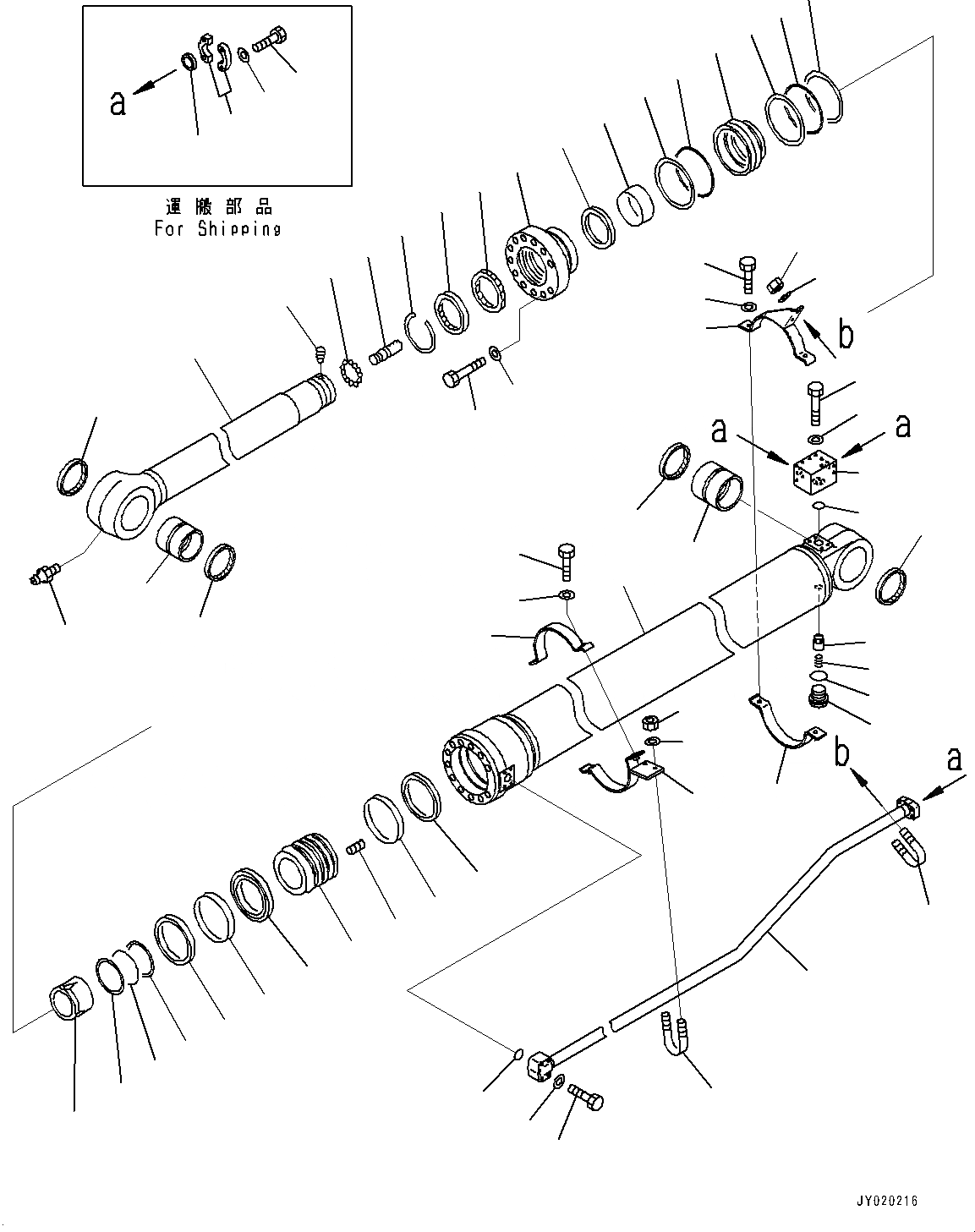

Запчасти Komatsu PC300-8 ЦИЛИНДР РУКОЯТИ, ВНУТР. ЧАСТИ (№-8) ЦИЛИНДР РУКОЯТИ, ЧАС. СИСТ. СМАЗКИ ТИП

|$0

707-01-0A451

Cylinder Assembly

1

707-13-16710

Cylinder

2

707-58-11360

Rod, Piston

3

707-76-10290

Bushing

4

07145-00100

Seal, Dust, (Kit : K12)

5

707-76-10290

Bushing

6

07145-00100

Seal, Dust, (Kit : K12)

7

07020-00000

Fitting, Grease

8

707-71-32800

Collar

9

707-35-91640

Ring, Back-up, (Kit : K12)

10

07000-15150

O-ring, (Kit : K12)

11

707-71-61130

Plunger

12

707-71-70290

Plunger

13

04260-00635

Ball, Steel

14

707-71-91270

Cap

15

707-27-16920

Head, Cylinder

16

07179-13126

Ring, Snap

17

707-56-11740

Seal, Dust, (Kit : K12)

18

707-51-11030

Packing, Rod, (Kit : K12)

19

707-51-11640

Ring, Buffer, (Kit : K12)

20

707-52-90851

Bushing

21

07000-15150

O-ring, (Kit : K12)

22

707-35-91640

Ring, Back-up, (Kit : K12)

23

01010-82085

Bolt

24

707-88-75310

Washer

25

707-36-16580

Piston

26

707-44-16180

Ring, Piston, (Kit : K12)

27

707-39-16120

Ring, Wear, (Kit : K12)

28

707-44-16910

Ring

29

07000-15100

O-ring, (Kit : K12)

30

07001-05100

Ring, Back-up, (Kit : K12)

31

01310-01216

Screw

32

707-83-13010

Valve

33

07750-01628

Spring

34

707-87-14070

Plug

35

07002-12034

O-ring, (Kit : K12)

36

707-86-11600

Tube

37

707-86-11610

Block

38

01010-81095

Bolt

39

01643-31032

Washer

40

07372-21060

Bolt

41

01643-51032

Washer

42

07000-13035

O-ring, (Kit : K12)

43

207-63-64190

Bracket

44

707-88-21390

Band

45

07372-21240

Bolt

46

01643-51232

Washer

47

07283-33442

Clip, Pipe

48

01597-01009

Nut

49

01643-31032

Washer

50

707-88-22740

Bracket

51

707-88-21380

Band

52

07371-31049

Flange, Split

53

707-88-33040

Cap

54

07372-21035

Bolt

55

01643-51032

Washer
