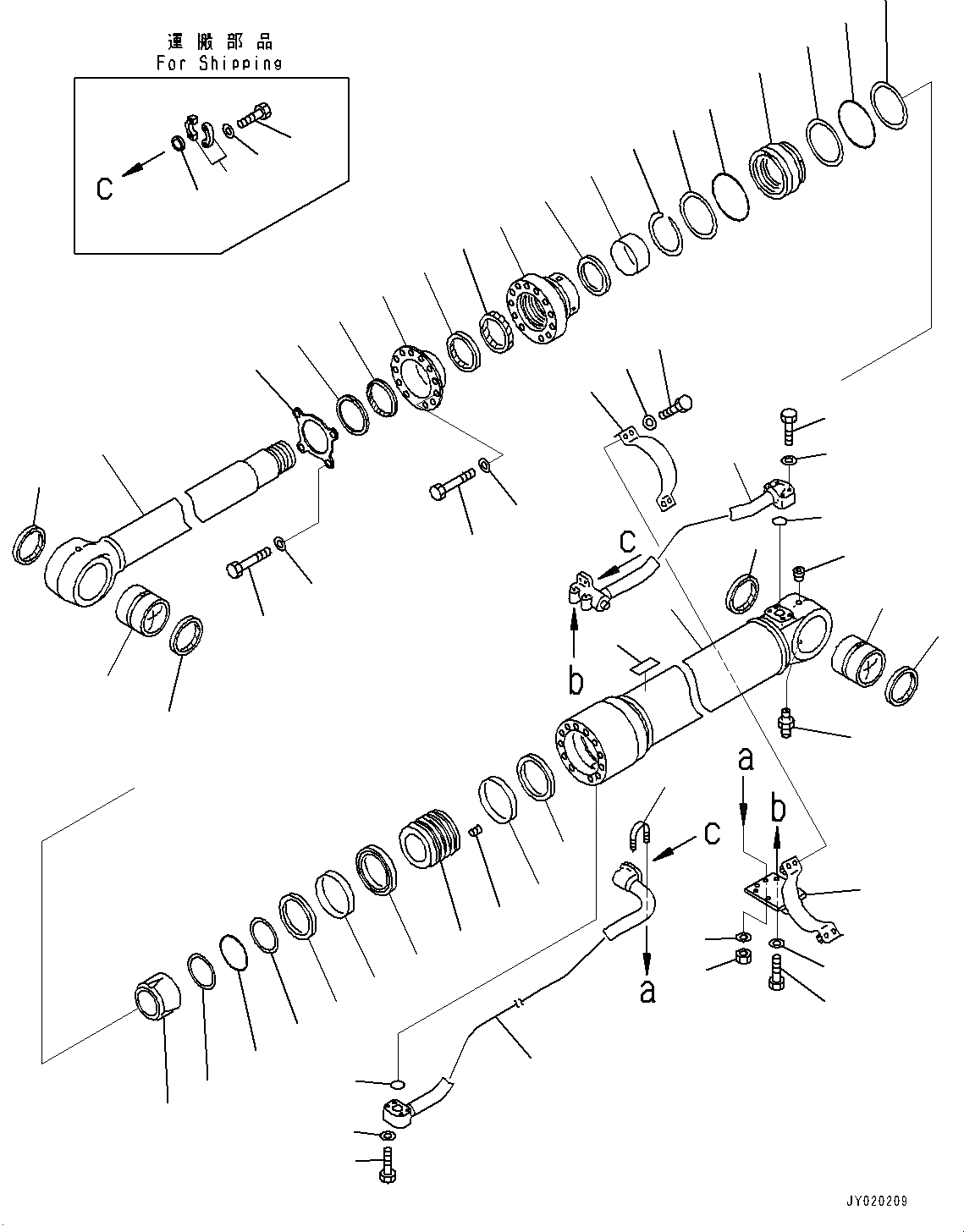

Запчасти Komatsu PC300-8 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№77-77) ЦИЛИНДР СТРЕЛЫ, ЧАС. СИСТ. СМАЗКИ ТИП, EXTREME МОРОЗОУСТОЙЧИВ. СПЕЦИФ-Я (-DEG C)

|$0

707-01-0H101

Cylinder Assembly

1

707-13-14581

Cylinder

2

721-58-10010

Rod

3

707-76-90390

Bushing

4

07145-10090

Seal, Dust, (Kit : K08)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-10130

Bushing

8

07145-10100

Seal, Dust, (Kit : K08)

9

707-71-34800

Collar

10

07000-55130

O-ring, (Kit : K08)

11

707-35-91420

Ring, Back-up, (Kit : K08)

12

707-71-61090

Plunger

13

707-27-14890

Head

14

707-56-10740

Seal, Dust, (Kit : K08)

15

707-75-10160

Ring, Snap

16

707-52-90780

Bushing

17

707-51-10730

Packing, Rod, (Kit : K08)

18

707-51-10640

Ring, Buffer, (Kit : K08)

19

707-35-91420

Ring, Back-up, (Kit : K08)

20

07000-55130

O-ring, (Kit : K08)

21

01011-81800

Bolt

22

707-41-11840

Washer

23

707-88-05440

Plate

24

707-56-10651

Seal, Dust, (Kit : K08)

25

707-88-05430

Collar

26

707-88-36921

Ring

27

01011-81805

Bolt

28

700-11-31980

Plate, Name (Limited Supply)

29

707-36-14650

Piston

30

707-44-14180

Ring, Piston, (Kit : K08)

31

707-39-14110

Ring, Wear, (Kit : K08)

32

707-44-14910

Ring

33

07000-55090

O-ring, (Kit : K08)

34

07001-05090

Ring, Back-up, (Kit : K08)

35

01310-01216

Screw

36

707-86-11580

Tube

37

207-63-54580

Tube

38

207-63-54590

Bracket

39

07372-21060

Bolt

40

01643-51032

Washer

41

07000-53035

O-ring, (Kit : K08)

42

707-88-21370

Band

43

07372-21240

Bolt

44

01643-51232

Washer

45

07283-33442

Clip, Pipe

46

01597-01009

Nut

47

01643-31032

Washer

48

01010-81025

Bolt

49

01643-31032

Washer

50

07371-31049

Flange, Split

51

707-88-33040

Cap

52

07372-21035

Bolt

53

01643-51032

Washer
