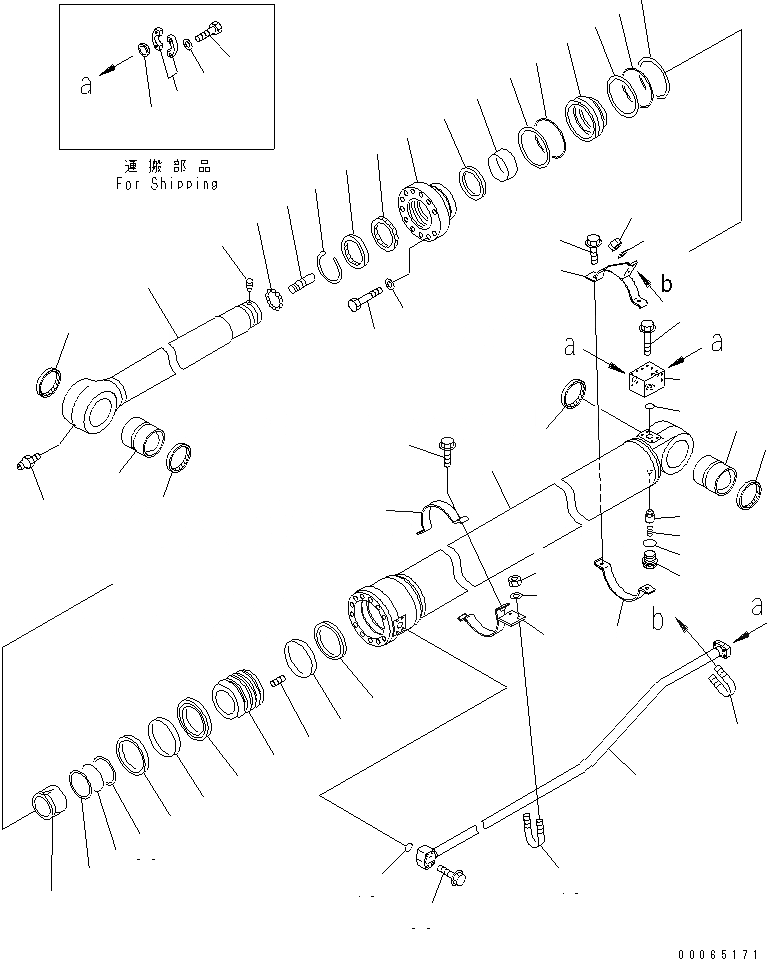

Запчасти Komatsu PC300-8 ЦИЛИНДР РУКОЯТИ(ДЛЯ СИСТЕМА СМАЗКИ 100 ЧАС.)(№-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XX020

CYLINDER GROUP,(FINAL COATING)

|$3

707-01-0C600

ARM CYLINDER ASS'Y

1

707-13-16710

CYLINDER

2

707-76-10130

BUSHING

3

07145-00100

SEAL,DUST (KIT)

4

707-58-11360

ROD

5

707-76-10130

BUSHING

6

07145-00100

SEAL,DUST (KIT)

7

707-71-32800

COLLAR

8

707-35-91640

RING,BACK-UP (KIT)

9

07000-15150

O-RING (KIT)

10

707-71-61130

PLUNGER

11

707-71-70290

PLUNGER

12

04260-00635

BALL

13

707-71-91270

CAP

14

07020-00000

FITTING,GREASE

15

707-27-16920

HEAD

16

198-63-94170

SEAL,DUST (KIT)

17

07179-13126

RING,SNAP

18

707-52-90850

BUSHING

19

707-51-11030

PACKING,ROD (KIT)

20

707-51-11640

RING,BUFFER (KIT)

21

707-35-91640

RING,BACK-UP (KIT)

22

07000-15150

O-RING (KIT)

23

01010-82085

BOLT

24

707-88-75310

WASHER

25

707-36-16580

PISTON

26

01310-01216

SCREW

27

707-44-16180

RING,PISTON (KIT)

28

707-39-16120

RING,WEAR (KIT)

29

707-44-16910

RING

30

07001-05100

RING,BACK-UP (KIT)

31

07000-15100

O-RING (KIT)

32

707-83-13010

VALVE

33

07750-01628

SPRING

34

707-87-14070

PLUG

35

07002-12034

O-RING (KIT)

36

707-86-11600

TUBE

37

707-86-11610

BLOCK

38

01435-01055

BOLT

39

01435-01095

BOLT

40

07000-13035

O-RING (KIT)

41

707-88-22740

BRACKET

42

707-88-21380

BAND

43

207-63-64190

BRACKET

44

707-88-21390

BAND

45

01435-01235

BOLT

46

07283-23442

CLIP

47

01643-31032

WASHER

48

01599-01011

NUT

49

707-88-33040

CAP

50

07371-31049

FLANGE,SPLIT

51

07372-21035

BOLT

52

01643-51032

WASHER

|$57

707-99-67090

SERVICE KIT
