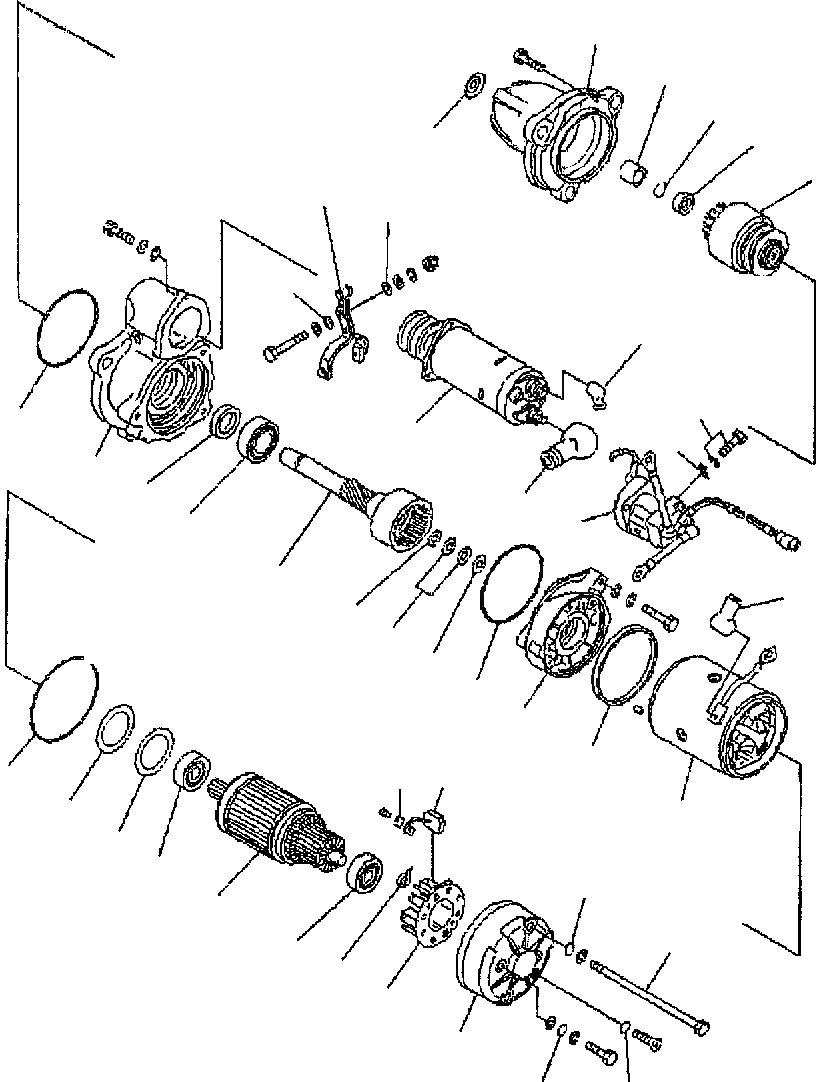

Запчасти Komatsu PC300-7 СТАРТЕР (KW) (ВНУТР. ЧАСТИ) AA ДВИГАТЕЛЬ [SAADE-A заводской номер 8-UP]

|$1

600-863-8110

STARTING MOTOR ASS'Y ,(11KW)

1

KD0-23100-0430

ARMATURE ASS'Y

2

KD1-0456-62057

BEARING,BALL,FRONT

3

KD1-0456-62017

BEARING,BALL,REAR

4

KD0-23200-0670

YOKE ASS'Y

5

KD0-23310-1740

FRONT BRACKET ASS'Y

6

KD7-23351-0080

METAL

7

KD1-23761-0010

COVER

8

KD0-23120-0180

SHAFT ASS'Y

9

KD0-09201-0850

BEARING BALL

10

KD1-23181-0020

STOPPER,PINION

11

KD1-23914-0020

RING,CLIP

12

KD0-23500-0970

CLUTCH ASS'Y,OVER RUNNING

13

KD0-23600-0410

CENTER BRACKET A

14

KD0-23611-1100

BRACKET,CENTER

15

KD0-23320-0290

SHIFT LEVER ASS'Y

16

KD0-47100-4650

MAGNETIK SWITCH A

17

KD0-23710-0220

BRACKET, REAR

18

KD7-23750-0150

BRUSH HOLDER A

19

KD1-23913-0040

SPRING,BRUSH

20

KD0-23740-0351

BRUSH ASS'Y

21

KD1-25922-2800

PLATE

22

KD0-09001-4380

BOLT

23

KD0-25000-8331

SWITCH ASS'Y

24

KD0-0270-06602

BOLT

25

KD0-47927-1390

HOLDER

26

KD1-23921-0130

WASHER

27

KD1-23921-0140

WASHER

28

KD1-23941-0040

WASHER, INSULATE

29

KD0-09057-0110

WASHER

30

KD0-09057-0190

WASHER

31

KD7-09210-2580

SEAL ASS'Y
