Запчасти Komatsu PC300-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (8/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

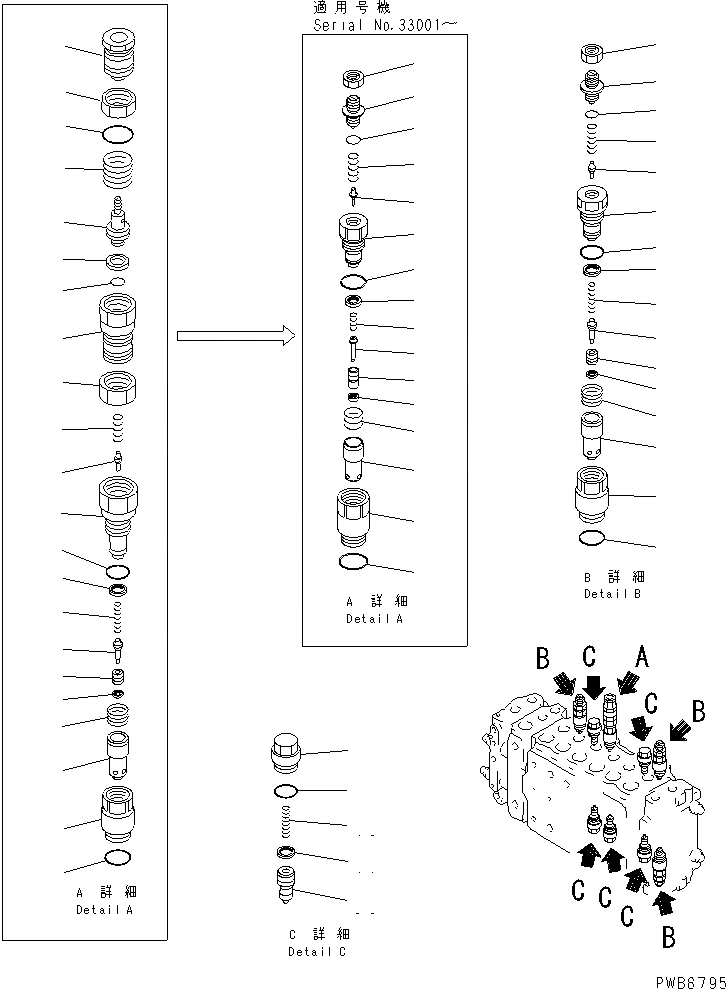

Схема запчастей Komatsu PC300-6Z - ОСНОВН. КЛАПАН (-АКТУАТОР) (8/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

Артикул

Название

Примечание

Количество

|$5

723-47-16501

CONTROL VALVE

|$6

723-47-16500

CONTROL VALVE

|$7

723-47-16103

CONTROL VALVE

|$8

723-47-16102

CONTROL VALVE

|$9

723-47-16101

CONTROL VALVE

|$11

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

1

SLEEVE

2

SLEEVE

3

POPPET

4

PISTON

5

PLUG

6

POPPET

7

SCREW

8

SPRING

9

SPRING

10

SPRING

11

SEAL

12

SEAL

13

709-25-11390

O-RING

14

O-RING

15

O-RING

16

NUT

|$28

723-40-90101

VALVE ASS'Y,SUCTION AND SAFETY

|$29

723-40-90100

VALVE ASS'Y,SUCTION AND SAFETY

17

SLEEVE

18

SLEEVE

19

POPPET

20

PISTON

20

PISTON

21

SLEEVE

22

POPPET

23

UNION

24

PISTON

25

SPRING

26

SPRING

27

SPRING

28

SEAL

29

SEAL

30

709-25-11390

O-RING

31

O-RING

31

O-RING

32

NUT

33

NUT

34

HOLDER

35

O-RING

35

O-RING

36

SPRING

37

SEAL

|$54

723-40-85100

VALVE ASS'Y,SUCTION

38

SLEEVE

39

VALVE

40

SPRING

41

SEAL

42

709-25-11390

O-RING

|$60

709-70-74203

VALVE ASS'Y

43

SLEEVE

44

SLEEVE

45

POPPET

46

PISTON

47

PLUG

48

POPPET

49

SCREW

50

SPRING

51

SPRING

52

SPRING

53

SEAL

54

SEAL

55

709-25-11390

O-RING

56

O-RING

57

O-RING

58

NUT

Выбрано товаров: 71
