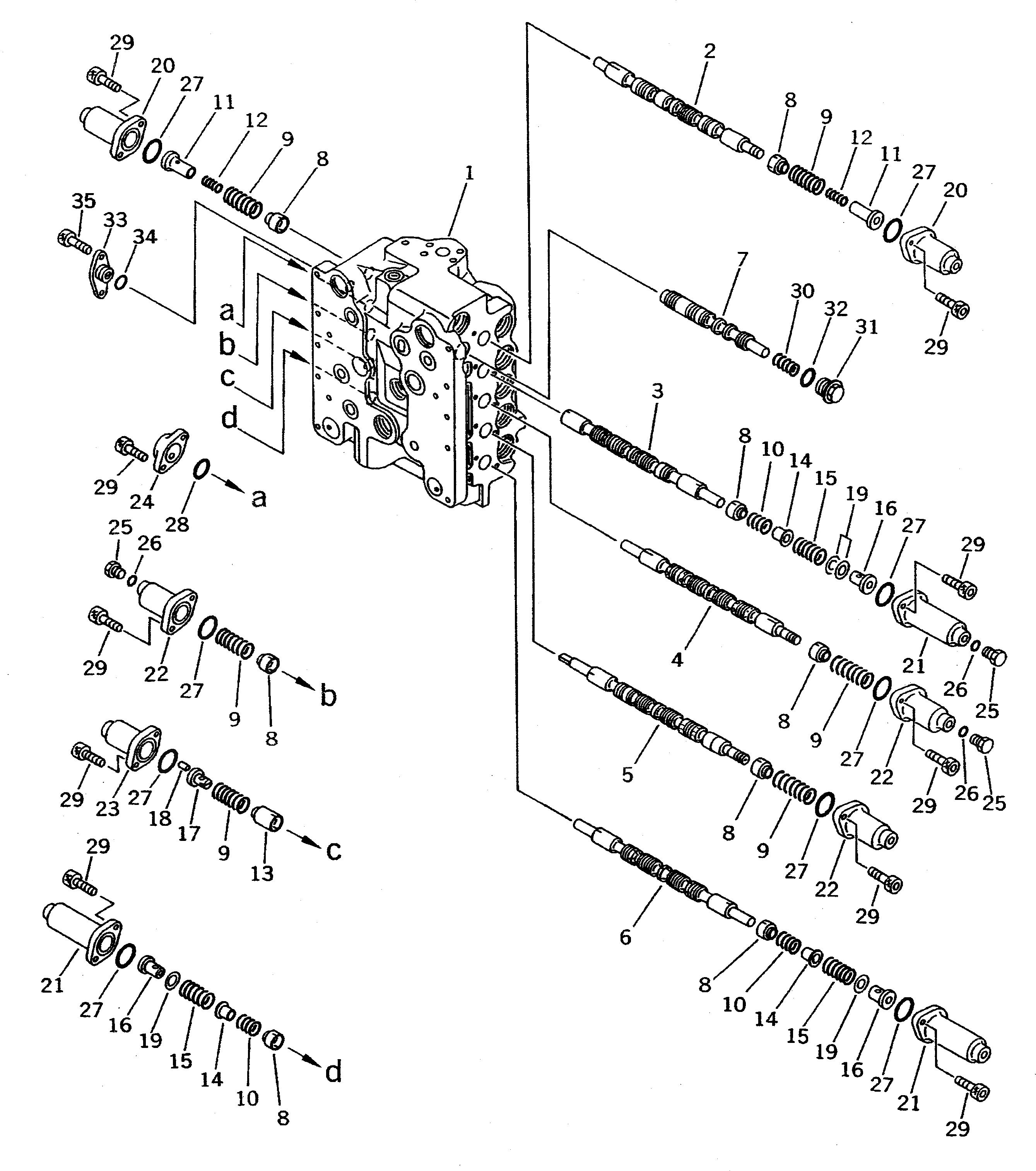

Запчасти Komatsu PC300-5 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-99-13104

CONTROL VALVE ASS'Y

|1

709-99-13103

CONTROL VALVE ASS'Y

|1

709-99-13102

CONTROL VALVE ASS'Y

|1

709-95-93104

VALVE ASS'Y

|1

709-95-93103

VALVE ASS'Y

|1

709-95-93102

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL,SWING

|2

SPOOL,SWING

3

SPOOL,BOOM HIGH

4

SPOOL,SERVICE

5

SPOOL,ARM LOW

6

SPOOL,R.H. TRAVEL

7

SPOOL

8

709-94-91130

RETAINER

9

709-94-91120

SPRING

10

709-94-92510

SPRING

11

709-94-91170

RETAINER

12

709-94-91180

SPRING

13

709-94-92630

RETAINER

14

709-94-92530

RETAINER

15

709-94-92520

SPRING

16

709-94-92540

RETAINER

17

709-94-92620

RETAINER

18

04022-04008

PIN

19

709-94-92550

SPACER¤ 0.5MM

20

709-94-91720

CASE

21

709-94-92560

CASE

22

709-94-91210

CASE

23

709-94-92610

CASE

24

709-74-92590

PLATE

25

07040-12012

PLUG

26

07002-02034

O-RING

27

07430-71380

O-RING

28

709-74-92170

O-RING

29

01252-30820

BOLT

30

709-94-92570

SPRING

31

709-74-92230

PLUG

32

07002-03034

O-RING

33

709-94-91240

PLATE

34

700-13-31161

O-RING

35

01252-30820

BOLT
