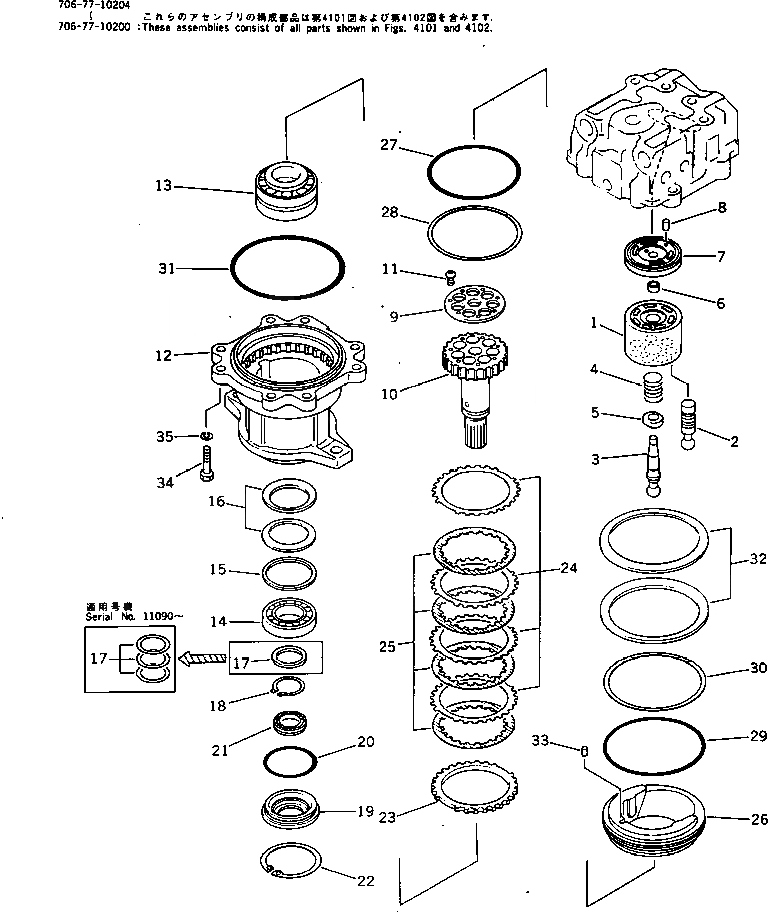

Запчасти Komatsu PC300-3 МОТОР ПОВОРОТА (/) (С ПОВОРОТН. МЕХАНИЧ. ТОРМОЗ.) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|1

706-77-10103

MOTOR ASS'Y

|1

706-77-10102

MOTOR ASS'Y

|1

706-77-10101

MOTOR ASS'Y

|1

706-77-10100

MOTOR ASS'Y

1

706-87-42190

BLOCK,CYLINDER

|1

706-87-40091

BLOCK,CYLINDER

2

706-77-42160

PISTON SUB ASS'Y

3

706-77-42081

SHAFT,CENTER

4

706-77-42110

SPRING

5

706-77-43130

RING,CENTER

6

706-77-42071

BUSHING

7

706-77-42830

PLATE,VALVE

|7

706-77-42851

PLATE,VALVE

8

04020-01024

PIN,DOWEL

9

706-77-42260

RETAINER

10

706-77-42861

SHAFT,DRIVE

|10

706-77-42860

SHAFT,DRIVE

11

706-75-41271

SCREW

12

706-77-42022

CASE,BRAKE

|12

706-77-42021

CASE,BRAKE

13

706-77-42881

BEARING

|13

706-77-42880

BEARING

14

706-77-42890

BEARING

15

706-77-42041

SEAT

|15

706-77-42040

SEAT

16

706-77-42051

SPRING

|16

706-77-42050

SPRING

17

706-77-05010

SPACER KIT

|17

SPACER¤ 2.3MM

|17

SPACER¤ 2.5MM

|17

SPACER¤ 2.7MM

|17

706-77-42030

SPACER

18

04064-06525

RING,SNAP

19

706-77-42060

COVER

20

07000-02115

O-RING

21

706-77-42920

SEAL,OIL

22

04071-00130

RING,SNAP

23

706-77-91331

PLATE

24

706-77-91341

PLATE

25

706-77-91350

DISC

26

706-77-91490

PISTON,BRAKE

|26

706-77-91390

PISTON,BRAKE

27

07000-15200

O-RING

28

07001-05200

RING,BACK-UP

29

07000-15220

O-RING

30

07001-05220

RING,BACK-UP

31

07000-05250

O-RING

32

706-77-91410

SPRING

33

706-75-42830

PIN,DOWEL

34

01010-51860

BOLT

35

01602-21852

WASHER,SPRING
