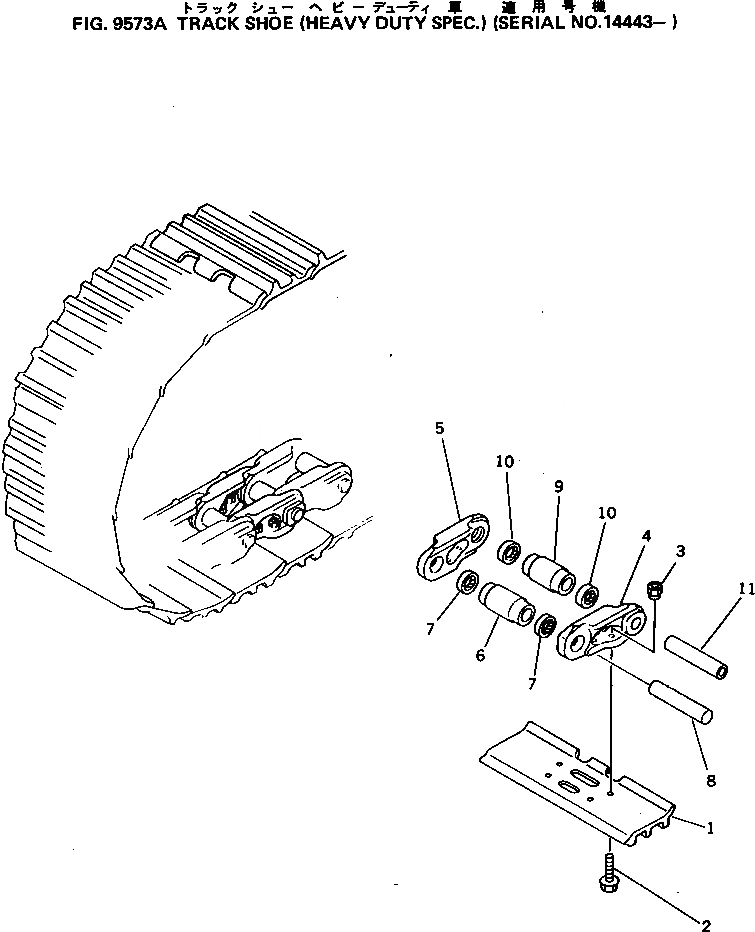

Запчасти Komatsu PC300-3 ГУСЕНИЦЫ (УСИЛ. СПЕЦ-Я.)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|1

208-32-02001

TRACK SHOE ASS'Y

|1

208-32-02000

TRACK SHOE ASS'Y

1

208-32-51112

SHOE,TRACK

|1

208-32-51111

SHOE,TRACK

2

208-32-51210

BOLT¤ SHOE (KIT)

3

208-32-51220

NUT¤ SHOE (KIT)

|4

208-32-00101

TRACK LINK ASS'Y

|4

208-32-00100

TRACK LINK ASS'Y

4

208-32-51121

LINK,TRACK¤ L.H.

5

208-32-51131

LINK,TRACK¤ R.H.

6

208-32-51140

BUSHING

7

154-32-11283

SEAL,DUST¤ REGULAR¤ W-TYPE

8

154-820-1153

PIN

9

208-32-51170

BUSHING

10

154-32-11260

SEAL,DUST¤ MASTER¤ E-TYPE

11

208-32-51190

PIN

|11

154-820-1192

PIN

|1

208-32-05050

SHOE BOLT AND NUT K.

1

208-32-51210

BOLT¤ SHOE

2

208-32-51220

NUT¤ SHOE

6

154-98-09411

BUSHING¤ REGULAR

8

154-98-09212

PIN¤ REGULAR

9

154-98-09441

BUSHING¤ MASTER

11

208-98-09030

PIN¤ MASTER

|11

154-98-09242

PIN¤ MASTER

6

154-98-09431

BUSHING¤ REGULAR

8

154-98-09232

PIN¤ REGULAR

9

154-98-09461

BUSHING¤ MASTER

11

208-98-09040

PIN¤ MASTER

|11

154-98-09262

PIN¤ MASTER
