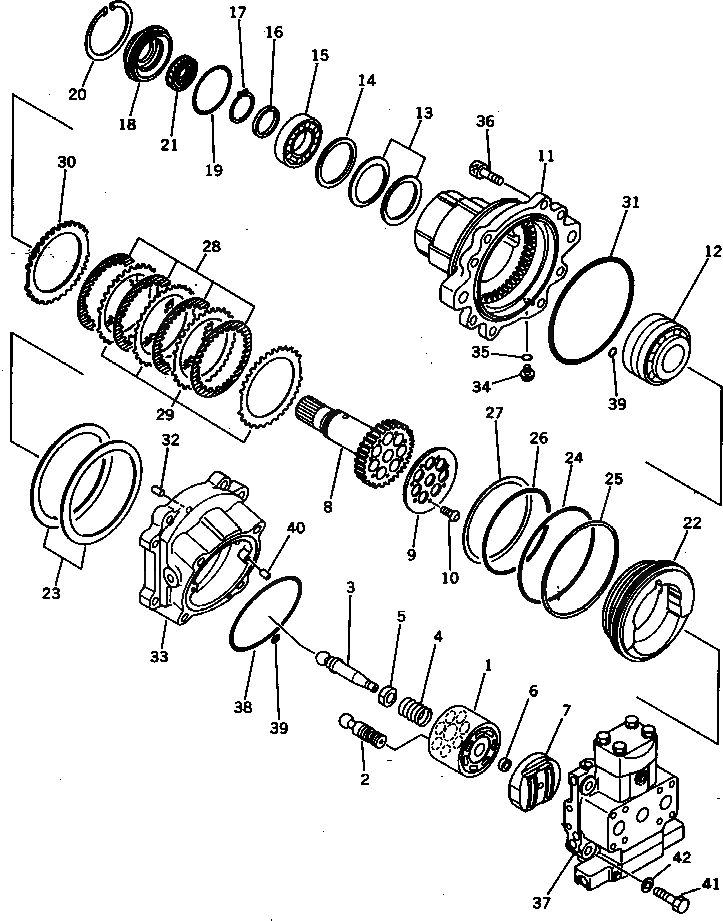

Запчасти Komatsu PC300-3 МОТОР ХОДА (/) (УСИЛ. СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|1

706-87-01200

TRAVEL MOTOR ASS'Y

|1

706-87-00101

TRAVEL MOTOR ASS'Y

|1

706-87-40101

MOTOR ASS'Y

1

BLOCK,CYLINDER

2

PISTON SUB ASS'Y

3

SHAFT,CENTER

4

SPRING

5

RING,CENTER

6

BUSHING

7

PLATE,VALVE

8

SHAFT,DRIVE

9

RETAINER

10

SCREW

11

CASE,BRAKE

12

BEARING

13

SPRING

14

SEAT

15

BEARING

16

SPACER

17

RING,SNAP

18

COVER

19

O-RING

20

RING,SNAP

21

SEAL,OIL

22

PISTON,BRAKE

23

SPRING

24

O-RING

25

RING,BACK-UP

26

O-RING

27

RING,BACK-UP

28

PLATE

29

DISC

30

PLATE

31

O-RING

32

PIN,DOWEL

33

CASE,MOTOR

34

706-73-71450

PLUG

35

07002-11423

O-RING

36

BOLT

37

706-87-50101

VALVE ASS'Y

38

O-RING

39

O-RING

40

PIN,DOWEL

41

BOLT

42

WASHER
