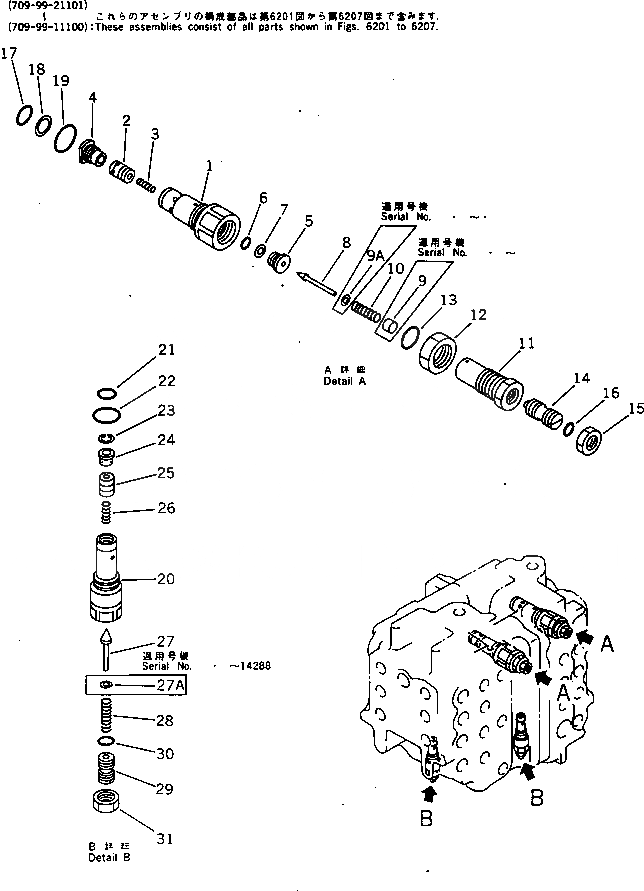

Запчасти Komatsu PC300-3 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-99-21101

CONTROL VALVE ASS'Y

|1

709-99-21100

CONTROL VALVE ASS'Y

|1

709-99-11109

CONTROL VALVE ASS'Y

|1

709-99-11108

CONTROL VALVE ASS'Y

|1

709-99-11107

CONTROL VALVE ASS'Y

|1

709-99-11105

CONTROL VALVE ASS'Y

|1

709-99-11104

CONTROL VALVE ASS'Y

|1

709-99-11103

CONTROL VALVE ASS'Y

|1

709-99-11102

CONTROL VALVE ASS'Y

|1

709-99-11101

CONTROL VALVE ASS'Y

|1

709-99-11100

CONTROL VALVE ASS'Y

|1

709-90-51100

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-90-51140

SPRING

4

709-90-51250

PLUG

5

709-90-51160

SEAT

6

07000-22016

O-RING

7

07001-02016

RING,BACK-UP

8

700-80-61190

POPPET

9

709-90-51260

RETAINER

9A

700-80-51240

SPACER

10

709-20-51231

SPRING

|10

720-68-15560

SPRING

11

700-90-51140

SPRING

12

709-90-51190

PLUG

13

07002-03034

O-RING

14

709-90-51150

SCREW

15

709-90-51170

NUT

16

07000-02011

O-RING

17

700-93-11320

O-RING

18

700-93-11330

RING,BACK-UP

19

07002-03634

O-RING

|20

709-90-59103

RELIEF VALVE ASS'Y

|20

709-90-59102

RELIEF VALVE ASS'Y

|20

709-90-59101

RELIEF VALVE ASS'Y

|20

709-90-59100

RELIEF VALVE ASS'Y

20

SLEEVE

|20

SLEEVE

|20

SLEEVE

|20

SLEEVE

21

700-22-11410

O-RING

22

07002-02434

O-RING

23

700-20-51550

RING,SNAP

24

700-20-51540

RETAINER

25

VALVE

|25

VALVE

26

709-70-51210

SPRING

|26

700-20-51610

SPRING

27

709-70-51420

POPPET

|27

709-70-51220

POPPET

|27

700-80-61190

POPPET

27A

700-80-51240

SPACER

28

700-20-51580

SPRING

|28

709-70-51310

SPRING

|28

700-20-51580

SPRING

29

700-20-51340

SCREW

|29

709-70-51320

SCREW

|29

700-20-51340

SCREW

|29

700-20-51370

SCREW

|29

700-20-51340

SCREW

30

07000-02011

O-RING

31

01582-11411

NUT
