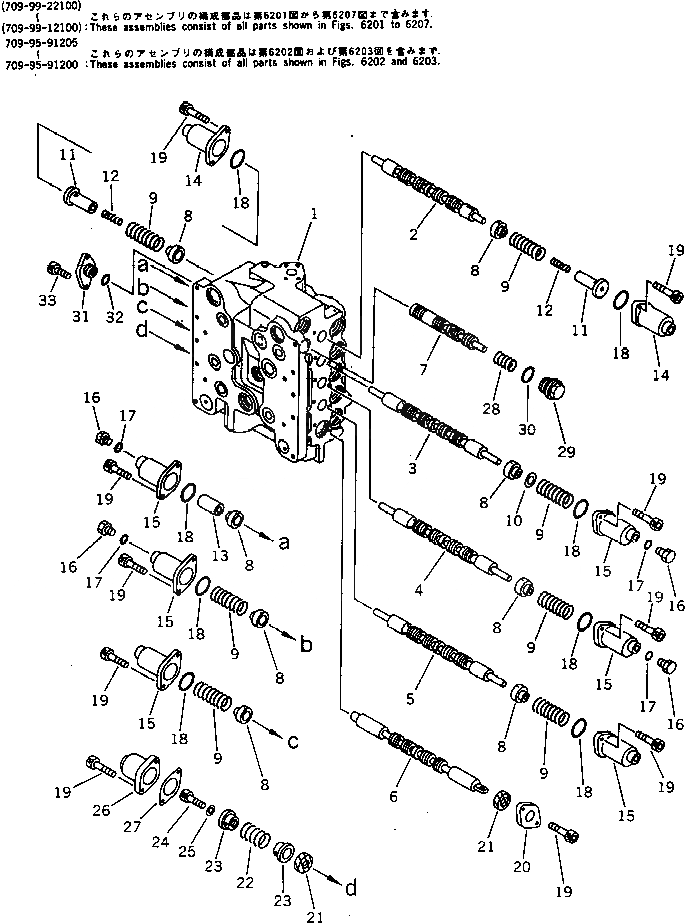

Запчасти Komatsu PC300-3 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-99-21101
CONTROL VALVE ASS'Y
|1
709-99-21100
CONTROL VALVE ASS'Y
|1
709-99-11109
CONTROL VALVE ASS'Y
|1
709-99-11108
CONTROL VALVE ASS'Y
|1
709-99-11107
CONTROL VALVE ASS'Y
|1
709-99-11105
CONTROL VALVE ASS'Y
|1
709-99-11104
CONTROL VALVE ASS'Y
|1
709-99-11103
CONTROL VALVE ASS'Y
|1
709-99-11102
CONTROL VALVE ASS'Y
|1
709-99-11101
CONTROL VALVE ASS'Y
|1
709-99-11100
CONTROL VALVE ASS'Y
|1
709-95-91105
VALVE ASS'Y
|1
709-95-91104
VALVE ASS'Y
|1
709-95-91102
VALVE ASS'Y
|1
709-95-00011
VALVE ASS'Y
|1
709-95-91101
VALVE ASS'Y
|1
709-95-91100
VALVE ASS'Y
1
BODY
|1
BODY
|1
BODY,VALVE
|1
BODY
2
SPOOL,SWING
3
SPOOL,BOOM HIGH
4
SPOOL,SERVICE
5
SPOOL,ARM
6
SPOOL,L.H. TRAVEL
|6
SPOOL,L.H. TRAVEL
7
SPOOL
8
709-94-91130
RETAINER
9
709-94-91120
SPRING
10
709-94-91760
SPACER¤ 1.0MM
11
709-94-91170
RETAINER
12
709-94-91180
SPRING
13
700-93-11361
SPACER
14
709-94-91720
CASE
15
709-94-91210
CASE
16
07040-12012
PLUG
|16
701-30-63130
PLUG
17
07002-02034
O-RING
18
07430-71380
O-RING
19
01252-30820
BOLT
20
709-94-91460
PLATE
21
700-94-11710
SEAL
22
709-94-91910
SPRING
23
700-93-11870
RETAINER
24
01252-31016
BOLT
25
01643-31032
WASHER
26
700-93-11220
CASE
27
709-94-91470
PLATE
28
709-94-91160
SPRING
29
709-74-92230
PLUG
30
07002-03034
O-RING
31
709-94-91240
PLATE
32
700-13-31161
O-RING
33
01252-30820
BOLT
Выбрано товаров: 55
