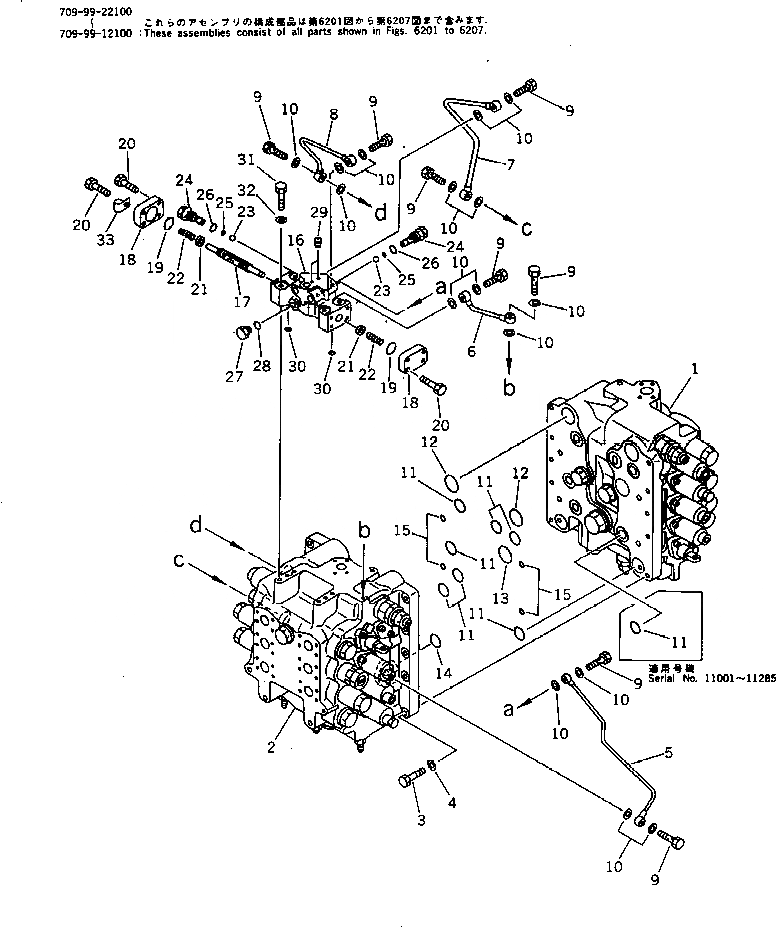

Запчасти Komatsu PC300-3 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-99-21101
CONTROL VALVE ASS'Y
|1
709-99-21100
CONTROL VALVE ASS'Y
|1
709-99-11109
CONTROL VALVE ASS'Y
|1
709-99-11108
CONTROL VALVE ASS'Y
|1
709-99-11107
CONTROL VALVE ASS'Y
|1
709-99-11105
CONTROL VALVE ASS'Y
|1
709-99-11104
CONTROL VALVE ASS'Y
|1
709-99-11103
CONTROL VALVE ASS'Y
|1
709-99-11102
CONTROL VALVE ASS'Y
|1
709-99-11101
CONTROL VALVE ASS'Y
|1
709-99-11100
CONTROL VALVE ASS'Y
1
709-95-91105
VALVE ASS'Y
|1
709-95-91104
VALVE ASS'Y
|1
709-95-91102
VALVE ASS'Y
|1
709-95-00011
VALVE ASS'Y
|1
709-95-91101
VALVE ASS'Y
|1
709-95-91100
VALVE ASS'Y
2
709-94-91104
VALVE ASS'Y
|2
709-94-91103
VALVE ASS'Y
|2
709-94-91102
VALVE ASS'Y
|2
709-94-00010
VALVE ASS'Y
|2
709-94-91100
VALVE ASS'Y
3
01010-51250
BOLT
4
01643-31232
WASHER
5
709-99-11130
TUBE
6
709-99-11110
TUBE
7
709-99-11140
TUBE
8
709-99-11120
TUBE
9
07206-30508
BOLT,JOINT
10
07005-00812
GASKET
11
07000-13032
O-RING
|11
07000-13032
O-RING
12
07000-13040
O-RING
|12
07000-03040
O-RING
13
07000-13040
O-RING
14
07000-13040
O-RING
15
07000-02010
O-RING
|16
709-70-91102
SHUTTLE VALVE ASS'Y
|16
709-70-91101
SHUTTLE VALVE ASS'Y
16
BODY
|16
BODY
17
SPOOL
18
709-70-91150
PLATE
19
07000-13025
O-RING
20
01010-50825
BOLT
21
706-73-77140
PLATE
22
709-70-91130
SPRING
23
04260-00793
BALL
24
709-70-91170
PLUG
25
07000-01007
O-RING
26
07002-01423
O-RING
27
07040-11409
PLUG
28
07002-01423
O-RING
29
07043-70108
PLUG
30
07000-11009
O-RING
31
01010-50855
BOLT
32
01643-30823
WASHER
33
08036-30810
CLIP
Выбрано товаров: 58
