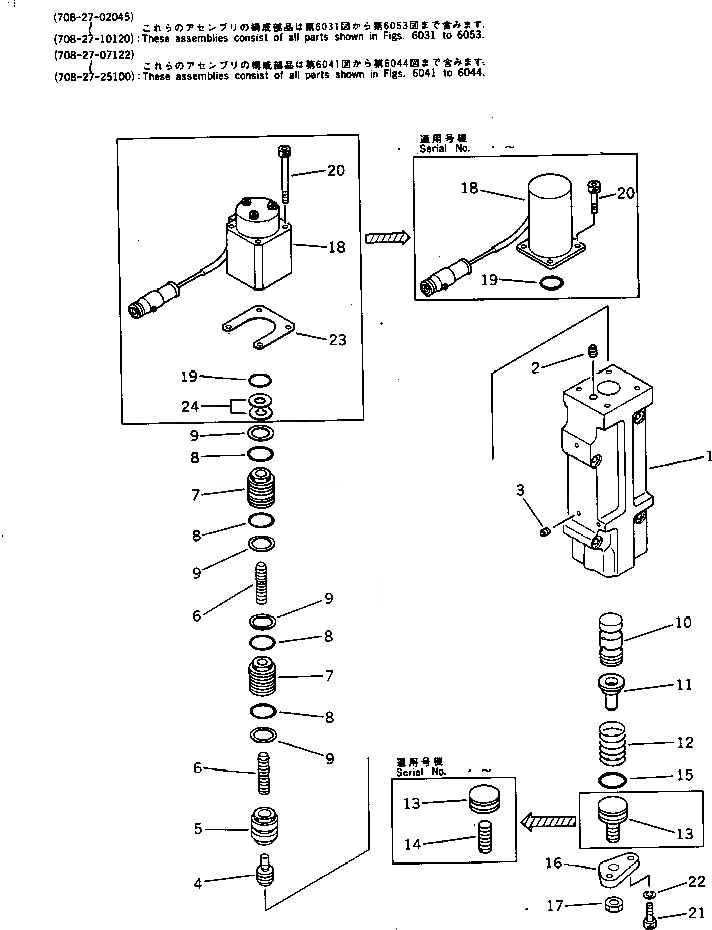

Запчасти Komatsu PC300-3 СЕРВОКЛАПАН¤ ПЕРЕДН. (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-27-02015
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02014
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02013
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02012
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02011
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-02010
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|1
708-27-10100
PUMP ASS'Y,(HPV 160+160)
|1
708-27-07112
SERVO VALVE ASS'Y,FRONT
|1
708-27-07111
SERVO VALVE ASS'Y,FRONT
|1
708-27-07110
SERVO VALVE ASS'Y,FRONT
|1
708-27-15100
SERVO VALVE ASS'Y,FRONT
|1
708-27-07710
VALVE ASS'Y
|1
708-27-18100
VALVE ASS'Y
|1
708-23-07090
BODY ASS'Y
|1
708-23-07051
BODY ASS'Y
|1
708-23-07050
BODY ASS'Y
1
BODY
|1
BODY
|1
BODY
2
PLUG
3
EXPANDER
|3
PLUG
4
708-23-18120
PISTON
5
708-23-18130
SLEEVE
6
708-25-18120
PISTON
|6
708-23-18140
PISTON
7
708-23-18150
SLEEVE
8
07000-12016
O-RING
9
07001-02016
RING
10
708-23-18161
SPOOL
11
708-23-18170
SEAT
12
708-23-18181
SPRING
13
708-23-15160
PLUG
|13
708-23-15140
PLUG
14
708-25-15340
SCREW
15
07000-02018
O-RING
16
708-23-18210
COVER
17
01580-10806
NUT
18
708-23-18221
SOLENOID ASS'Y
|18
708-23-18220
SOLENOID ASS'Y
19
07000-02016
O-RING
20
708-23-18250
BOLT
|20
720-68-19750
BOLT
21
708-25-15320
BOLT
|21
01252-30616
BOLT
22
01602-20619
WASHER
23
708-25-18571
SHIM¤ 0.50MM
|23
708-25-18570
SHIM¤ 0.50MM
24
708-25-18580
SHIM¤ 0.50MM
Выбрано товаров: 49
