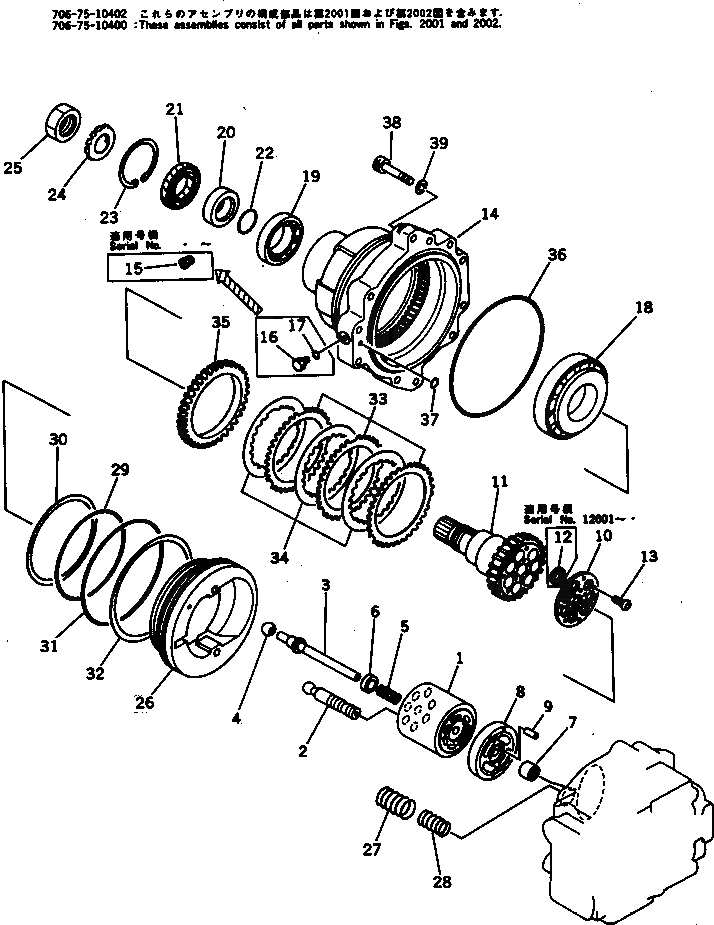

Запчасти Komatsu PC300-3 МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

706-75-10402

TRAVEL MOTOR ASS'Y

|$1

706-75-10400

TRAVEL MOTOR ASS'Y

1

706-75-41091

BLOCK,CYLINDER

2

706-75-41163

PISTON SUB ASS'Y

3

706-75-42080

SHAFT,CENTER

4

706-75-41220

BALL,CENTER

5

706-75-41110

SPRING

6

706-75-41130

RING,CENTER

7

706-75-40010

BEARING

8

706-75-42840

PLATE,VALVE

9

04020-00820

PIN,DOWEL

10

706-75-42260

RETAINER

10

706-75-41263

RETAINER

11

706-75-42962

SHAFT,DRIVE

11

706-75-42960

SHAFT,DRIVE

12

706-75-41251

HOLDER

13

706-75-42270

SCREW

13

706-75-41271

SCREW

14

706-75-00070

BRAKE CASE SUB ASS'Y

14

706-75-42060

CASE,BRAKE

14

CASE,BRAKE

15

PLUG

16

706-75-71420

PLUG

17

07002-10823

O-RING

18

706-75-42880

BEARING

19

706-76-40890

BEARING

20

706-75-42910

RING

21

706-76-41931

SEAL,OIL

21

706-76-40920

SEAL,OIL

22

07000-03040

O-RING

23

04065-09030

RING,SNAP

24

706-75-40940

WASHER,LOCK

25

01530-03912

NUT

26

706-75-91382

PISTON,BRAKE

27

706-75-91420

SPRING

28

706-75-91410

SPRING

29

07000-15155

O-RING

30

07001-05155

RING,BACK-UP

31

07000-15170

O-RING

32

07001-05170

RING,BACK-UP

33

706-75-91340

PLATE

34

706-75-91350

DISC

35

706-75-91330

PLATE

36

07000-05195

O-RING

37

07000-12010

O-RING

38

706-75-40360

BOLT

39

01602-21442

WASHER,SPRING
