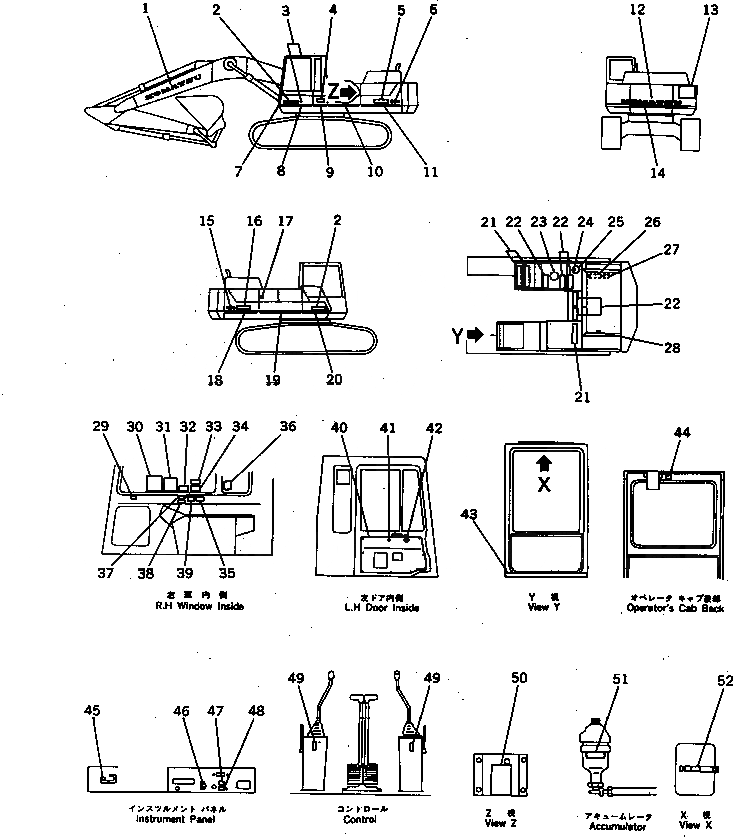

Запчасти Komatsu PC300-3 МАРКИРОВКА(ПОРТУГАЛ.-АНГЛ.)(ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(С АВТОМАТИЧ. DECEL.¤ПОВОРОТН. MECHA.ТОРМОЗ.¤-STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

207-00-31320

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-22643

PLATE, NAME,(LIMITED SUPPLY)

4

205-00-72430

RIVET

4

205-00-71540

SCREW

5

207-00-31120

PLATE, MARK,PC300

6

205-00-71240

PLATE, MARK,SYMBOL

7

205-00-73270

LINE, STRIPE, 46MM

8

205-00-71120

LINE, STRIPE, 1030MM

9

205-00-71130

LINE, STRIPE, 476MM

10

207-00-31150

LINE, STRIPE, 1054MM

11

207-00-31160

LINE, STRIPE, 1294MM

12

207-00-31111

PLATE, MARK,KOMATSU

13

09133-02000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

14

207-00-31210

LINE, STRIPE, 4200MM

15

205-00-71240

PLATE, MARK,SYMBOL

16

207-00-31120

PLATE, MARK,PC300

17

205-00-73360

PLATE, OPERATING,HYDRAULIC OIL TANK

18

207-00-31170

LINE, STRIPE, 1109MM

19

207-00-31180

LINE, STRIPE, 1406MM

20

207-00-31190

LINE, STRIPE, 831MM

21

21T-54-11620

SEAT,NONSKID

22

154-54-23260

SEAT,NONSKID

23

09669-00002

PLATE, CAUTION,FUEL TANK

24

09653-02000

PLATE, SAFETY,HYDRAULIC TANK CAP

25

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

26

09650-21103

PLATE, INSTRUCTION,RADIATOR

27

09668-02000

PLATE, SAFETY,RADIATOR CAP

28

09667-02000

PLATE, SAFETY

29

207-00-13460

PLATE, CAUTION

30

205-00-66110

PLATE, OPERATING

31

205-00-75490

PLATE

32

205-00-65160

PLATE

33

207-00-31350

PLATE, CAUTION

34

205-00-64230

PLATE

35

207-00-13480

PLATE, CAUTION

36

205-00-71650

PLATE, CAUTION

37

09651-02000

PLATE, SAFETY,BEFORE OPERATING

38

09131-02000

PLATE, SAFETY,SWING LOCK LEVER

39

09173-02000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

40

207-54-33160

COVER

41

205-54-72350

CLIP ASS'Y

42

205-00-71340

PLATE, OPERATING

43

205-54-76480

PLATE

44

207-00-13450

PLATE

45

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

46

09683-21060

PLATE, OPERATING,STARTING SWITCH

47

205-00-74240

PLATE, OPERATING,SWING MECHANICAL BRAKE

48

205-00-74250

PLATE, OPERATING,AUTO DECELERATION

49

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

50

205-00-75530

PLATE, OPERATING

51

205-00-75540

PLATE

52

207-00-13510

PLATE, SAFETY
