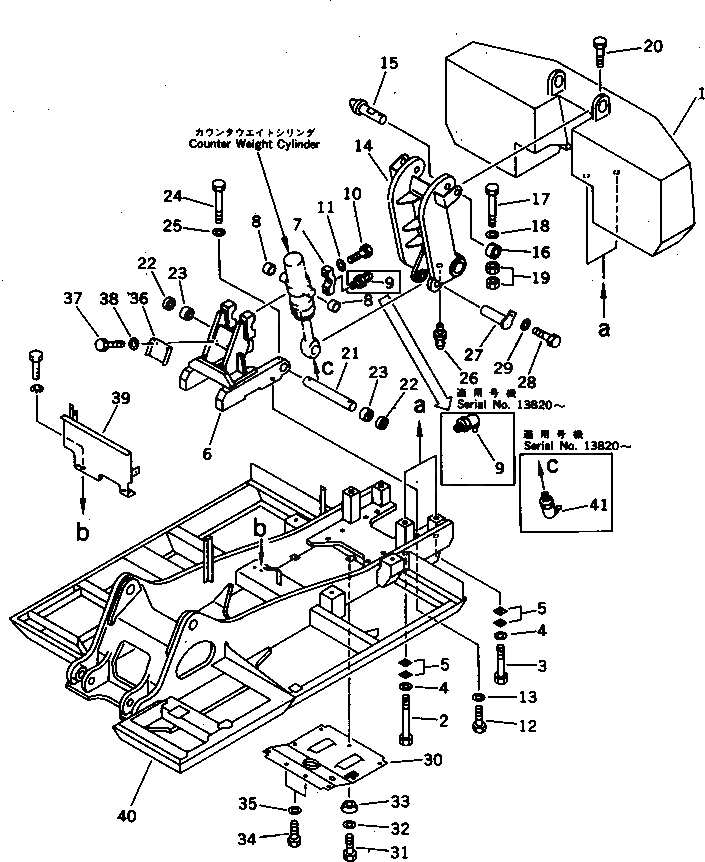

Запчасти Komatsu PC300-3 СЪЕМ ПРОТИВОВЕСА ОПЦИОННЫЕ КОМПОНЕНТЫ

1

207-46-32170

WEIGHT

2

207-46-32180

BOLT

3

207-46-32120

BOLT

4

207-46-32130

WASHER

5

207-46-00010

SHIM ASS'Y

5

SHIM, 0.5MM

5

SHIM, 1.0MM

5

SHIM, 2.0MM

|$8

207-46-00021

BRACKET ASS'Y

|$9

207-46-00020

BRACKET ASS'Y

6

207-46-31530

BRACKET

7

207-46-31550

CAP

8

207-46-31580

BUSHING

9

07020-00900

FITTING,GREASE

9

07020-00000

FITTING,GREASE

10

01011-52700

BOLT

11

01643-32780

WASHER

12

01010-82785

BOLT

13

01643-32780

WASHER

14

207-46-31540

LEVER

15

207-46-32190

PIN

16

207-46-32210

COLLAR

17

01011-51225

BOLT

18

01643-31232

WASHER

19

01580-11210

NUT

20

207-46-31620

BOLT

20

01016-52080

BOLT

21

207-46-31560

SHAFT

22

07145-00110

SEAL

23

207-70-12161

BUSHING

24

01011-52080

BOLT

25

01643-32060

WASHER

26

07020-00000

FITTING,GREASE

27

207-46-31570

PIN

28

01010-51645

BOLT

29

01643-31645

WASHER

30

207-54-31970

COVER

31

01010-51230

BOLT

32

01643-31232

WASHER

33

205-54-76411

COLLAR

34

01010-51230

BOLT

35

156-38-11450

WASHER

36

207-54-31960

COVER

37

01010-51230

BOLT

38

01643-31232

WASHER

39

207-54-31990

COVER

40

207-46-31521

FRAME

40

207-46-31520

FRAME

41

07020-00900

FITTING,GREASE
