Запчасти Komatsu PC300-3 УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

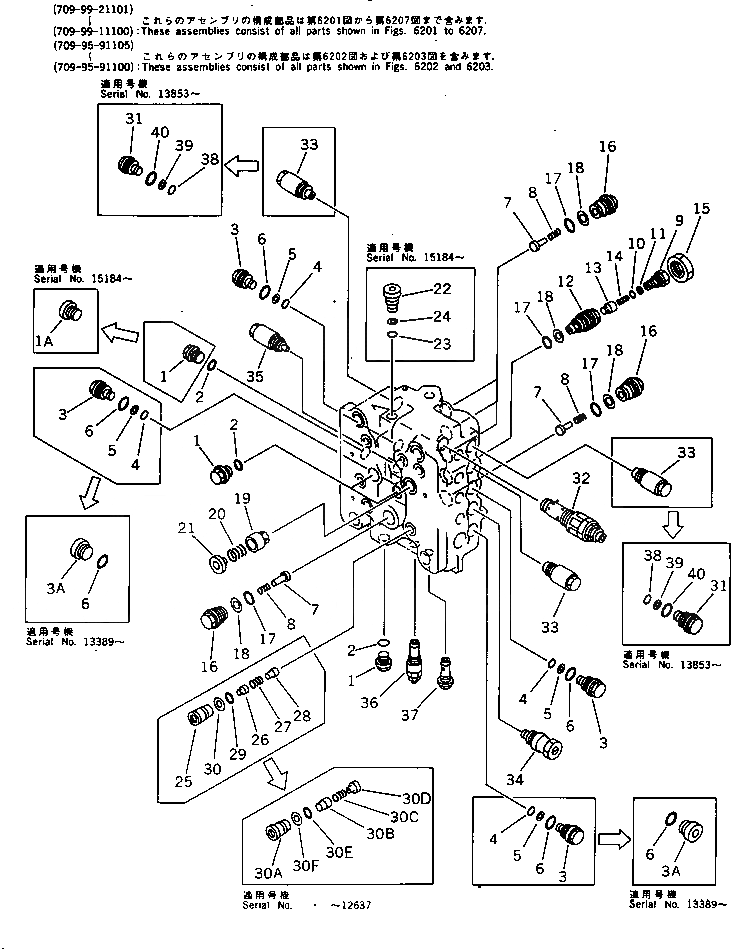

Схема запчастей Komatsu PC300-3 - УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

709-99-21101

CONTROL VALVE ASS'Y

|$1

709-99-21100

CONTROL VALVE ASS'Y

|$2

709-99-11109

CONTROL VALVE ASS'Y

|$3

709-99-11108

CONTROL VALVE ASS'Y

|$4

709-99-11107

CONTROL VALVE ASS'Y

|$5

709-99-11105

CONTROL VALVE ASS'Y

|$6

709-99-11104

CONTROL VALVE ASS'Y

|$7

709-99-11103

CONTROL VALVE ASS'Y

|$8

709-99-11102

CONTROL VALVE ASS'Y

|$9

709-99-11101

CONTROL VALVE ASS'Y

|$10

709-99-11100

CONTROL VALVE ASS'Y

|$11

709-95-91105

VALVE ASS'Y

|$12

709-95-91104

VALVE ASS'Y

|$13

709-95-91102

VALVE ASS'Y

|$14

709-95-00011

VALVE ASS'Y

|$15

709-95-91101

VALVE ASS'Y

|$16

709-95-91100

VALVE ASS'Y

1

700-22-11370

PLUG

1

700-22-11370

PLUG

1A

709-95-91150

PLUG

2

07002-12434

O-RING

3

700-94-11260

PLUG

3

700-94-11260

PLUG

3A

07040-13618

PLUG

4

07000-12018

O-RING

4

07000-12018

O-RING

5

07001-02018

RING

5

07001-02018

RING,BACK-UP

6

07002-03634

O-RING

7

709-94-92810

VALVE

7

709-94-91740

VALVE,CHECK

8

709-94-91750

SPRING

9

709-74-92450

PLUG

10

07000-12010

O-RING

11

07001-02010

RING,BACK-UP

12

709-94-91730

PLUG

13

706-73-70140

VALVE,CHECK

14

706-73-70150

SPRING

15

709-74-92460

NUT

16

709-74-92821

PLUG

16

709-74-92820

PLUG

16

709-75-92230

PLUG

17

700-93-11320

O-RING

18

700-93-11330

RING,BACK-UP

19

709-94-91261

VALVE

19

709-94-91260

VALVE

20

709-94-91270

SPRING

21

709-94-91280

SEAT

22

709-74-91850

PLUG

23

07000-12018

O-RING

24

07001-02018

RING

25

709-94-91290

SLEEVE

26

709-94-91360

VALVE

27

709-94-91410

SPRING

28

709-94-91440

SEAT

29

700-80-61260

O-RING

30

700-80-61430

RING,BACK-UP

|$57

709-90-91400

CHECK VALVE ASS'Y

30A

709-94-91290

SLEEVE

30B

709-90-91210

VALVE

30C

709-90-91220

SPRING

30D

709-90-91230

SEAT

30E

700-80-61260

O-RING

30F

700-80-61430

RING,BACK-UP

31

700-94-11260

PLUG

32

709-90-51100

RELIEF VALVE ASS'Y

33

700-90-74001

VALVE ASS'Y

33

700-90-74001

VALVE ASS'Y

34

709-90-62100

SAFETY VALVE ASS'Y

35

709-90-63201

VALVE ASS'Y,SUCTION AND SAFETY

35

709-90-63200

VALVE ASS'Y,SUCTION AND SAFETY

35

709-90-61200

VALVE ASS'Y,SUCTION AND SAFETY

36

709-90-59103

RELIEF VALVE ASS'Y

36

709-90-59102

RELIEF VALVE ASS'Y

36

709-90-59101

RELIEF VALVE ASS'Y

36

709-90-59100

RELIEF VALVE ASS'Y

37

709-90-91300

ORIFICE ASS'Y

38

07000-12018

O-RING

39

07001-02018

RING,BACK-UP

40

07002-03634

O-RING

Выбрано товаров: 80
