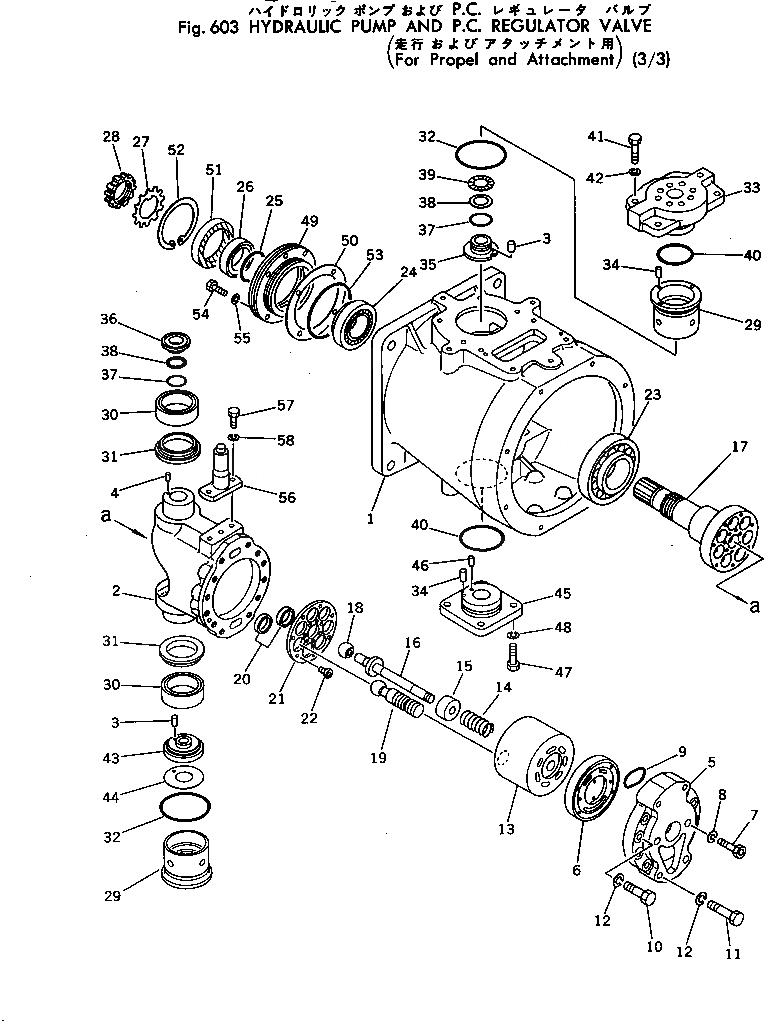

Запчасти Komatsu PC300-2 ГИДР. НАСОС. И P.C.РЕГУЛИР. КЛАПАН (F.P.A.A.) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
706-46-22200
HYDRAULIC PUMP ASS'Y
|$1
706-46-20703
HYDRAULIC PUMP ASS'Y
|$2
706-46-42001
PUMP SUB ASS'Y
1
CASE
2
CASE
3
PIN,DOWEL
4
PIN,DOWEL
5
COVER
6
PLATE
7
BOLT
8
WASHER,SPRING
9
O-RING
10
BOLT
11
BOLT
12
WASHER,SPRING
13
BLOCK
14
SPRING
15
RING
16
SHAFT
17
SHAFT
18
BALL
19
PISTON SUB ASS'Y
20
HOLDER
21
RETAINER
22
SCREW
23
BEARING
24
BEARING
25
O-RING
26
RING
27
WASHER
28
NUT
29
SLEEVE
30
BEARING
31
SPACER
32
O-RING
33
BOSS
34
PIN
35
RING,SEAL
36
RING,SEAL
37
O-RING
38
RING,BACK-UP
39
WASHER
40
O-RING
41
BOLT
42
WASHER,SPRING
43
RING
44
WASHER
45
BOSS
46
PIN,DOWEL
47
BOLT
48
01602-21030
WASHER,SPRING
49
706-46-40360
BOSS
50
706-46-40970
GASKET
51
706-76-40920
SEAL
52
04065-09030
RING
53
07000-02100
O-RING
54
01010-51035
BOLT
55
01602-21030
WASHER,SPRING
56
706-46-40290
PIN
57
01010-51030
BOLT
58
01602-21030
WASHER,SPRING
2K
706-98-00780
SERVICE KIT,(EXCEPT JAPAN)
2K
SHAFT
2K
BEARING
2K
PISTON SUB ASS'Y
2K
RETAINER
2K
HOLDER
2K
BALL
2K
SHAFT
2K
RING
2K
SPRING
2K
BLOCK
2K
SCREW
2K
SEAL
2K
GASKET
2K
BOLT
2K
WASHER
2K
WASHER
2K
O-RING
2K
O-RING
2K
O-RING
2K
O-RING
2K
O-RING
2K
RING
2K
O-RING
2K
O-RING
2K
O-RING
2K
GASKET
2K
O-RING
2K
O-RING
2K
O-RING
2K
O-RING
2K
O-RING
2K
O-RING
2K
O-RING
2K
O-RING
3K
706-98-05040
SERVICE KIT,(EXCEPT JAPAN)
3K
COVER ASS'Y
3K
PLATE
3K
BOLT
3K
WASHER
Выбрано товаров: 101
