Запчасти Komatsu PC300-2 ОПОРНЫЙ КАТОК ХОДОВАЯ

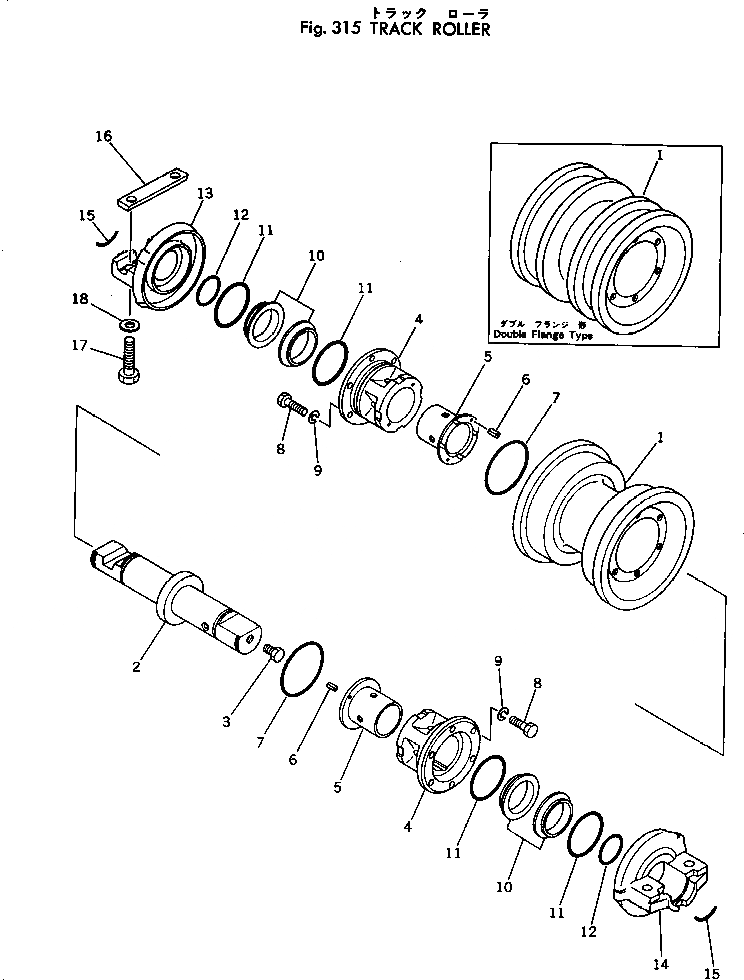

Схема запчастей Komatsu PC300-2 - ОПОРНЫЙ КАТОК ХОДОВАЯ

Артикул

Название

Примечание

Количество

|$0

207-30-00024

TRACK ROLLER ASS'Y,SINGLE

|$1

207-30-00024

TRACK ROLLER ASS'Y,SINGLE

|$2

207-30-00024

TRACK ROLLER ASS'Y,SINGLE

|$3

207-30-00023

TRACK ROLLER ASS'Y,SINGLE

|$4

207-30-00022

TRACK ROLLER ASS'Y,SINGLE

|$5

207-30-00042

TRACK ROLLER ASS'Y,DOUBLE

|$6

207-30-00041

TRACK ROLLER ASS'Y,DOUBLE

|$7

207-30-00040

TRACK ROLLER ASS'Y,DOUBLE

1

141-30-36360

ROLLER,SINGLE

1

141-30-36370

ROLLER,DOUBLE

2

207-30-16211

SHAFT

2

207-30-16210

SHAFT

3

07052-21624

PLUG

|$13

141-30-00592

BUSHING ASS'Y

4

BUSHING,OUTER

5

BUSHING,INNER

6

141-30-36310

PIN

7

07000-05105

O-RING

8

01010-31030

BOLT

9

01602-21030

WASHER,SPRING

|$20

141-30-00616

FLOATING SEAL ASS'Y

|$21

141-30-00615

FLOATING SEAL ASS'Y

10

141-30-00623

SEAL RING ASS'Y

10

141-30-00622

SEAL RING ASS'Y

10

RING,SEAL

10

RING,SEAL

11

141-30-00630

O-RING ASS'Y

11

141-30-36290

O-RING

12

07000-03052

O-RING

12

07000-02060

O-RING

13

141-30-36334

COLLAR,INNER

13

207-30-16220

COLLAR,INNER

14

141-30-36344

COLLAR,OUTER

14

207-30-16230

COLLAR,OUTER

15

141-30-36190

PIN

16

141-30-36180

KEY

17

01010-31865

BOLT

18

01643-31845

WASHER

Выбрано товаров: 38
