Запчасти Komatsu PC300-2 УПРАВЛЯЮЩ. КЛАПАН (F.ЛЕВ.P.A-L.B-H.A.S.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

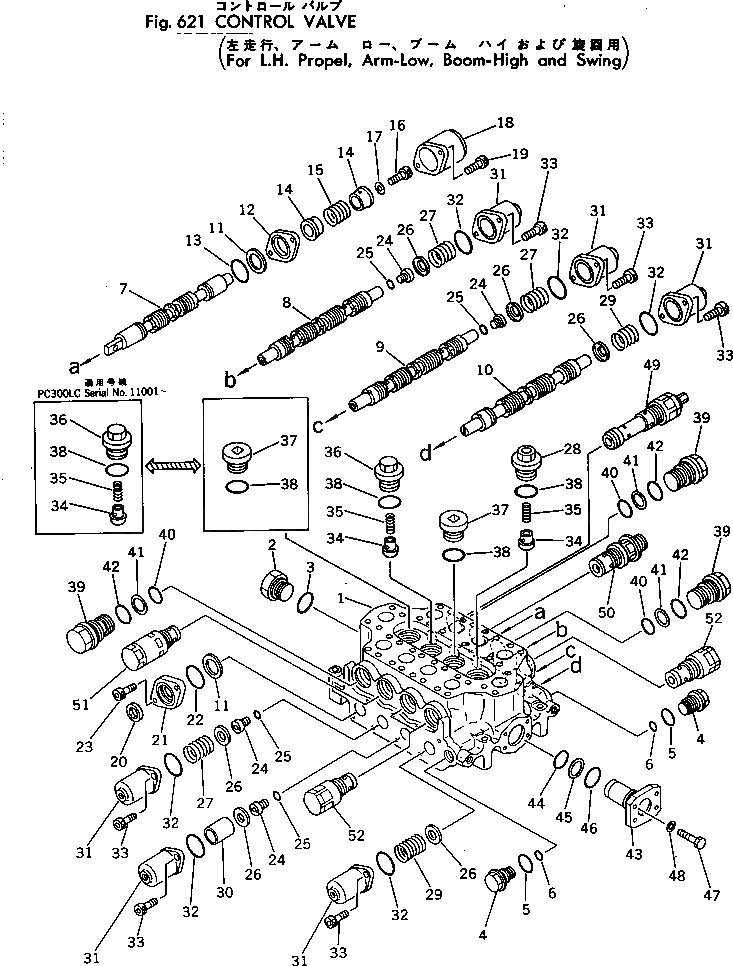

Схема запчастей Komatsu PC300-2 - УПРАВЛЯЮЩ. КЛАПАН (F.ЛЕВ.P.A-L.B-H.A.S.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

700-94-31000

VALVE ASS'Y

|$1

700-94-33000

VALVE ASS'Y

1

BODY,VALVE

2

07040-13618

PLUG

3

07002-13634

O-RING

4

700-22-11360

PLUG

5

07002-02434

O-RING

6

O-RING

7

SPOOL

8

SPOOL

9

SPOOL

10

SPOOL

11

700-93-11140

U-PACKING

12

700-93-11180

PLATE

13

07430-71380

O-RING

14

700-93-11870

RETAINER

15

700-93-11890

SPRING

16

01252-31016

BOLT

17

01643-31032

WASHER

18

700-93-11220

CASE

19

01252-30825

BOLT

20

700-93-11150

SEAL,DUST

21

700-93-11161

PLATE

22

07430-71380

O-RING

23

01252-30820

BOLT

24

700-93-11230

PLUG

25

07002-11423

O-RING

26

700-93-12380

RETAINER

27

700-93-11371

SPRING

28

205-62-67290

PLUG

29

700-94-11450

SPRING

30

700-93-11361

SPACER

31

700-93-12390

CASE

32

07430-71380

O-RING

33

01252-30820

BOLT

34

700-93-11461

VALVE,CHECK

34

700-93-11461

VALVE,CHECK

35

700-93-11471

SPRING

35

700-93-11471

SPRING

36

700-93-11481

PLUG

36

700-93-11481

PLUG

37

700-93-11380

PLUG

37

700-93-11380

PLUG

38

07002-13634

O-RING

39

700-93-11350

PLUG

40

700-93-11320

O-RING

41

700-93-11330

RING,BACK-UP

42

07002-03634

O-RING

43

700-93-12530

FLANGE

44

07000-13032

O-RING

45

07001-03032

RING,BACK-UP

46

07000-03035

O-RING

47

01010-51225

BOLT

48

01640-21223

WASHER

49

700-92-55000

RELIEF VALVE ASS'Y

50

700-90-75000

VALVE ASS'Y,SAFETY

51

700-90-66001

VALVE ASS'Y,SAFETY AND SUCTION

52

700-90-62000

VALVE ASS'Y,SUCTION

|$0

700-94-31000

VALVE ASS'Y

|$1

700-94-33000

VALVE ASS'Y

1

BODY,VALVE

2

07040-13618

PLUG

3

07002-13634

O-RING

4

700-22-11360

PLUG

5

07002-02434

O-RING

6

O-RING

7

SPOOL

8

SPOOL

9

SPOOL

10

SPOOL

11

700-93-11140

U-PACKING

12

700-93-11180

PLATE

13

07430-71380

O-RING

14

700-93-11870

RETAINER

15

700-93-11890

SPRING

16

01252-31016

BOLT

17

01643-31032

WASHER

18

700-93-11220

CASE

19

01252-30825

BOLT

20

700-93-11150

SEAL,DUST

21

700-93-11161

PLATE

22

07430-71380

O-RING

23

01252-30820

BOLT

24

700-93-11230

PLUG

25

07002-11423

O-RING

26

700-93-12380

RETAINER

27

700-93-11371

SPRING

28

205-62-67290

PLUG

29

700-94-11450

SPRING

30

700-93-11361

SPACER

31

700-93-12390

CASE

32

07430-71380

O-RING

33

01252-30820

BOLT

34

700-93-11461

VALVE,CHECK

34

700-93-11461

VALVE,CHECK

35

700-93-11471

SPRING

35

700-93-11471

SPRING

36

700-93-11481

PLUG

36

700-93-11481

PLUG

37

700-93-11380

PLUG

37

700-93-11380

PLUG

38

07002-13634

O-RING

39

700-93-11350

PLUG

40

700-93-11320

O-RING

41

700-93-11330

RING,BACK-UP

42

07002-03634

O-RING

43

700-93-12530

FLANGE

44

07000-13032

O-RING

45

07001-03032

RING,BACK-UP

46

07000-03035

O-RING

47

01010-51225

BOLT

48

01640-21223

WASHER

49

700-92-55000

RELIEF VALVE ASS'Y

50

700-90-75000

VALVE ASS'Y,SAFETY

51

700-90-66001

VALVE ASS'Y,SAFETY AND SUCTION

52

700-90-62000

VALVE ASS'Y,SUCTION

Выбрано товаров: 116
